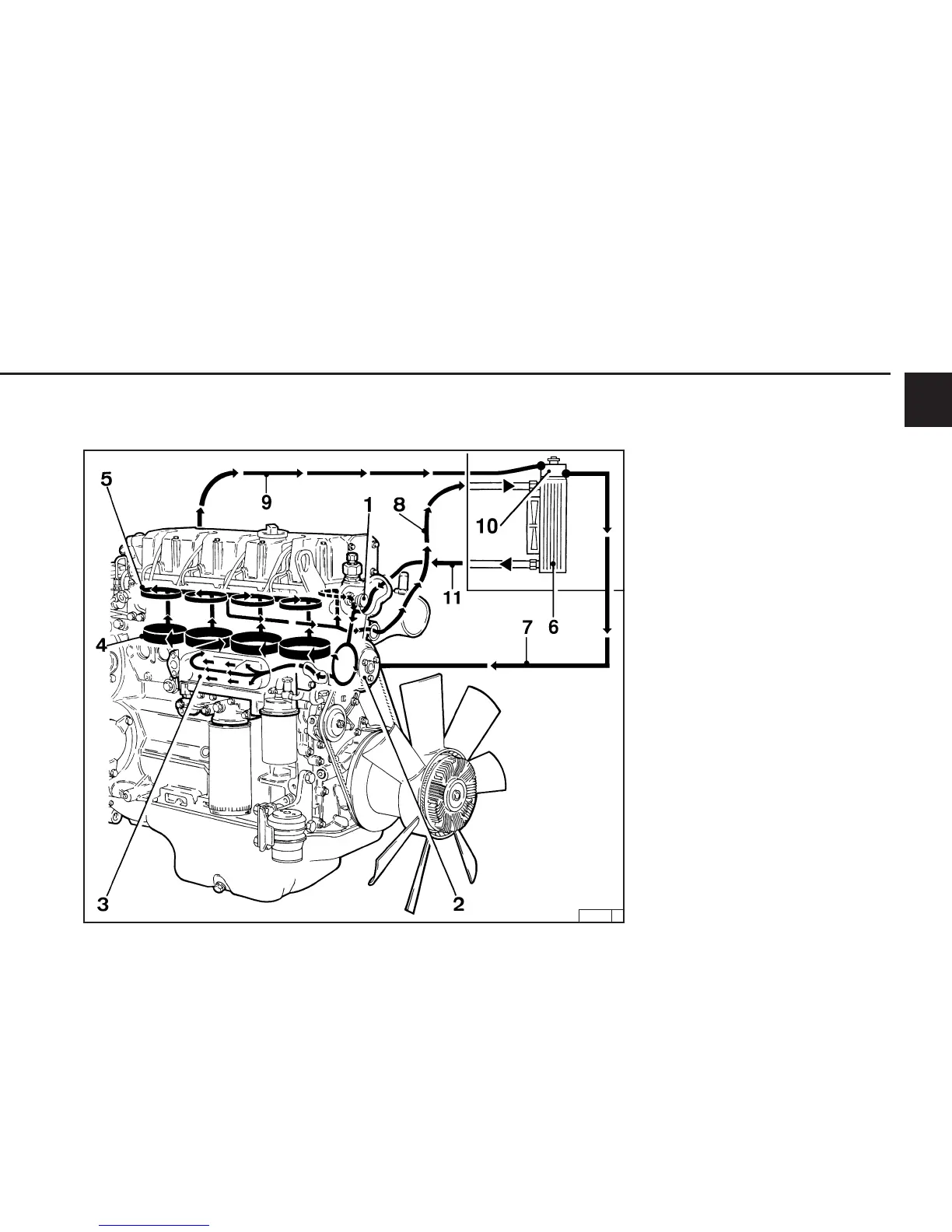

2.5.4 Cooling System Schematic
1013 E
entrance regulation
1 Thermostat housing
2 Coolant pump
3 Lube oil cooler
4 Cylinder cooling
5 Cylinder head cooling
6 Heat exchanger
7 Ventilation line expansion tank - coolant
pump
8 Line from engine to heat exchanger
9 Ventilation line from cylinder head to
expansion tank
10 Expansion tank
11 Line from heat exchanger to thermostat
