Engine Description
2.5 Cooling System
26 338 1

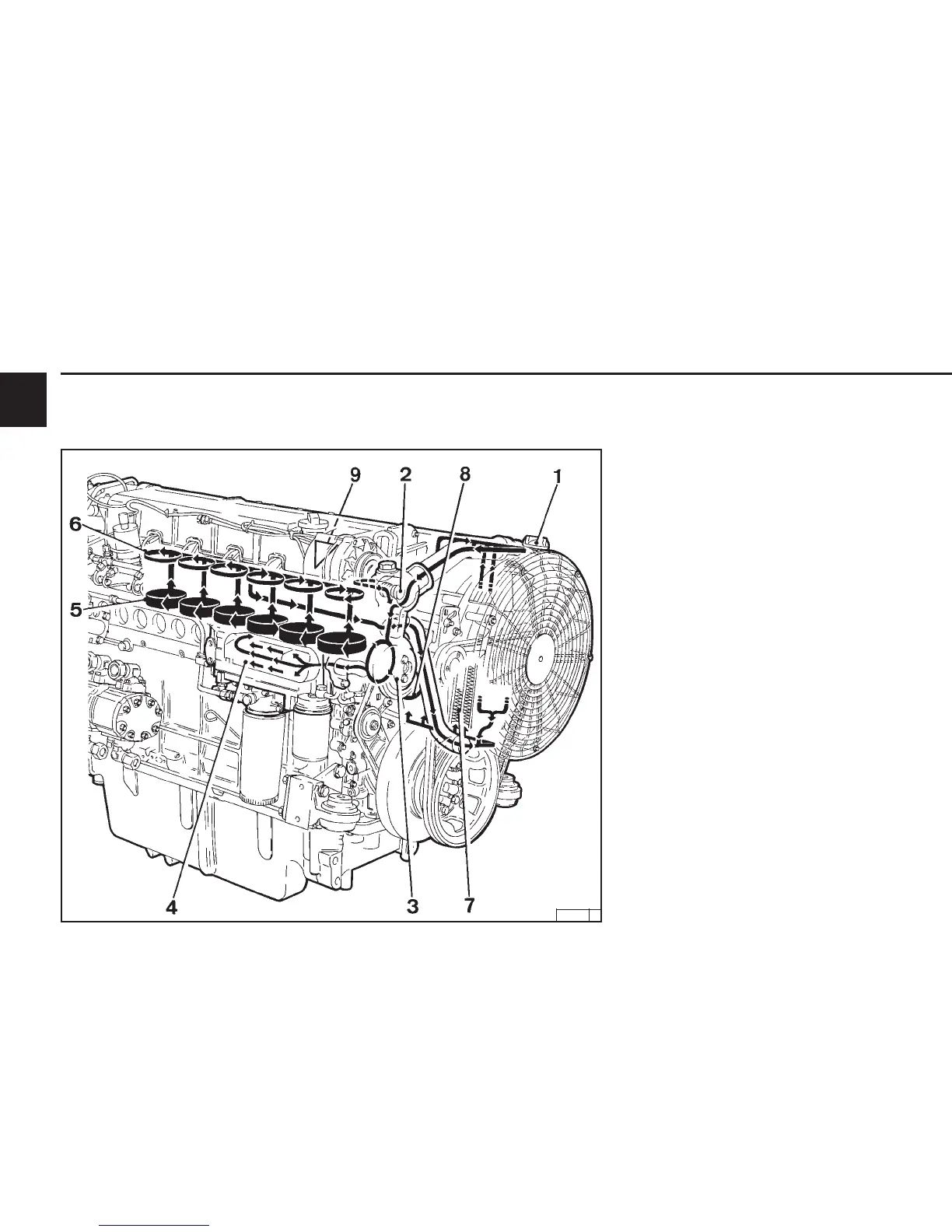

2.5.3 Cooling System Schematic
1013
1 Coolant filler
2 Thermostat housing
3 Coolant pump
4 Lube oil cooler
5 Cylinder cooling
6 Cylinder head cooling
7 Heat exchanger
8 Expansion line coolant pump/expansion
tank
9 Ventilation line from cylinder head to
heat exchanger (expansion tank)
