2

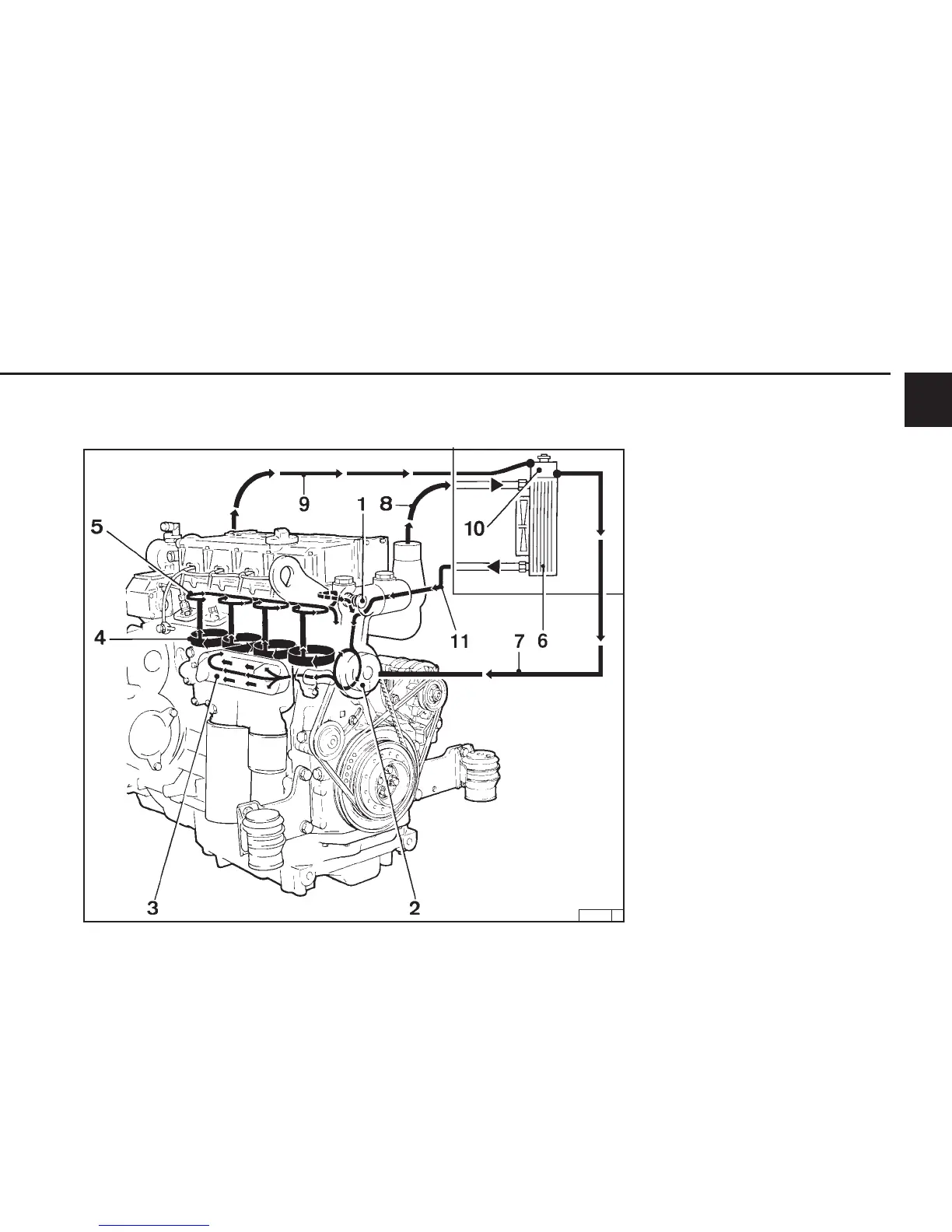

2.5 Cooling System Engine Description
30 816 0
1012 E
escape regulation
1 Thermostat housing
2 Cooling fluid pump
3 Lubricating oil cooler
4 Cylinder cooling
5 Cylinder head cooling
6 Heat exchanger
7 Compensation setting of compensation tank t
o cooling fluid pump
8 Line (Crankcase) from thermostat to heat
exchanger
9 Ventilation line from cylinder head to
compensation tank
10 Compensation tank
11 Line from heat exchanger to cooling fluid pump
