Deutz 1012 - 10 Tensioning; Changing Fan Belt 1013; 11 Tensioning Coolant; Fuel Pump Belts

ENGLISCH • Kapitel 6 • Seite 79
6
© 2002
Check, tension and change
belts only with the engine off.
Refit belt guard, if provided.
6.5.12 Changing Coolant /
Fuel Pump Belts
1013
6.5.10 Tensioning /
Changing Fan Belt
1013
6.5.11 Tensioning Coolant /
Fuel Pump belts
1013
z Slacken off bolts 1 and 2.
– Tensioning:
Insert square wrench in square and pull
in direction of arrow until correct belt
tension is achieved.
– Changing:
Insert square wrench in square and
loosen in opposite direction of arrow.
Tension new belt as described above.
z Tighten bolts 1 and 2.

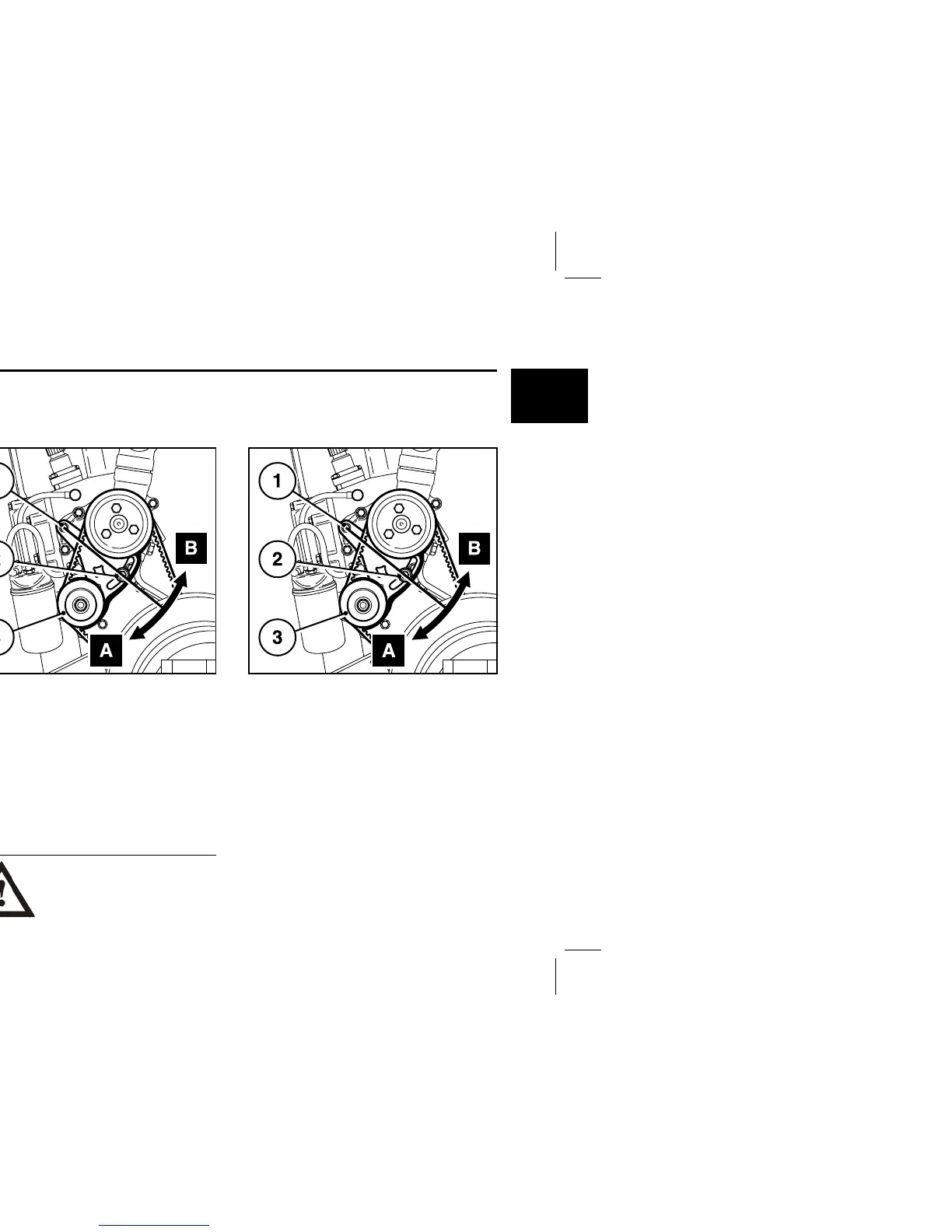

z Slacken off bolts 1 and 2.
z Push fuel pump 3 in direction (A) of arrow
until correct belt tension is achieved.
z Tighten bolts 1 and 2.
z Remove fan / alternator belt as described in
6.5.10 and 6.5.13.
z Slacken off bolts 1 and 2.
z Push fuel pump 3 in direction (B) of arrow.
z Remove and replace belt.
z Push fuel pump in direction (A) of arrow until
correct belt tension is achieved.
z Tighten bolts 1 and 2.
z Reinstall fan / alternator belt and retension as
described in 6.5.10 and 6.5.13.
© 26 345 0 © 26 450 0
© 26 450 0
6.5 Belt Drives Service and Maintenance
