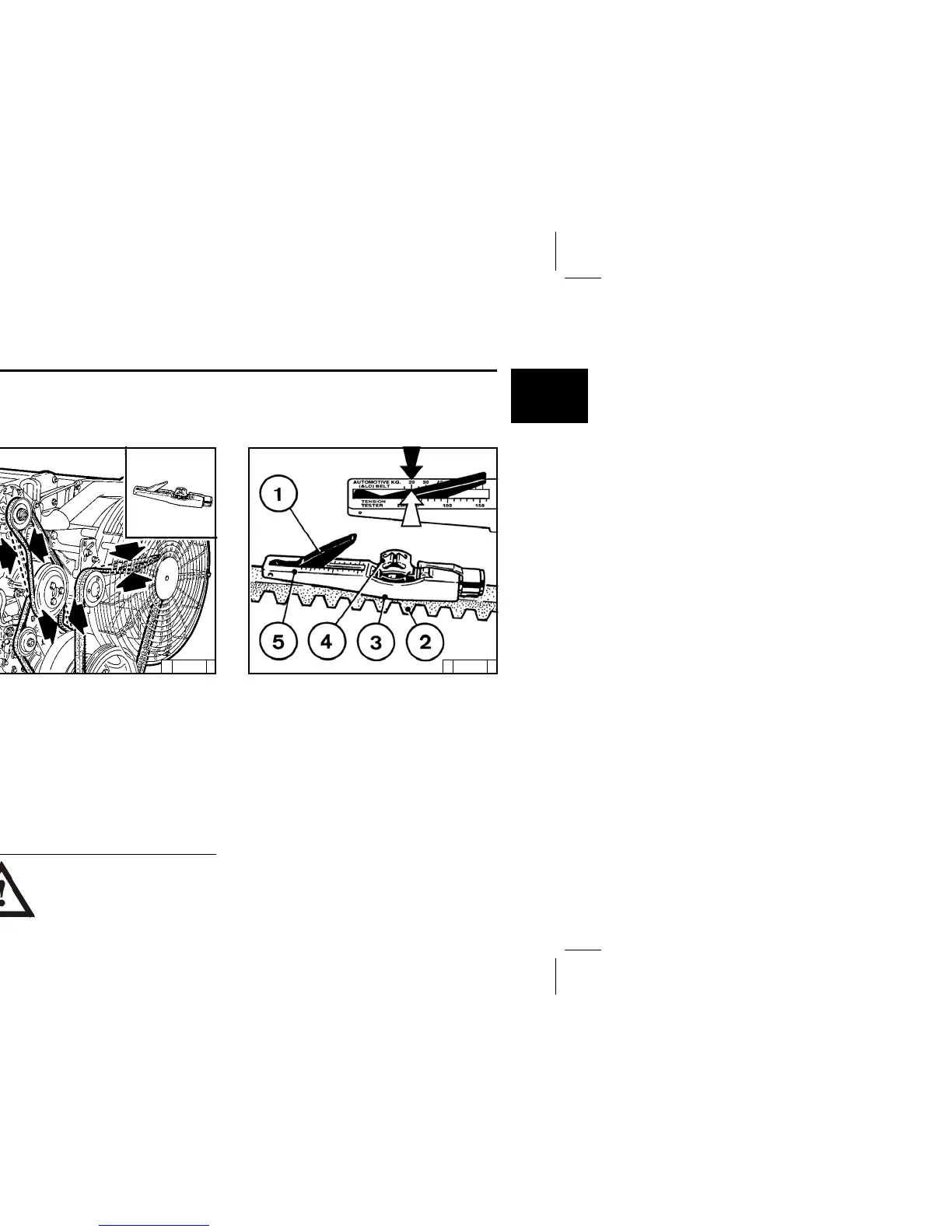

Deutz 1012 - 1012 E

ENGLISCH • Kapitel 6 • Seite 77
6
© 2002
Check, tension and change
belts only with the engine off.
Refit belt guard, if provided.
6.5.5 Changing Coolant /
Fuel Pump Belts
1012
6.5.6 Tensioning Coolant /
Fuel Pump Belts
1012 E
6.5.7 Changing Coolant /
Fuel Pump Belts
1012 E
z Remove fan belt as described in 6.5.3.
z Slacken off bolts 1 and 2.
z Push fuel pump 3 in direction of arrow (B).
z Remove and replace belt.
z Push fuel pump in direction of arrow (A) until
correct belt tension is achieved.
z Tighten bolts 1 and 2.
z Reinstall fan belt and tension as described in
6.5.2.
z Slacken off bolts 1 and 2.
z Push fuel pump 3 in direction of arrow until
correct belt tension is achieved.
z Tighten bolts 1 and 2.
z Slacken off bolts 1 and 2.
z Push fuel pump 3 in direction of arrow.
z Remove and replace belt.
z Push fuel pump in opposite direction of arrow
until correct belt tension is achieved.
z Tighten bolts 1 and 2.
© 26 255 0
© 26 315 0 © 26 261 1
6.5 Belt Drives Service and Maintenance
