2
Engine Description
2.2 Engine Illustrations

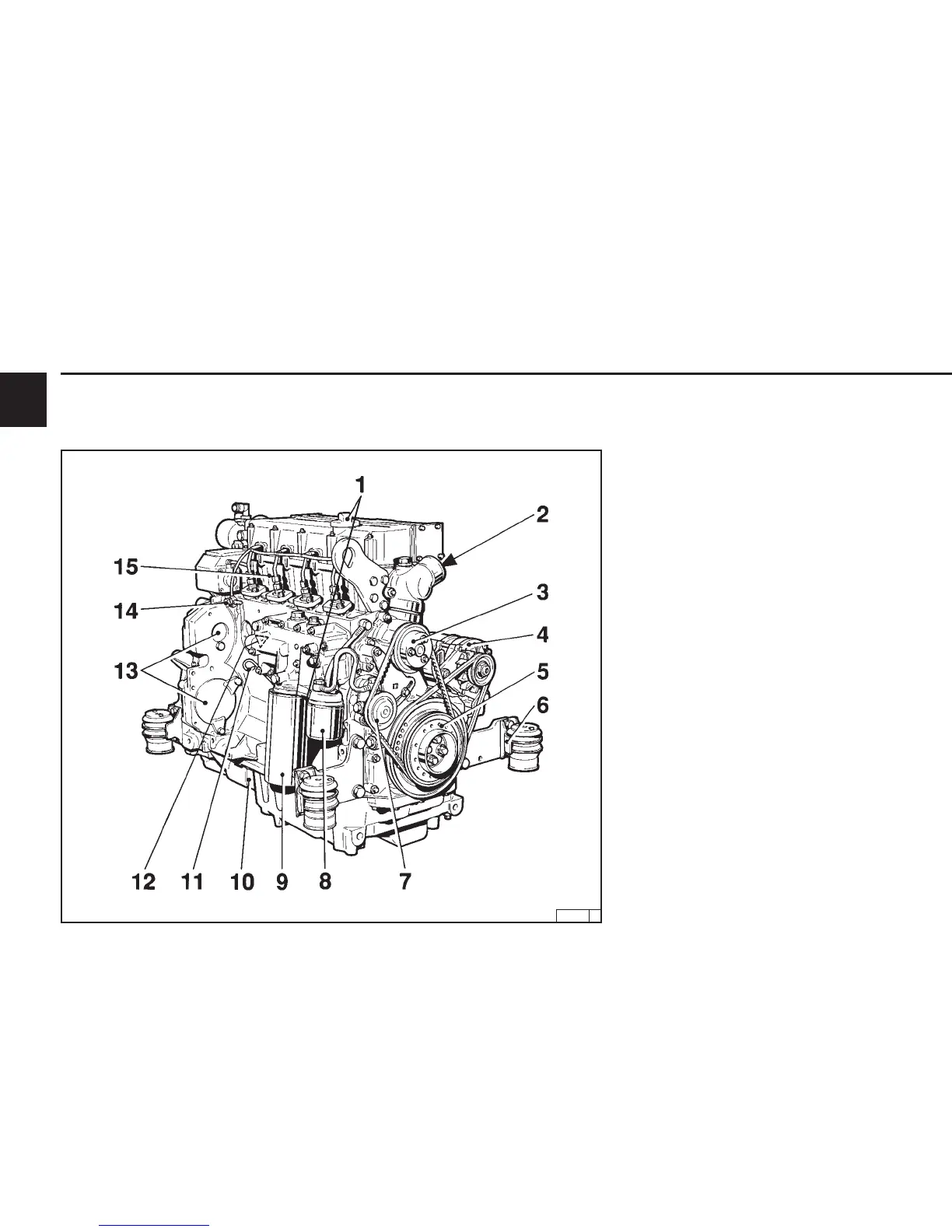

2.2.3 Service Side 1012 E
1 Oil filler (option: between filters)
2 Coolant inlet
3 Coolant pump
4 Alternator
5 Belt pulley
6 Engine mount
7 Fuel pump
8 Fuel filter
9 Lube oil filter
10 Oil pan
11 Dipstick
12 Lube oil cooler
13 Mounting facility for hydraulic pump
14 Back leak fuel pipe with pressure-regulating
valve
15 Cylinder head
26236 0
