2
Engine Description

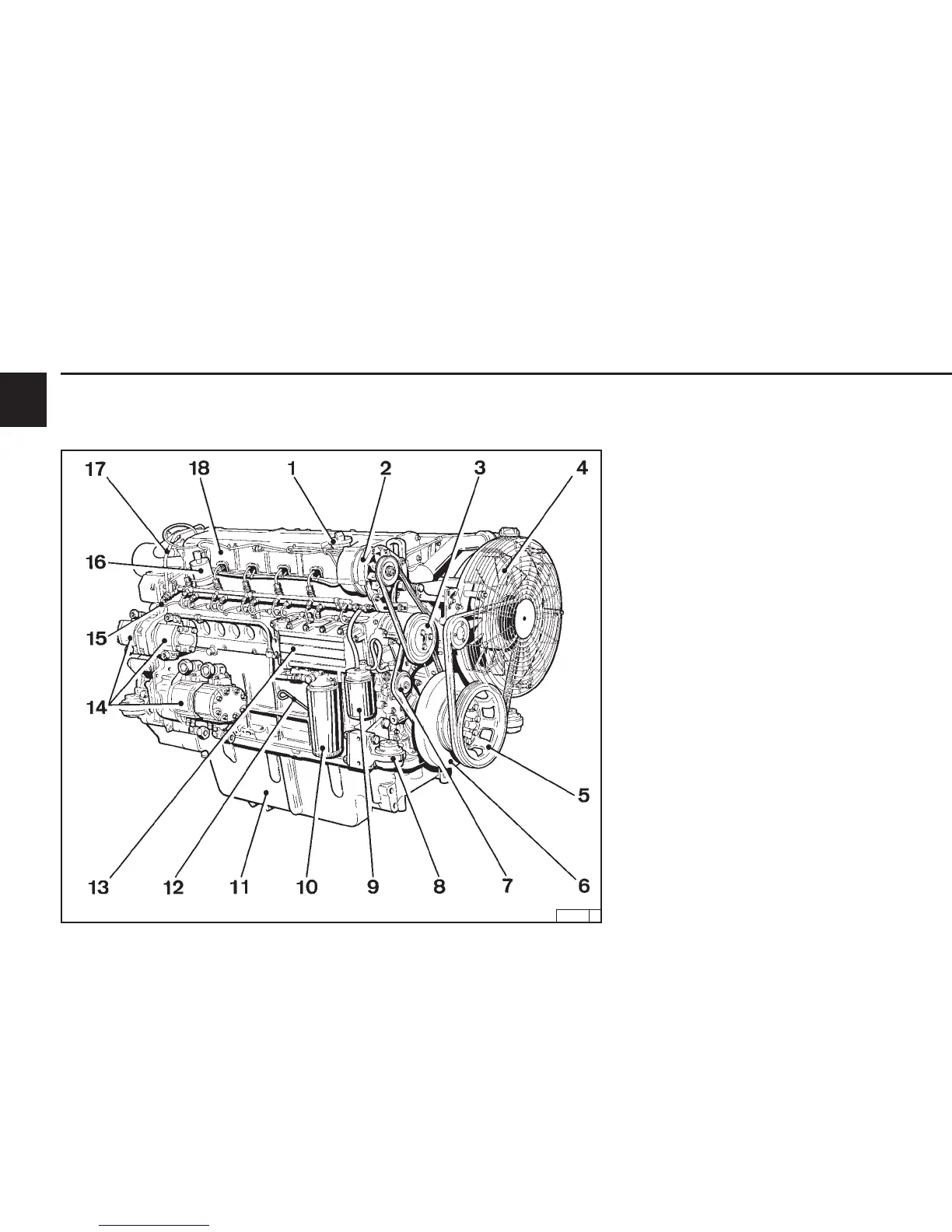

2.2 Engine Illustrations
1 Oil filler (option: between filters)
2 Alternator
3 Coolant pump
4 Fan
5 Belt Pulley
6 Vibration damper
7 Fuel pump
8 Engine mount
9 Fuel filter
10 Lube oil filter
11 Oil pan
12 Dipstick
13 Lube oil cooler
14 Hydraulic pumps (or compressor)
15 Fuel pipe
16 Solenoid
17 Lube oil line to turbocharger
18 Cylinder head
26 333 0
2.2.5 Service Side 1013
