2
Engine Description

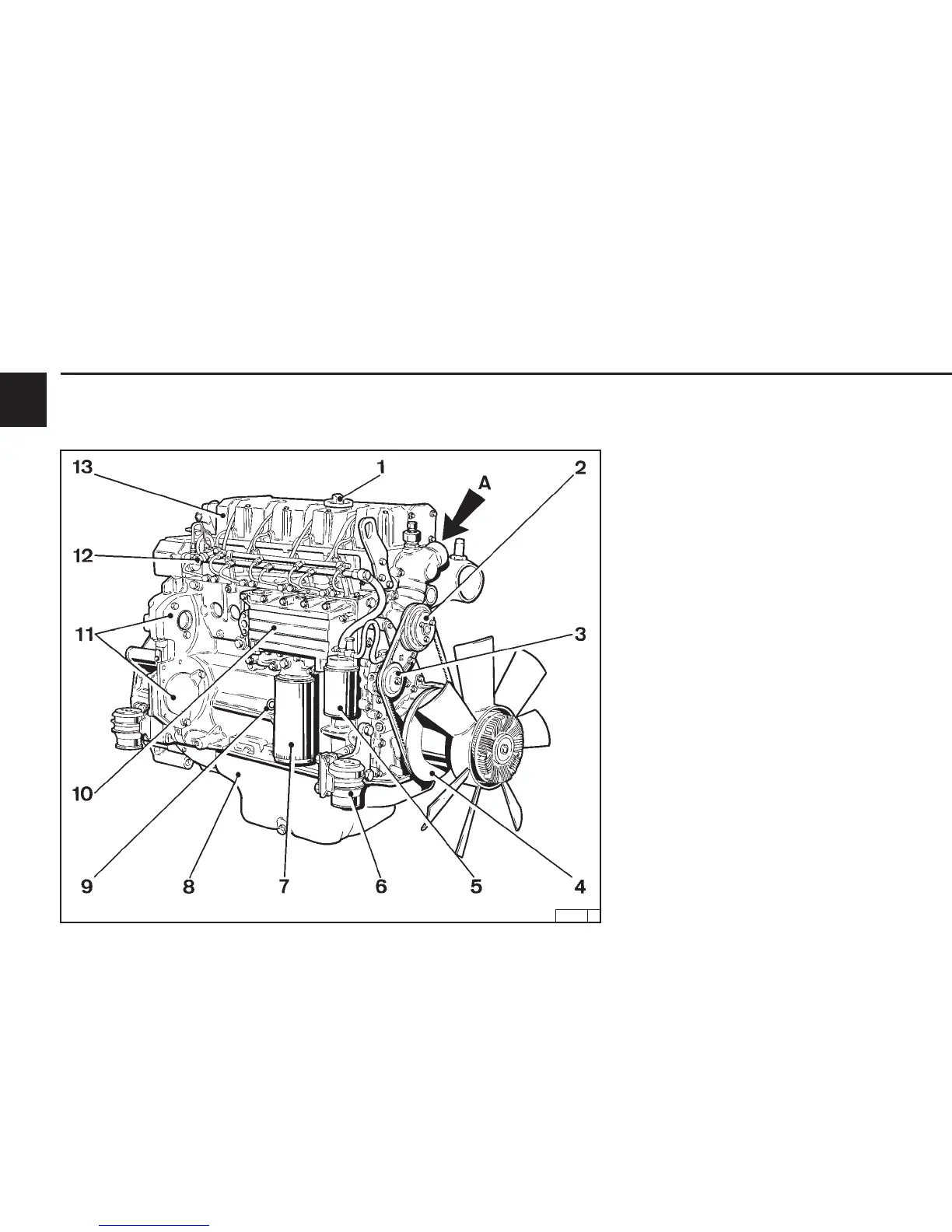

2.2 Engine Illustrations
1 Oil filler
2 Coolant pump
3 Fuel pump
4 Vibration damper
5 Fuel filter
6 Engine mount
7 Lube oil filter
8 Oil pan
9 Dipstick
10 Lube oil cooler
11 Mounting facility for hydraulic pump
12 Back leak fuel pipe with pressure-regulating
valve
13 Cylinder head
A Coolant inlet
2.2.7 Service Side 1013 E
26 336 0
