Engine Description

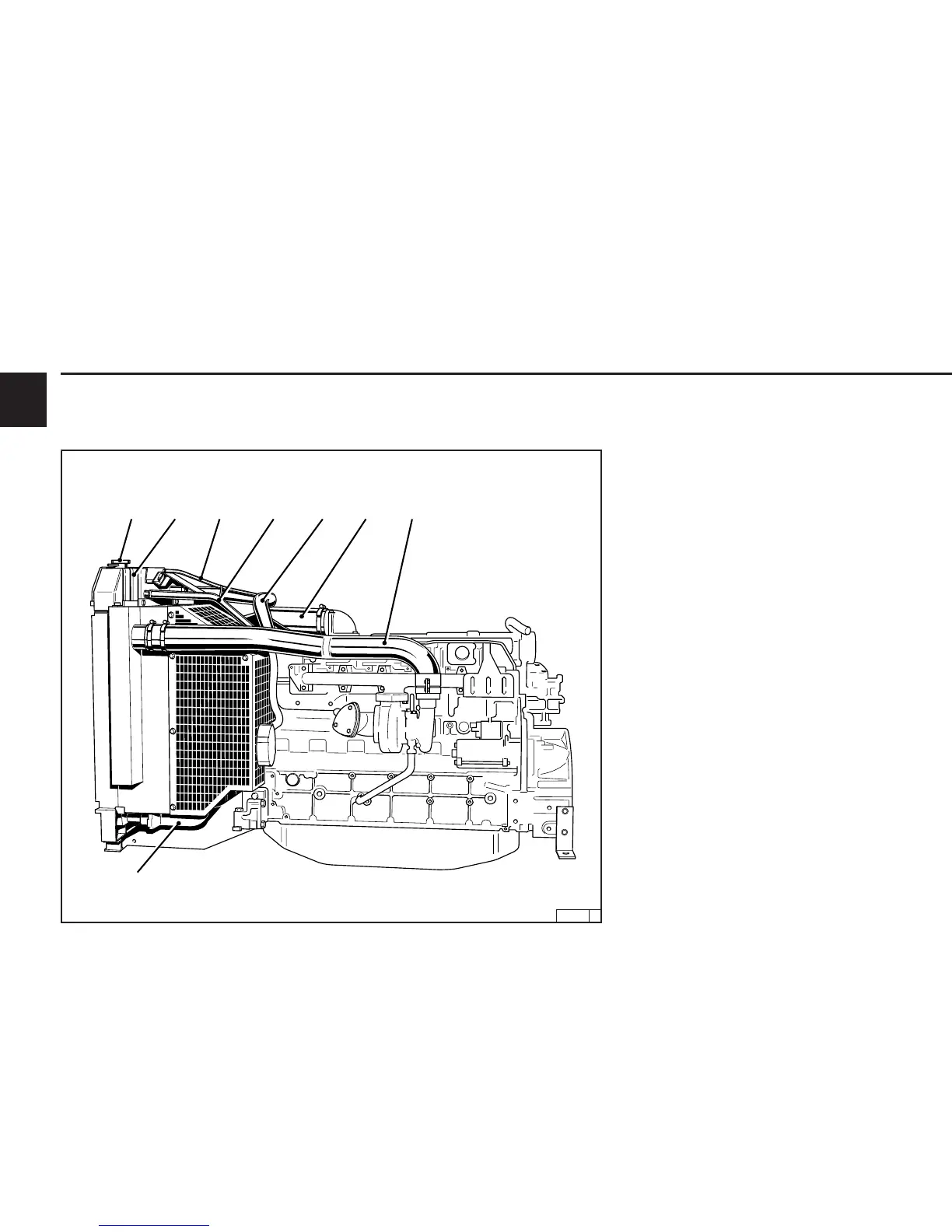

2.2 Engine Illustrations
2.2.11 Starter Side
Unit Engine BF6M 1013 EC
30 087 0
1 Filler neck with cap
2 Expansion tank
3 Vent line from cylinder head to expansion tank
4 Expansion line from expansion tank to coolant
pump
5 Coolant line from crankcase to engine fluid
radiator
6 Charge-air line from charge-air cooler to engine
7 Charge-air line from exhaust turbocharger to
charge-air cooler
8 Coolant line from engine fluid radiator to engine
thermostat
1 32
8
4 5 6 7
