Deutz 1012 - Cooling System Schematics

2

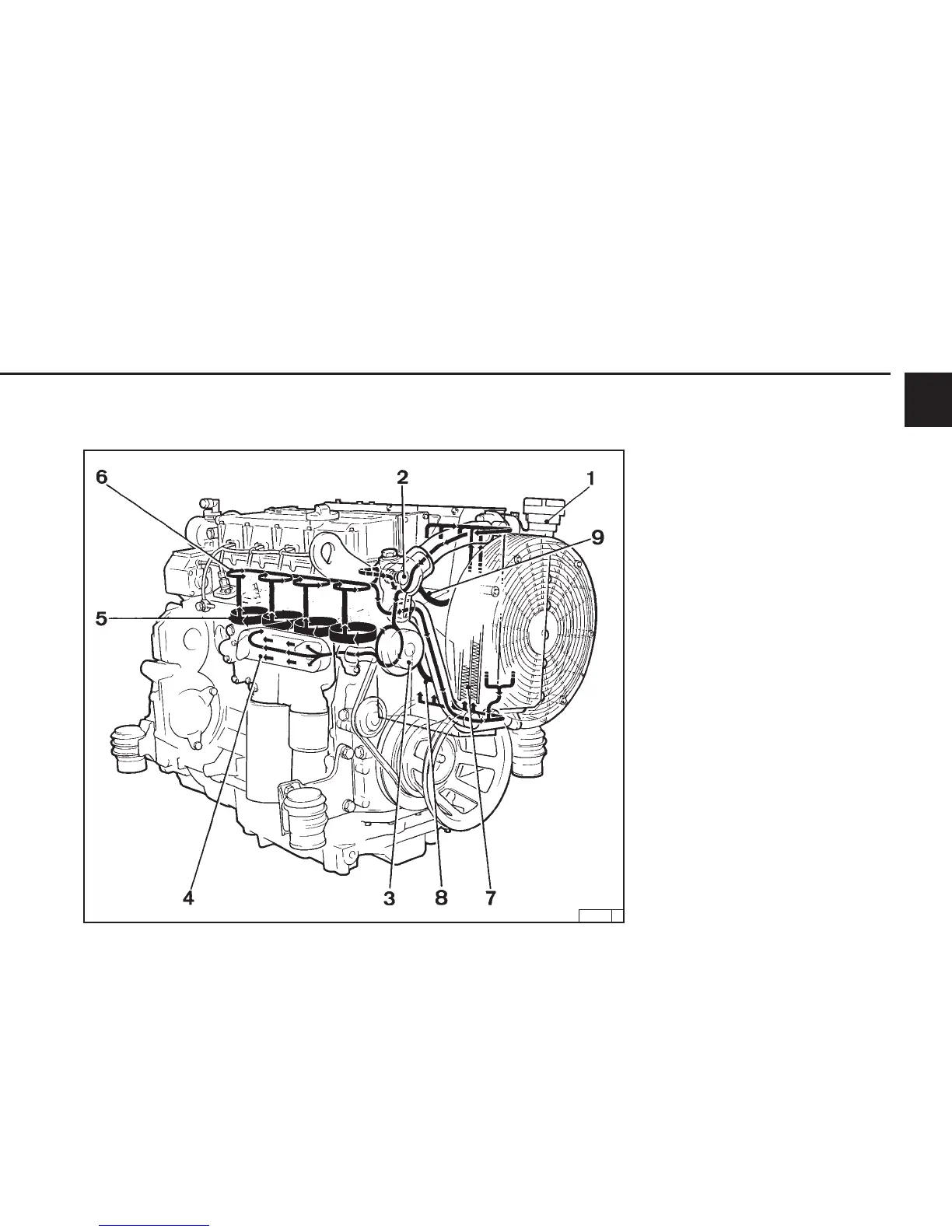

2.5 Cooling System Engine Description
26240 2
1 Coolant filler
2 Thermostat housing
3 Coolant pump
4 Lube oil cooler
5 Cylinder cooling
6 Cylinder head cooling
7 Heat exchanger
8 Return from thermostat to coolant pump
housing
9 Ventilation line from cylinder head to heat
exchanger (expansion tank)
2.5.1 Cooling System Schematic
1012
