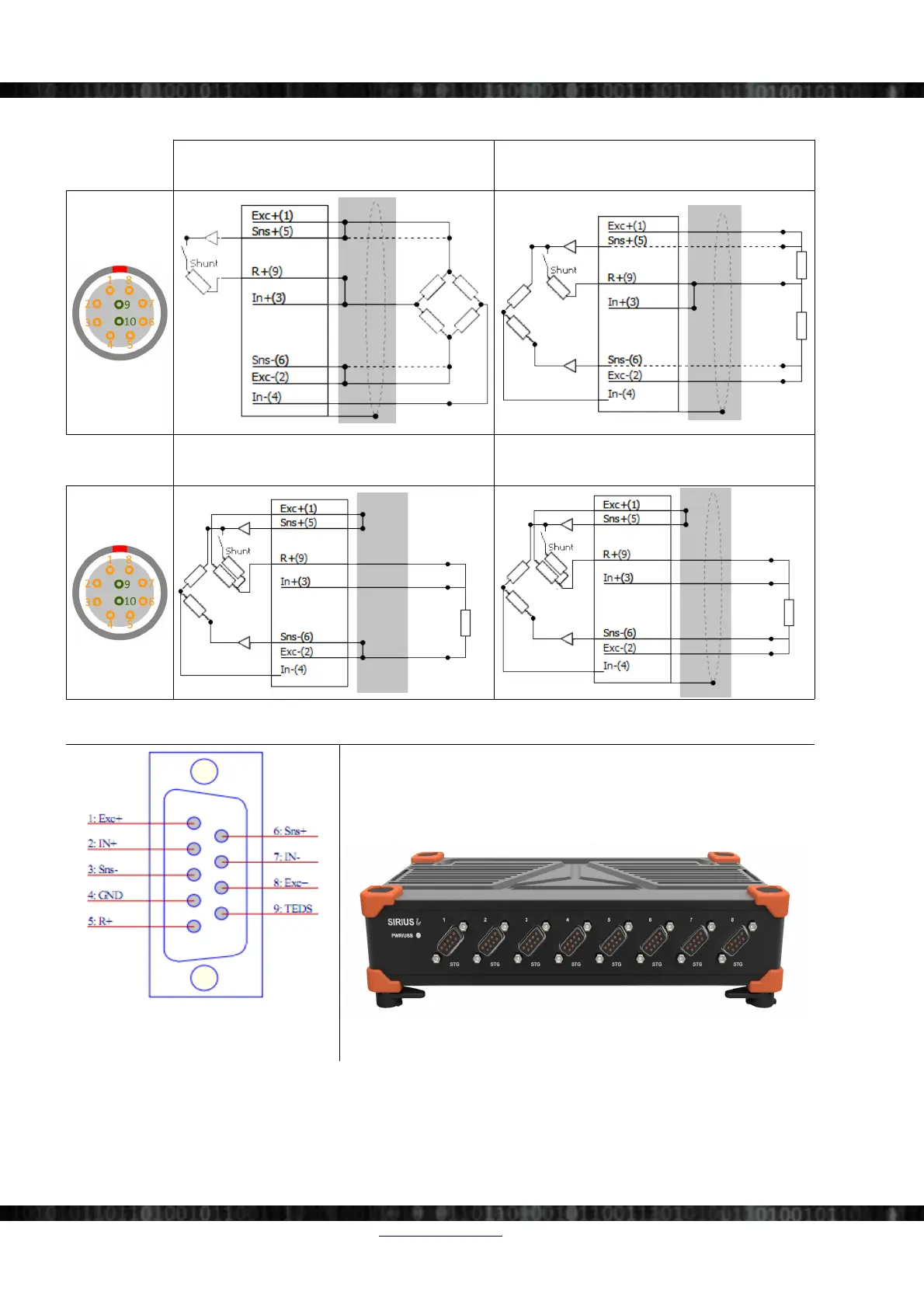

5.13.4.6 STG-L2B10f: Bridge
Full Bridge Half Bridge
Quarter Bridge – 3 wire Quarter Bridge – 4 wire
5.13.5 STG DSUB-9
Illustration 135: SIRIUS-STG pin-out
DSUB-9 Illustration 136: SIRIUS STG8 DSUB9
