Enclosure Overview
4.1.3 Extended Height Enclosure
Some modules may require a higher enclosure, depending on the
connector type: e.g. the STGM+ (see 5.12.2 STGM+ (Counter)
L1B7f on page 77):
The higher enclosures are available for the Single- and for the
Multi Slice version.

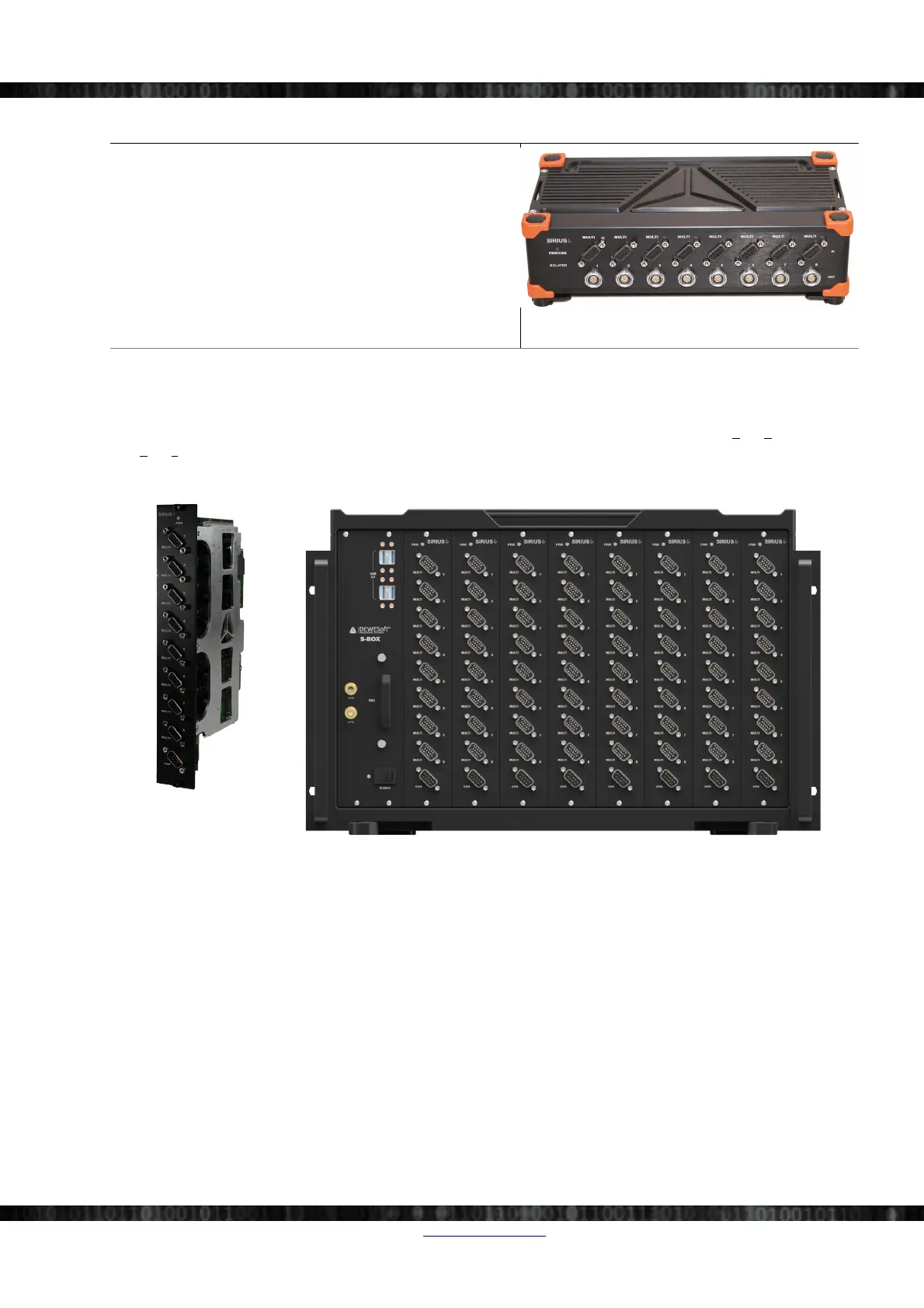

Illustration 46: Extended Height Enclosure
4.1.4 SIRIUS-R8
The complete SIRIUSx amplifier series is also available as modular rack system. All module combinations are possible
(except for the Extended Height Enclosure modules): The Dual-Core series can be mixed with HD (high density) and
HS (high speed) modules. You can even mix isolated and differential slices.
The analogue output option is available only for for the dual core series.
For more detailed information about the system please refer to 4.6 SIRIUS-R8 on page 36.
Doc-Version: 1.4.2 www.dewesoft.com Page 25/166
DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft®
measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation

DEWESOFT SIRIUS Specifications

General

Resolution	24-bit
Isolation	Channel-to-channel and channel-to-ground
Interface	USB
Software	DewesoftX data acquisition software
Bandwidth	DC to 50 kHz (depending on module type)
Humidity	non-condensing
Analog Inputs	Voltage, IEPE, Charge, Current, Strain Gage, Thermocouple, RTD, Resistance, LVDT, Bridge
