DEWESOFT SIRIUS User Manual

SIRIUS®
5.11.2 MULTI DSUB-15

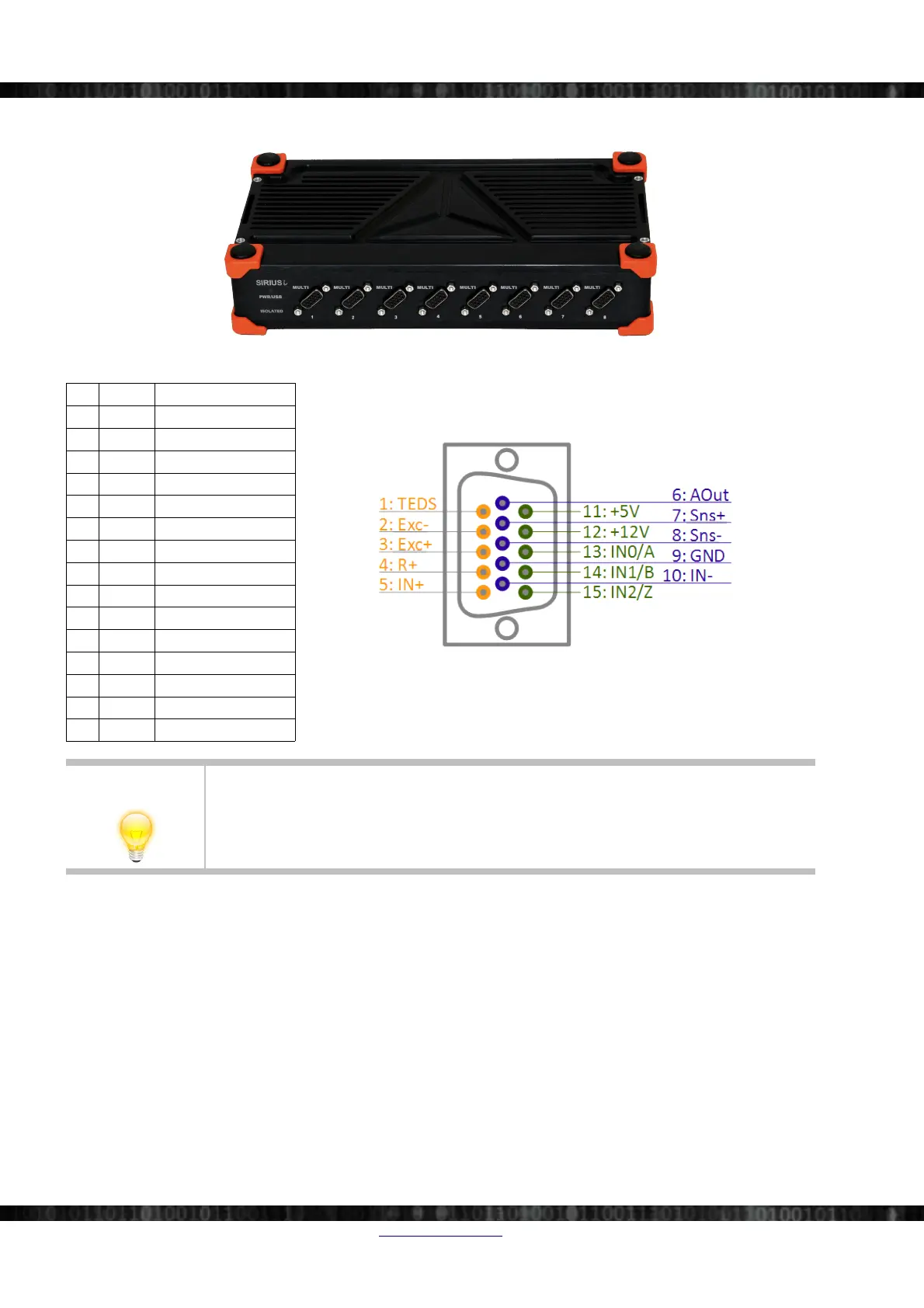

Illustration 117: SIRIUS i 8xMULTI
Pin Name Description
Illustration 118: SIRIUS-MULTI pin-out DSUB-15
1 TEDS TEDS
2 Exc- Excitation -
3 Exc+ Excitation +
4 R+ ¼ Bridge/Shunt
5 In+ Input +
6 Aout Analogue output
7 Sns+ Sense +
8 Sns- Sense -
9 GND Ground
10 In- Input -
11 +5V +5V supply
12 +12V +12V supply
13 IN0/A Counter input IN0/A
14 IN1/B Counter input IN1/B
15 IN2/Z Counter input IN2/Z
HINT
You can use the analogue input, analogue output and counters at the same time.
Page 70/166 www.dewesoft.com Doc-Version: 1.4.2
DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft®
measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation

DEWESOFT SIRIUS Specifications

General

Resolution	24-bit
Isolation	Channel-to-channel and channel-to-ground
Interface	USB
Software	DewesoftX data acquisition software
Bandwidth	DC to 50 kHz (depending on module type)
Humidity	non-condensing
Analog Inputs	Voltage, IEPE, Charge, Current, Strain Gage, Thermocouple, RTD, Resistance, LVDT, Bridge
