DEWESOFT SIRIUS User Manual

Accessories
Host amplifier
SIRIUSx-Multi
SIRIUSx-STGM
SIRIUSx-STG
SIRIUSx-STGMv2
SIRIUSx-HD-STGS
SIRIUSx-HS-STG SIRIUSx-HD-LV
DEWE-43
DS-MINITAUR
Bandwidth
77 kHz 77 kHz 500 kHz 77 kHz 77 kHz
Typical peak to peak noise (Type K)
30 kHz bandwidth
0.44 °C 0.44 °C 0.5 °C 0.44 °C 0.44 °C
100 Hz bandwidth
0.22 °C 0.22 °C 0.25 °C 0.22 °C 0.22 °C
1 Hz bandwidth
0.02 °C 0.02 °C 0.02 °C 0.02 °C 0.02 °C
Accuracy including CJC error
MSI-TH-K for thermocouple type K (DIN EN 60584-1)
Input Range Actual reading Typical accuracy [maximum accuracy]
-200 to 1370 °C
-200 to -100 °C ±7.0 [±12.0] °C ±4.6 [± 9.0] °C ±4.6 [± 9.0] °C ±4.6 [± 9.0] °C ±4.6 [± 9.0] °C
-100 to 0 °C ±2.6 [± 6.6] °C ±2.4 [± 4.6] °C ±2.4 [± 4.6] °C ±2.4 [± 4.6] °C ±2.4 [± 4.6] °C
0 to 500 °C ±2.0 [± 5.5] °C ±1.8 [± 3.5] °C ±1.8 [± 3.5] °C ±1.9 [± 3.5] °C ±1.9 [± 3.5] °C
500 to 1000 °C ±2.1 [± 6.1] °C ±2.1 [± 4.1] °C ±2.1 [± 4.1] °C ±2.5 [± 4.1] °C ±2.5 [± 4.1] °C
1000 to 1370 °C ±3.0 [± 7.0] °C ±2.5 [± 5.0] °C ±2.5 [± 5.0] °C ±3.0 [± 5.0] °C ±3.0 [± 5.0] °C
MSI-TH-j for thermocouple type j (DIN EN 60584-1)
Input Range
-200 to 1370 °C
Actual reading Typical accuracy [maximum accuracy]
-200 to -100 °C ±4.0 [± 9.0] °C ±4.0 [± 7.0] °C ±4.0 [± 7.0] °C ±4.0 [± 7.0] °C ±4.0 [± 7.0] °C
-100 to 0 °C ±2.0 [± 5.7] °C ±1.7 [± 3.7] °C ±1.7 [± 3.7] °C ±2.0 [± 3.7] °C ±2.0 [± 3.7] °C
0 to 300 °C ±1.6 [± 5.0] °C ±1.6 [± 3.0] °C ±1.6 [± 3.0] °C ±1.6 [± 3.0] °C ±1.6 [± 3.0] °C
300 to 1000 °C ±2.0 [± 5.2] °C ±1.8 [± 3.2] °C ±1.8 [± 3.2] °C ±2.0 [± 3.2] °C ±2.0 [± 3.2] °C
MSI-TH-T for thermocouple type T (DIN EN 60584-1)
Input Range
-270 to 400 °C
Actual reading Typical accuracy [maximum accuracy]
-250 to -100 °C ±7.0 [±25.0] °C ±7.0 [±19.0] °C ±7.0 [±19.0] °C ±7.0 [±19.0] °C ±7.0 [±19.0] °C
-100 to 0 °C ±1.8 [± 7.0] °C ±1.8 [± 5.0] °C ±1.8 [± 5.0] °C ±1.8 [± 5.0] °C ±1.8 [± 5.0] °C
0 to 100 °C ±1.3 [± 5.6] °C ±1.3 [± 3.6] °C ±1.3 [± 3.6] °C ±1.3 [± 3.6] °C ±1.3 [± 3.6] °C
100 to 400 °C ±1.0 [± 5.0] °C ±1.0 [± 3.0] °C ±1.0 [± 3.0] °C ±1.0 [± 3.0] °C ±1.0 [± 3.0] °C
MSI-TH-C for thermocouple type C (ASTM E988-96)
Input Range
-270 to 400 °C
Actual reading Typical accuracy [maximum accuracy]
0 to 1000 °C ±3.0 [±12.0] °C ±3.0 [± 8.0] °C ±3.0 [± 8.0] °C ±3.0 [± 8.0] °C ±3.0 [± 8.0] °C
1000 to 1600 °C ±4.0 [±11.6] °C ±4.0 [± 8.6] °C ±4.0 [± 8.6] °C ±4.0 [± 8.6] °C ±4.0 [± 8.6] °C
1600 to 2300 °C ±6.7 [±19.0] °C ±6.7 [±14.0] °C ±6.7 [±14.0] °C ±6.7 [±14.0] °C ±6.7 [±14.0] °C

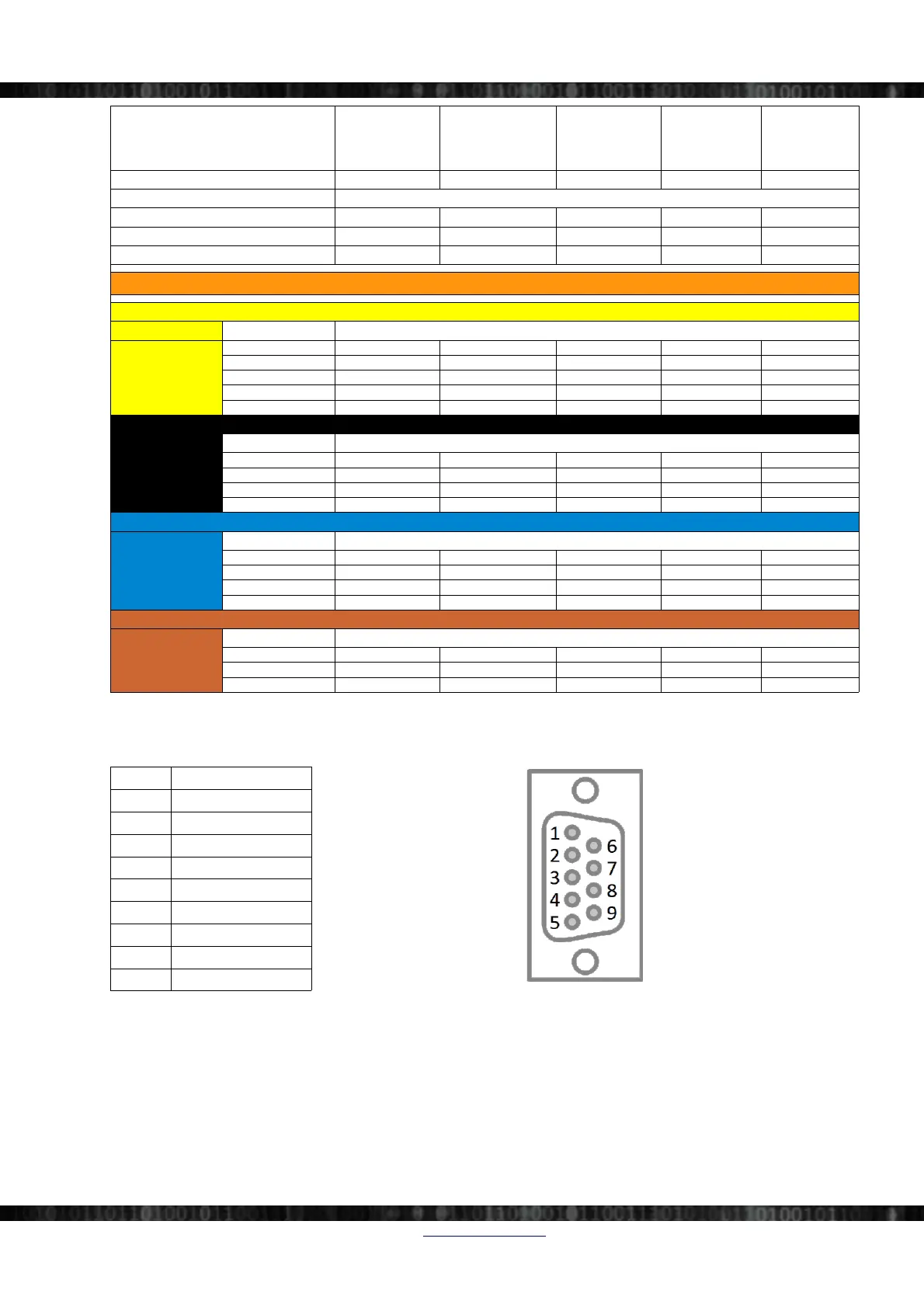

Table 38: MSI-TH-x Accuracy
7.1.3.2 Pin-out
Pin Description
Illustration 191:MSI-TH- x pin-out
1 Excitation+
2 Input +
3 Sense-
4 Ground
5 n.c.
6 Sense+
7 Input-
8 Excitation-
9 TEDS
Doc-Version: 1.4.2 www.dewesoft.com Page 139/166
