SIRIUS®
5.16.2 HD-STGS

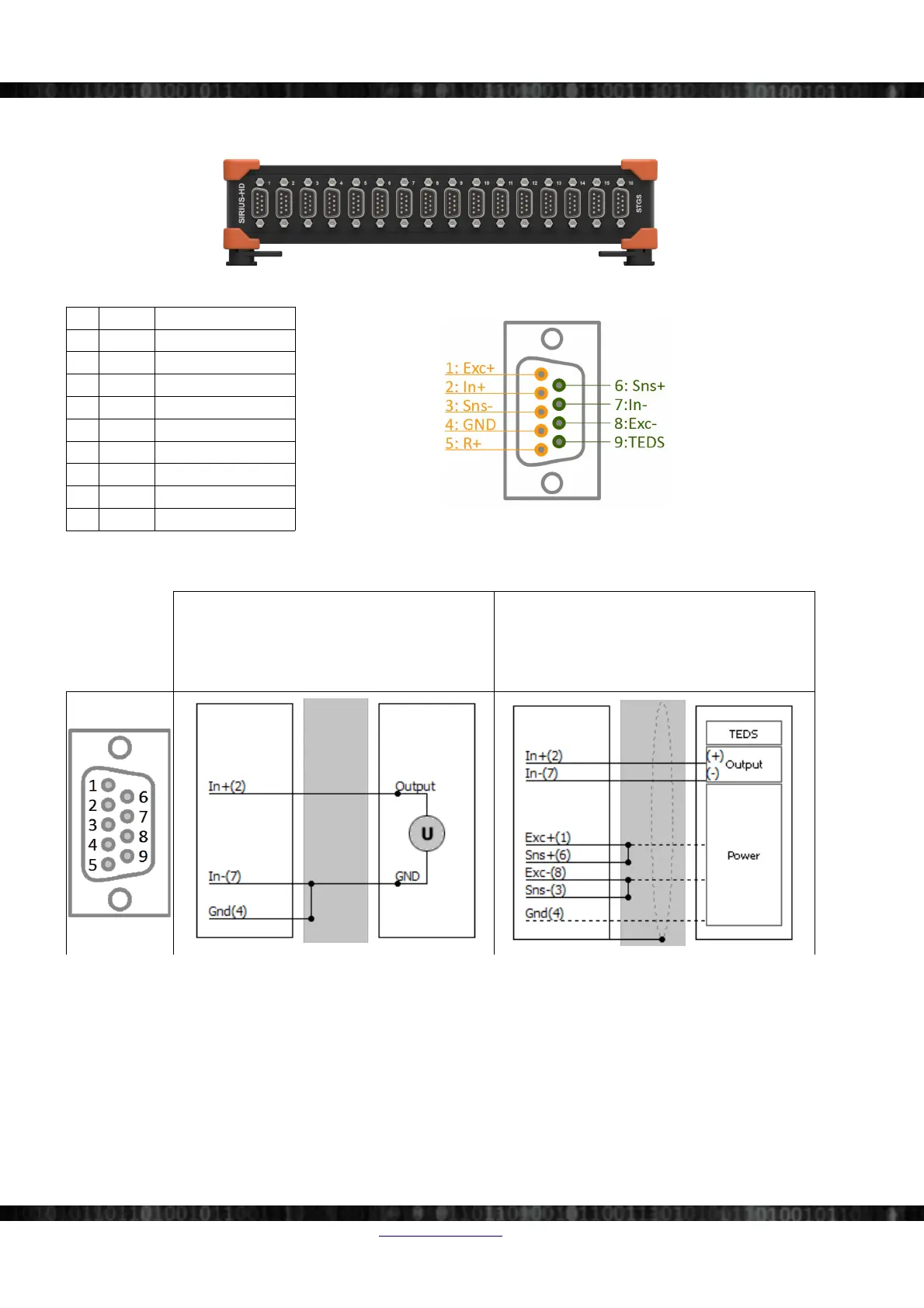

Illustration 145: HD-STGS with 16 DSUB-9 connectors
Pin Name Description
Illustration 146: SIRIUS-HD-STGS pin-out
1 Exc+ Excitation +
2 In+ Input +
3 Sns- Sense -
4 GND Ground
5 R+ ¼ Bridge/Shunt
6 Sns+ Sense +
7 In- Input -
8 Exc- Excitation -
9 TEDS TEDS
5.16.2.1 HD-STGS: Voltage
Voltage - Single Ended
Voltage – Differential
Use only when the sensor is powered by the
excitation voltage of the module.
Page 104/166 www.dewesoft.com Doc-Version: 1.4.2
