DEWESOFT SIRIUS User Manual

SIRIUS® Measurement Modules
5.11.3 MULTI-L2B16f
Pin Name Description

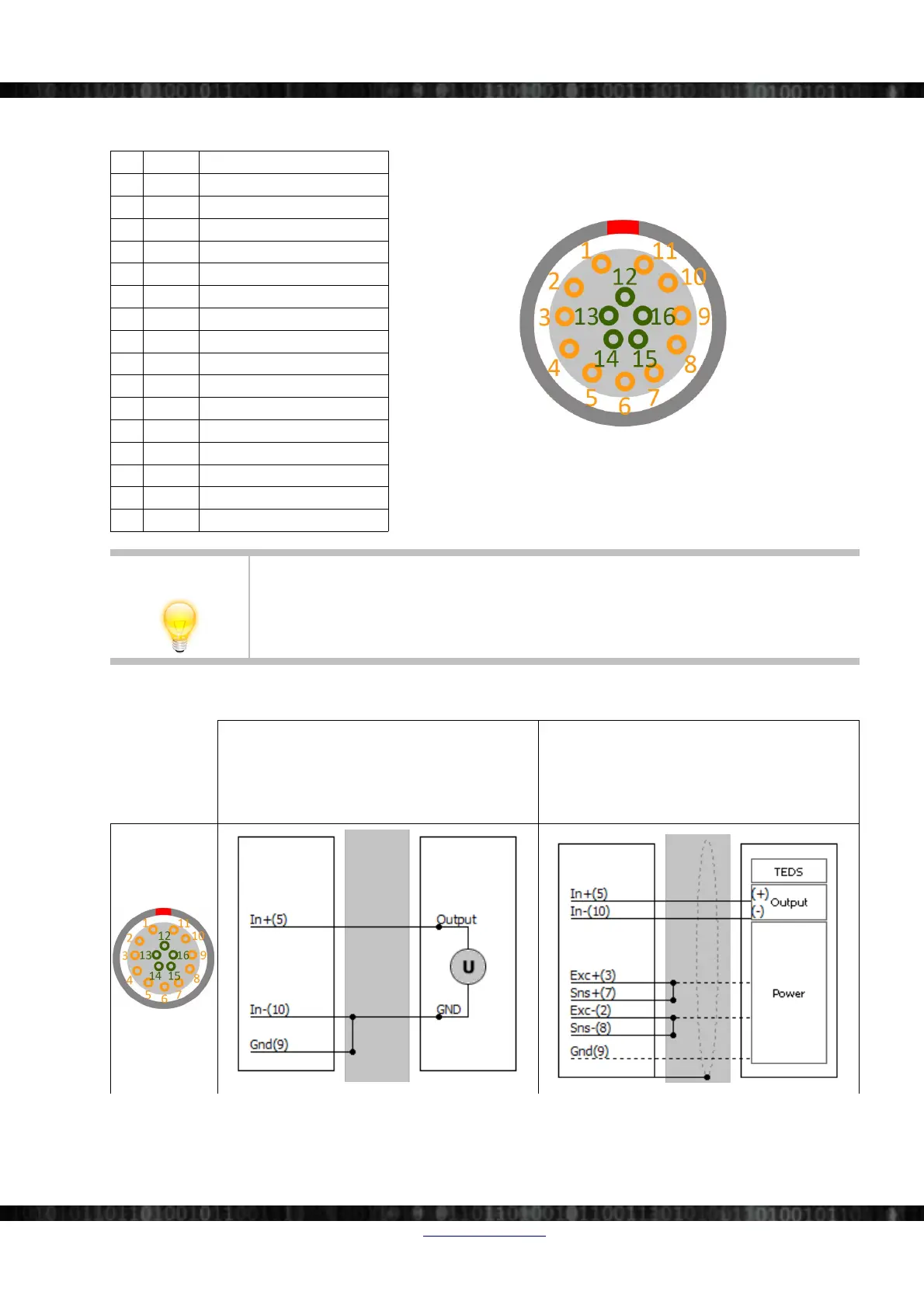

Illustration 119: SIRIUS-MULTI-L2B16F pin-out
1 TEDS TEDS
2 Exc+ Excitation +
3 Exc- Excitation -
4 R+ ¼ Bridge/Shunt
5 In+ Input +
6 Aout Analogue output
7 Sns+ Sense +
8 Sns- Sense -
9 GND Ground
10 In- Input -
11 +5V +5V (max. 100mA) supply
12 +14V5 +14.5V (max. 50mA) supply
13 IN0/A Counter input IN0/A
14 IN1/B Counter input IN1/B
15 IN2/Z Counter input IN2/Z
16 -14V5 -14.5V (max. 50mA) supply
HINT
You can use the analogue input, analogue output and counters at the same time.
5.11.3.1 MULTI-L2B16f: Voltage
Voltage - Single Ended
Voltage – Differential
Use only when the sensor is powered by the
excitation voltage of the module.
Doc-Version: 1.4.2 www.dewesoft.com Page 73/166
DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft®
measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation

DEWESOFT SIRIUS Specifications

General

Resolution	24-bit
Isolation	Channel-to-channel and channel-to-ground
Interface	USB
Software	DewesoftX data acquisition software
Bandwidth	DC to 50 kHz (depending on module type)
Humidity	non-condensing
Analog Inputs	Voltage, IEPE, Charge, Current, Strain Gage, Thermocouple, RTD, Resistance, LVDT, Bridge
