DEWESOFT SIRIUS User Manual

Enclosure Overview
4.3.2 Front side

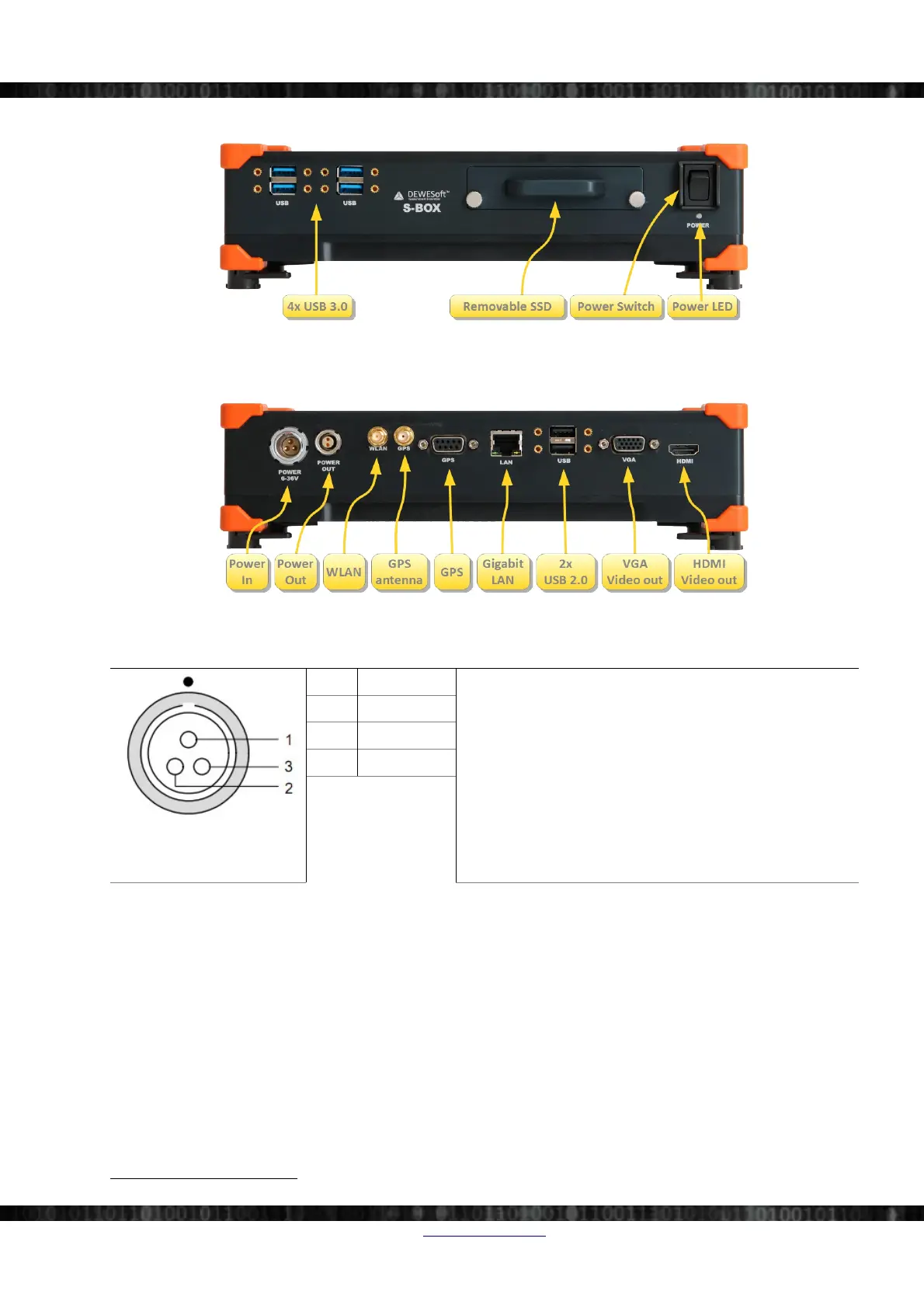

Illustration 57: SIRIUS-SBOX2: Connectors at the front side
4.3.3 Rear side
Illustration 58: SIRIUS-SBOX2: Connectors at the rear side
4.3.3.1 Power connector
Illustration 59: Power
Connector
Pin Name L2B3f
Power connector (on the S-BOX): ECG.2B.303.CLV
Mating connector (for the cable): FGJ.2B.303.CLAD92
To power the system on, press the Power switch OR apply a
voltage between 3 and 30V to Remote-On pin
To power off the system press the Power switch or reduce the
voltage on Remote-On below 0.5V for more than one second.
1 V+
2 GND
3 Remote-On
2
2 If not available then use pin 6 of the GPS connector
Doc-Version: 1.4.2 www.dewesoft.com Page 31/166
DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft®
measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation

DEWESOFT SIRIUS Specifications

General

Resolution	24-bit
Isolation	Channel-to-channel and channel-to-ground
Interface	USB
Software	DewesoftX data acquisition software
Bandwidth	DC to 50 kHz (depending on module type)
Humidity	non-condensing
Analog Inputs	Voltage, IEPE, Charge, Current, Strain Gage, Thermocouple, RTD, Resistance, LVDT, Bridge
