DEWESOFT SIRIUS User Manual

SIRIUS® Measurement Modules

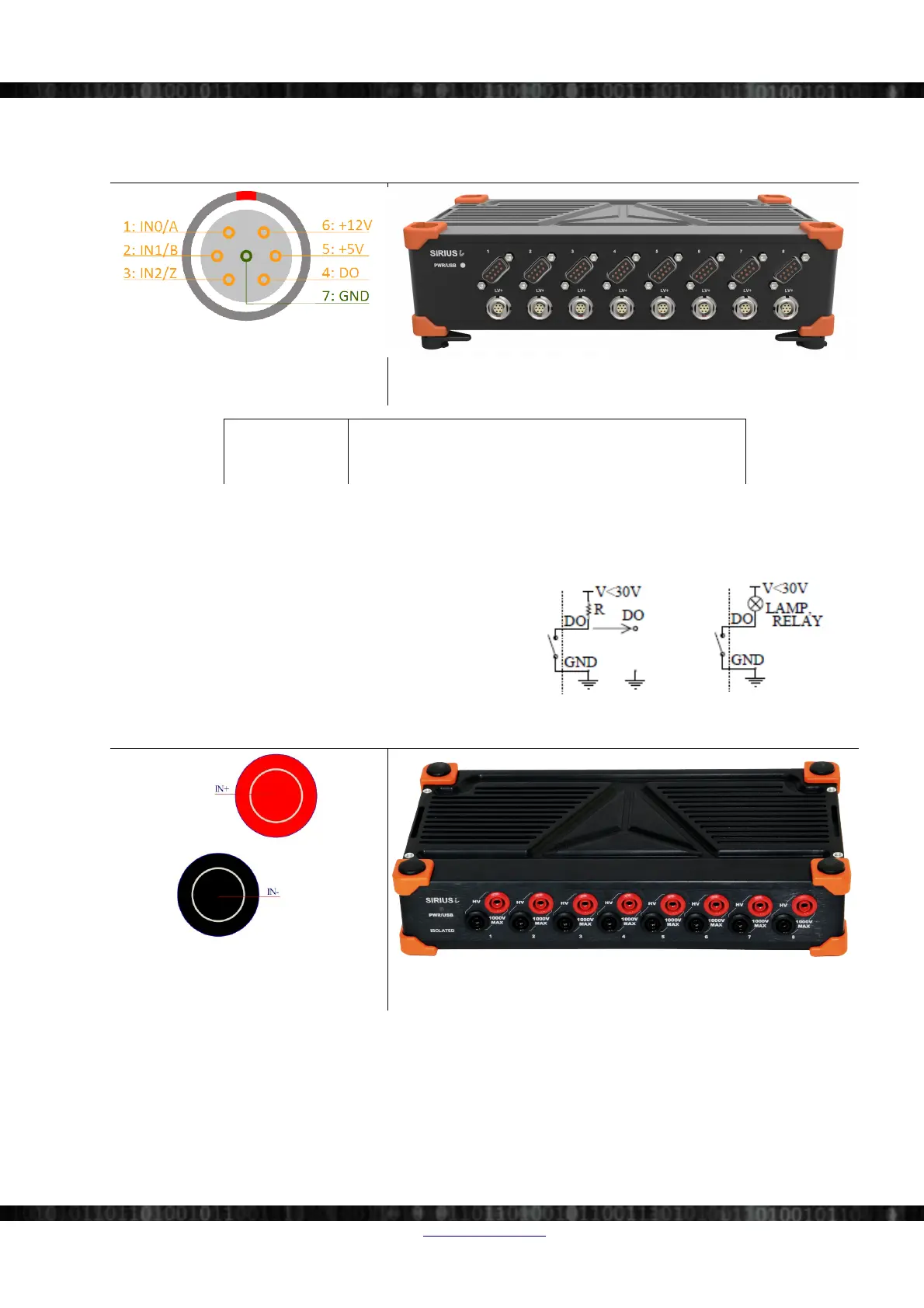

5.10.2 LV+ (Counter) L1B7f
As an additional function to the ACC module, the ACC+ module also has a 7-pin Lemo connector for digital counters.
Illustration 109: CNT: counter pin-out
(LEMO 7pin)
Illustration 110: SIRIUS i 8xLV+
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Table 15: LV+ counter connector type
Digital Output Configuration
The “switch” of the open collector output is closed when active.
5.10.3 LV BAN
Illustration 111: SIRIUS-LV pin-out
Banana plug
Illustration 112: SIRIUS i 8xLV-BAN
Doc-Version: 1.4.2 www.dewesoft.com Page 65/166
DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft®
measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation

DEWESOFT SIRIUS Specifications

General

Resolution	24-bit
Isolation	Channel-to-channel and channel-to-ground
Interface	USB
Software	DewesoftX data acquisition software
Bandwidth	DC to 50 kHz (depending on module type)
Humidity	non-condensing
Analog Inputs	Voltage, IEPE, Charge, Current, Strain Gage, Thermocouple, RTD, Resistance, LVDT, Bridge
