SIRIUS®

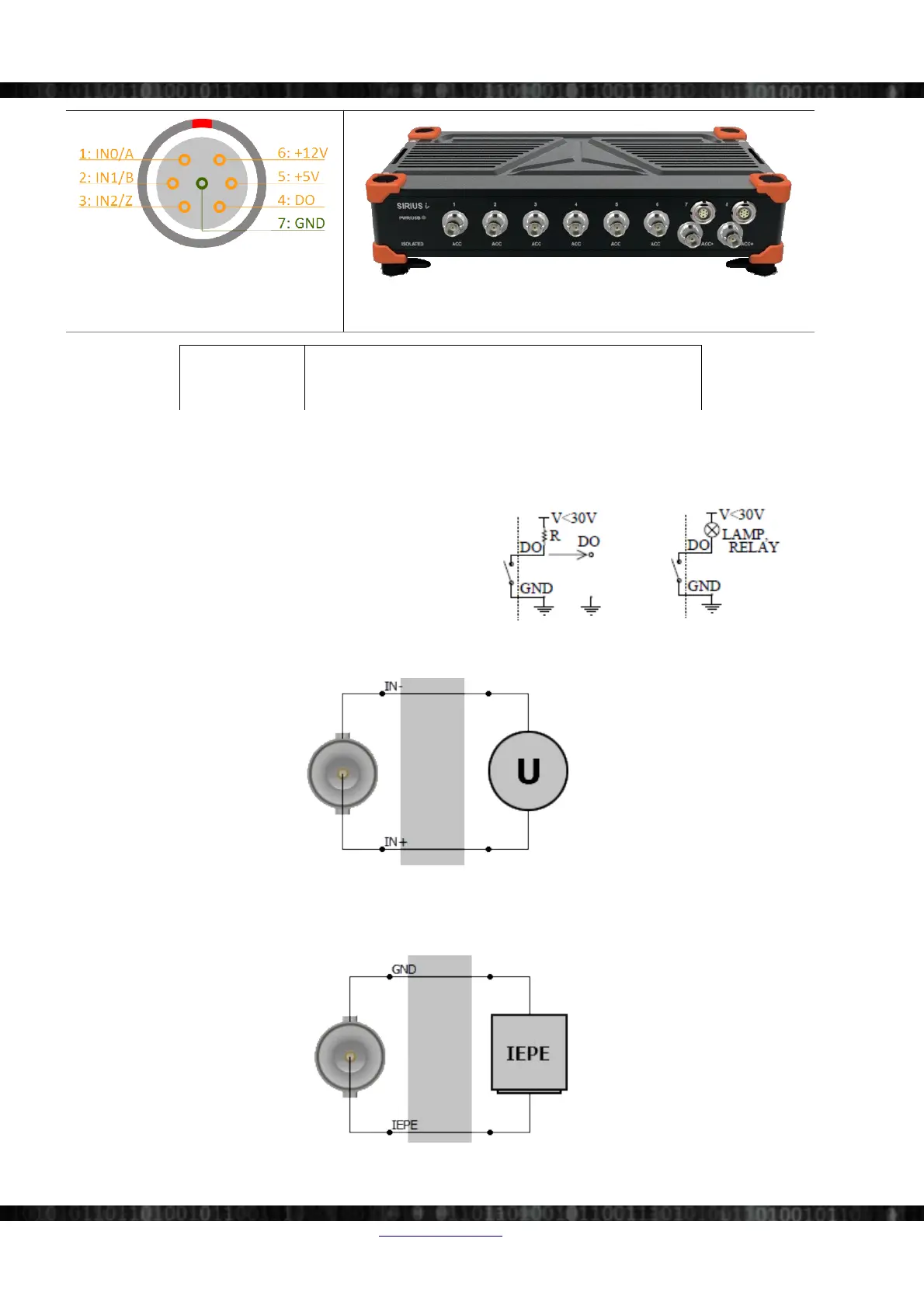

Illustration 95: CNT: counter pin-out
(LEMO 7pin)
Illustration 96: SIRIUS
i
6xACC, 2xACC+
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Table 10: ACC+ counter connector type
Digital Output Configuration
The “switch” of the open collector output is closed when active.
5.7.4 ACC: Voltage
Illustration 97: ACC Voltage
5.7.5 ACC: IEPE
Illustration 98: ACC IEPE
Page 58/166 www.dewesoft.com Doc-Version: 1.4.2
