DEWESOFT SIRIUS User Manual

SIRIUS®

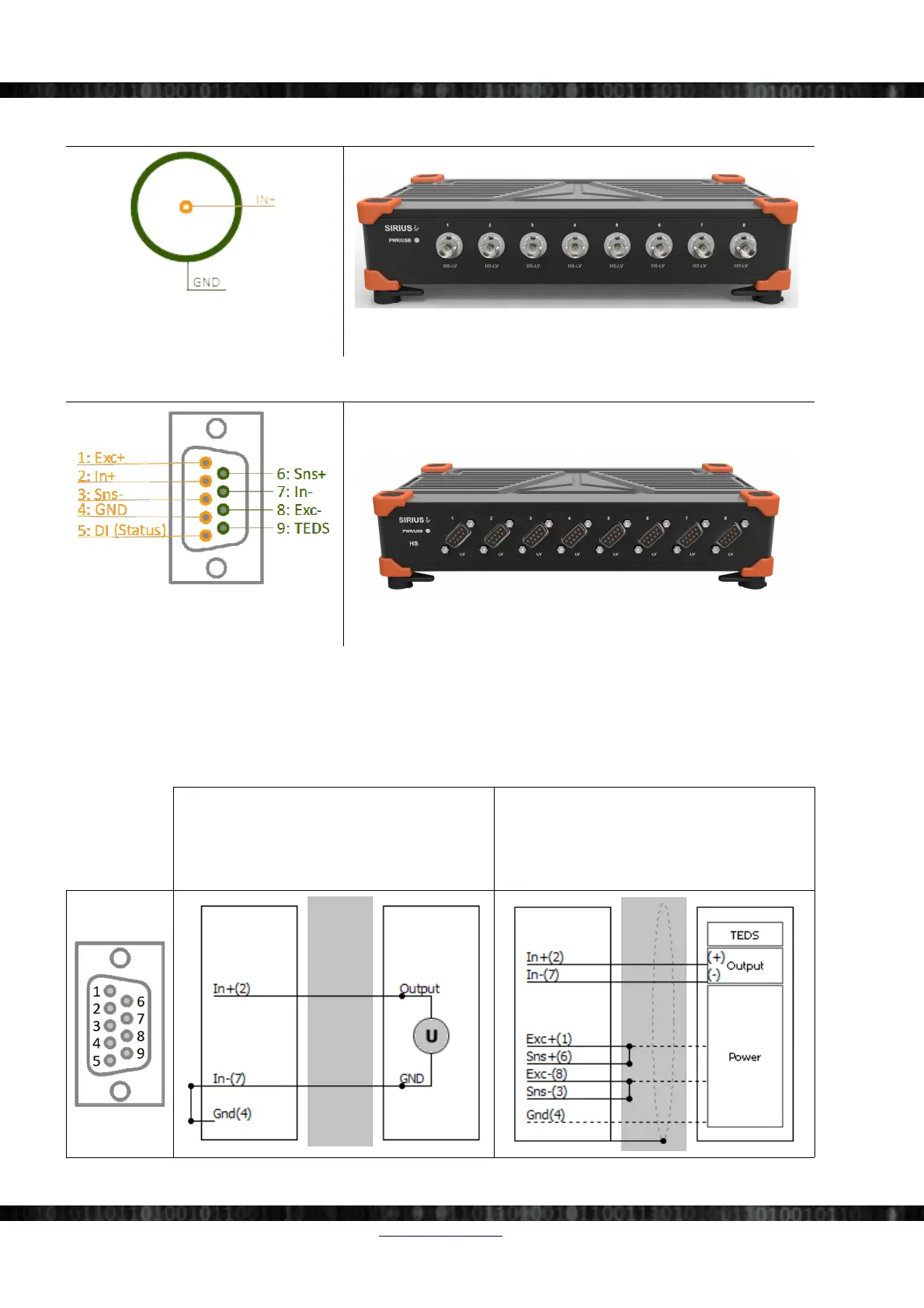

5.20.4 HS-LV BNC
Illustration 169: SIRIUS-HS-LV: pin-out
(BNC)
Illustration 170: SIRIUS i 8xHS-LV-BNC
5.20.5 HS-LV DSUB-9
Illustration 171: SIRIUS-HS-LV pin-out
DSUB-9
Illustration 172: SIRIUS i 8xHS-LV DSUB9
Digital Status Input
Pin 5 DI (Status) can be used for digital status input: i.e. show alarm status in DEWESoft® when a current clamp is
open.
5.20.5.1 HS-LV DSUB-9: Voltage
Voltage - Single Ended
Voltage – Differential
Use only when the sensor is powered by the
excitation voltage of the module.
Page 118/166 www.dewesoft.com Doc-Version: 1.4.2
DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft®
measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation

DEWESOFT SIRIUS Specifications

General

Resolution	24-bit
Isolation	Channel-to-channel and channel-to-ground
Interface	USB
Software	DewesoftX data acquisition software
Bandwidth	DC to 50 kHz (depending on module type)
Humidity	non-condensing
Analog Inputs	Voltage, IEPE, Charge, Current, Strain Gage, Thermocouple, RTD, Resistance, LVDT, Bridge
