DEWESOFT SIRIUS User Manual

SIRIUS® Measurement Modules
Additional Specifications
Input connector DSUB 9, Banana, BNC (others on request)
TEDS support Standard + MSI adapters

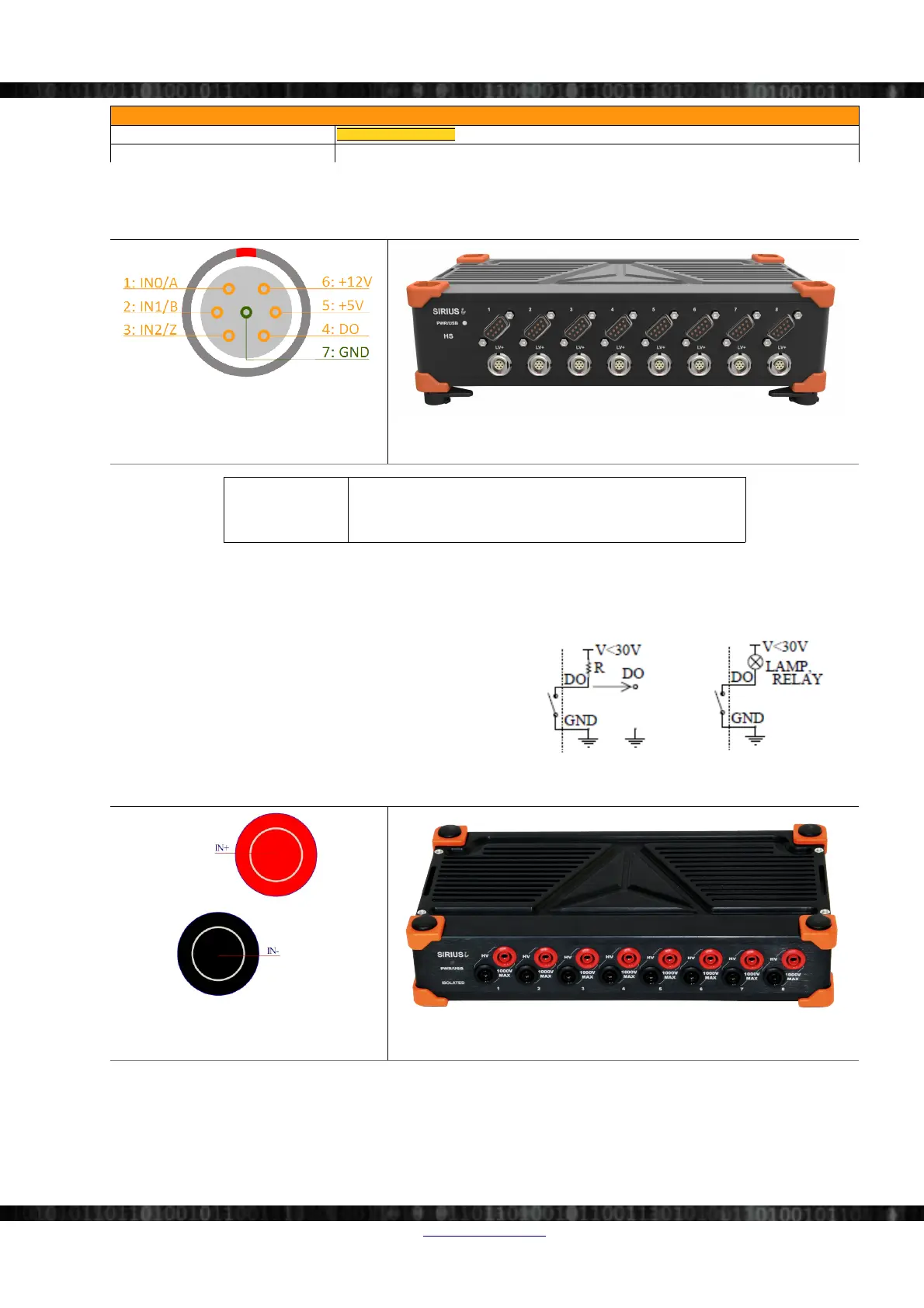

5.20.2 HS-LV+ (Counter) L1B7f
As an additional function to the LV module, the LV+ module also has a 7-pin Lemo connector for digital counters.
Illustration 165: CNT: counter pin-out
(LEMO 7pin)
Illustration 166: SIRIUS i -HS 8xLV+
Connector type L1B7f
Connector on the module: EGG.1B.307.CLL
Mating cable connector: FGG.1B.307.CLAD52
Table 32: HS-LV+ counter connector type
Digital Output Configuration
The “switch” of the open collector output is closed when active.
5.20.3 HS-LV BAN
Illustration 167: SIRIUS-HS-LV pin-out
Banana plug
Illustration 168: SIRIUS i 8xHS-LV-BAN
Doc-Version: 1.4.2 www.dewesoft.com Page 117/166
