SIRIUS® Measurement Modules
Pin Name Description

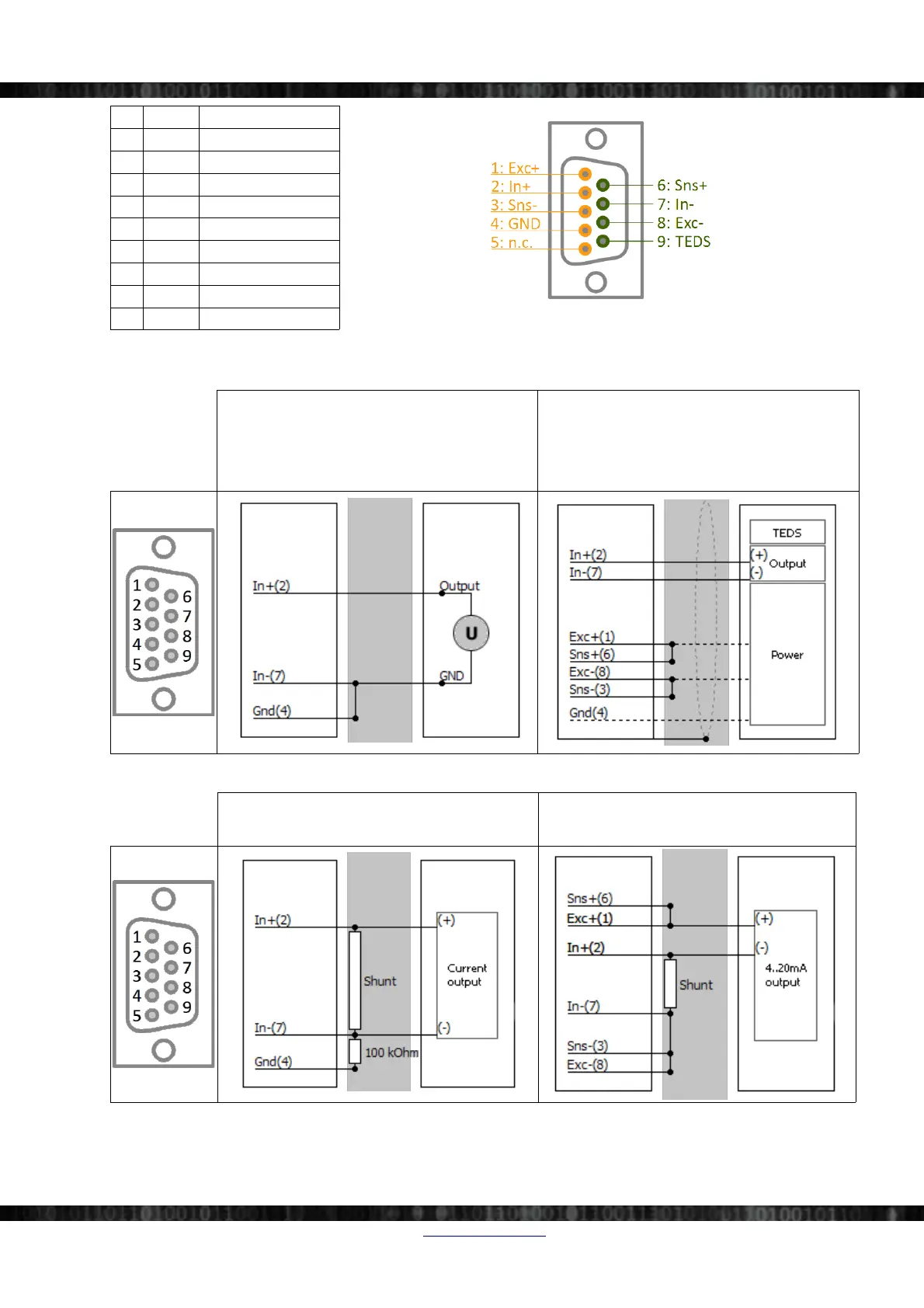

Illustration 142: 5.12.2 HD-LV pin-out DSUB-9
1 Exc+ Excitation +
2 In+ Input +
3 Sns- Sense -
4 GND Ground
5 n.c. Not connected
6 Sns+ Sense +
7 In- Input -
8 Exc- Excitation -
9 TEDS TEDS
5.15.2.1 HD-LV: Voltage
Voltage - Single Ended
Voltage – Differential
Use only when the sensor is powered by the
excitation voltage of the module.
5.15.2.2 HD-LV: Current
External Direct Shunt External Loop Powered Shunt
Doc-Version: 1.4.2 www.dewesoft.com Page 101/166
