DEWESOFT SIRIUS User Manual

SIRIUS® Measurement Modules
Pin Name Description

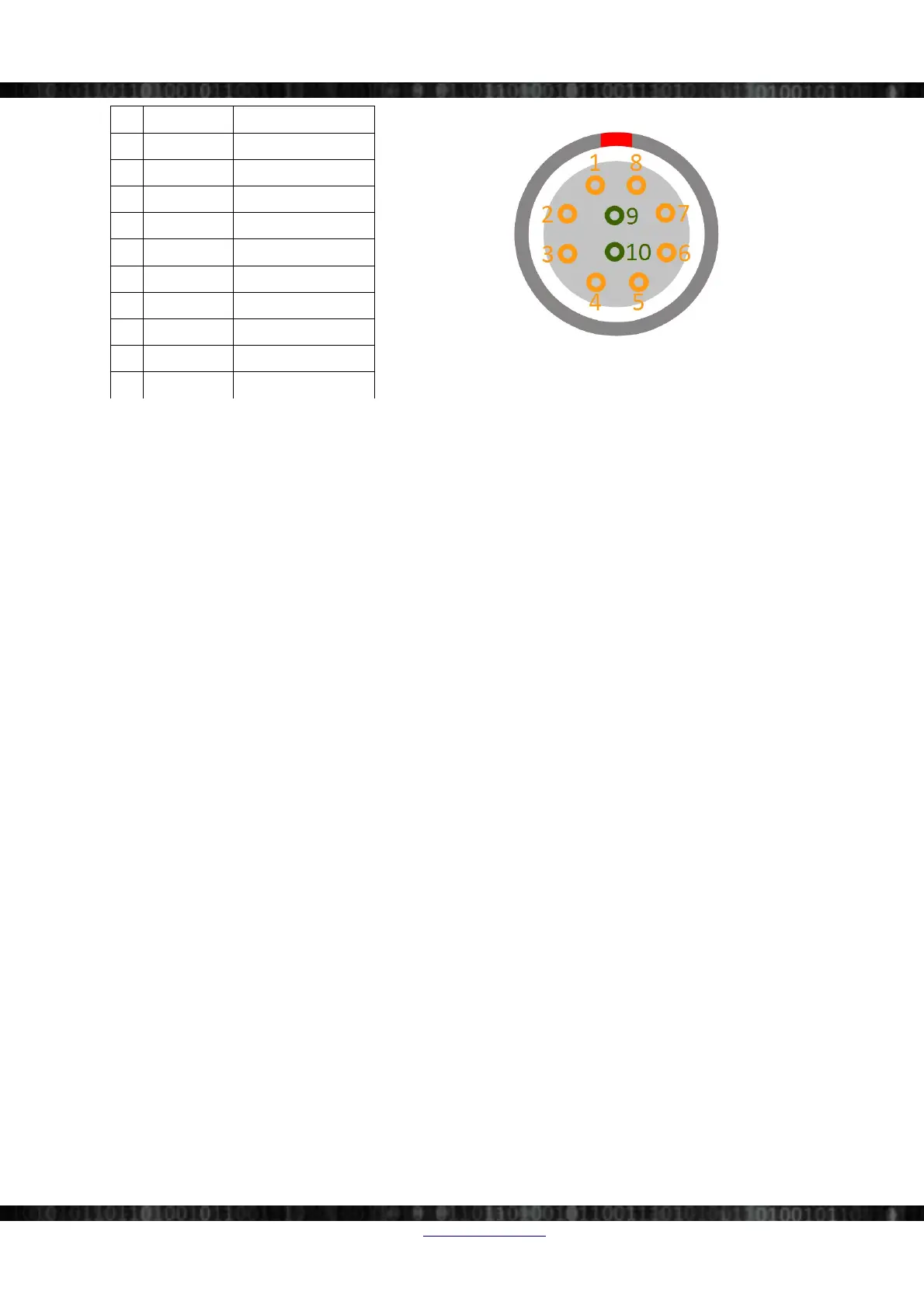

Illustration 148: SIRIUS-HD-STGS: pin-out Lemo 10-pin
1 In- Input -
2 Sns+ Sense +
3 R+ ¼ Bridge/Shunt
4 In+ Input +
5 Exc+ Excitation +
6 GND Measurement GND
7 Exc- Excitation -
8 Sns- Sense -
9 Shield connection to chassis
10 TEDS TEDS
Doc-Version: 1.4.2 www.dewesoft.com Page 107/166
DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft® DEWESoft®
measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation measurement innovation

DEWESOFT SIRIUS Specifications

General

Resolution	24-bit
Isolation	Channel-to-channel and channel-to-ground
Interface	USB
Software	DewesoftX data acquisition software
Bandwidth	DC to 50 kHz (depending on module type)
Humidity	non-condensing
Analog Inputs	Voltage, IEPE, Charge, Current, Strain Gage, Thermocouple, RTD, Resistance, LVDT, Bridge
