SIRIUS® Measurement Modules
Pin Name Description

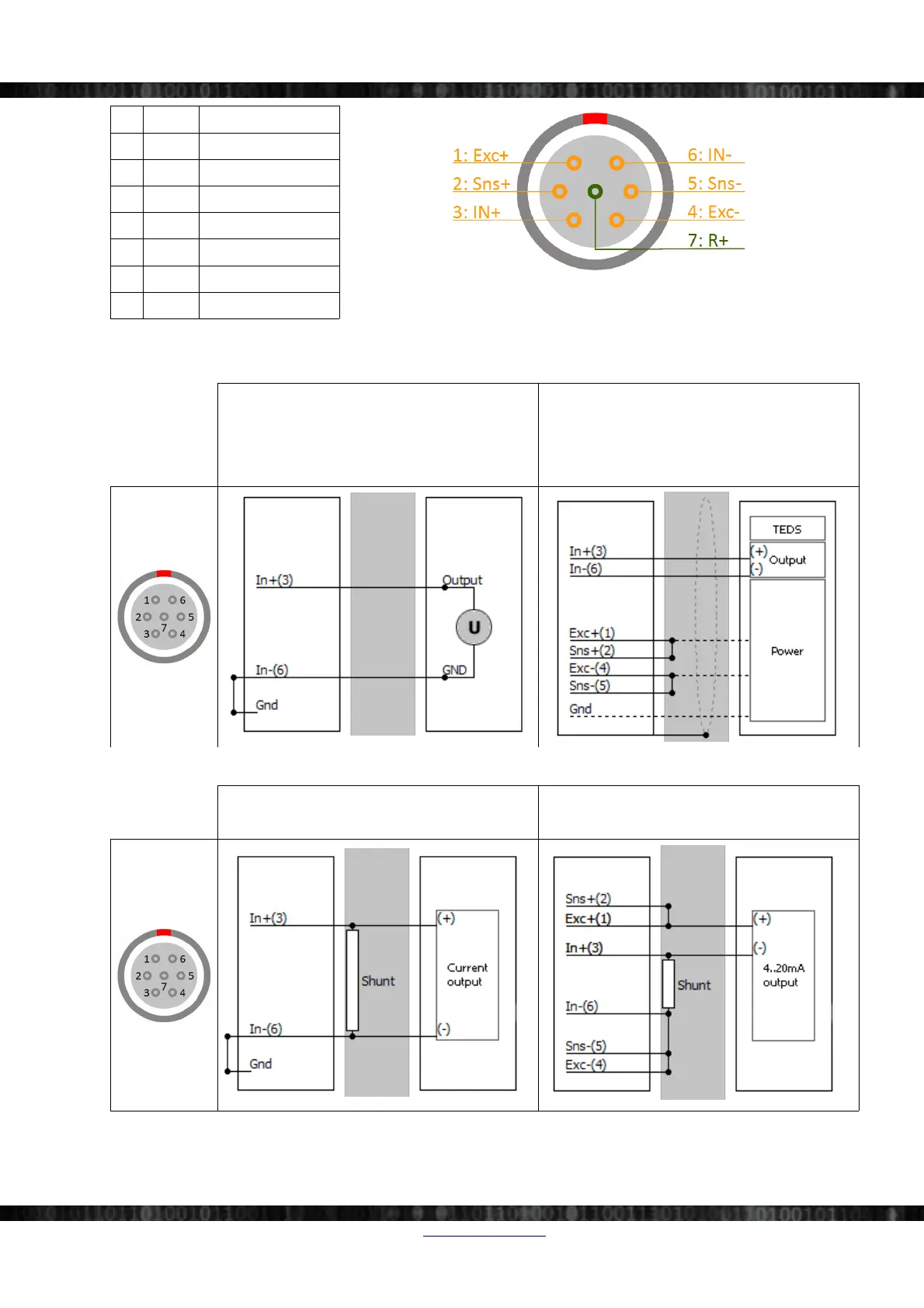

Illustration 132: SIRIUS-STG: pin-out Lemo 7-pin
1 Exc+ Excitation +
2 Sns+ Sense +
3 In+ Input +
4 Exc- Excitation -
5 Sns- Sense -
6 In- Input -
7 R+ ¼ Bridge/Shunt
5.13.3.1 STG-L2B7f: Voltage
Voltage - Single Ended
Voltage – Differential
Use only when the sensor is powered by the
excitation voltage of the module.
5.13.3.2 STG-L2B7f: Current
External Direct Shunt External Loop Powered Shunt
Doc-Version: 1.4.2 www.dewesoft.com Page 89/166
