Dexter Laundry WCAD Series - Page 37

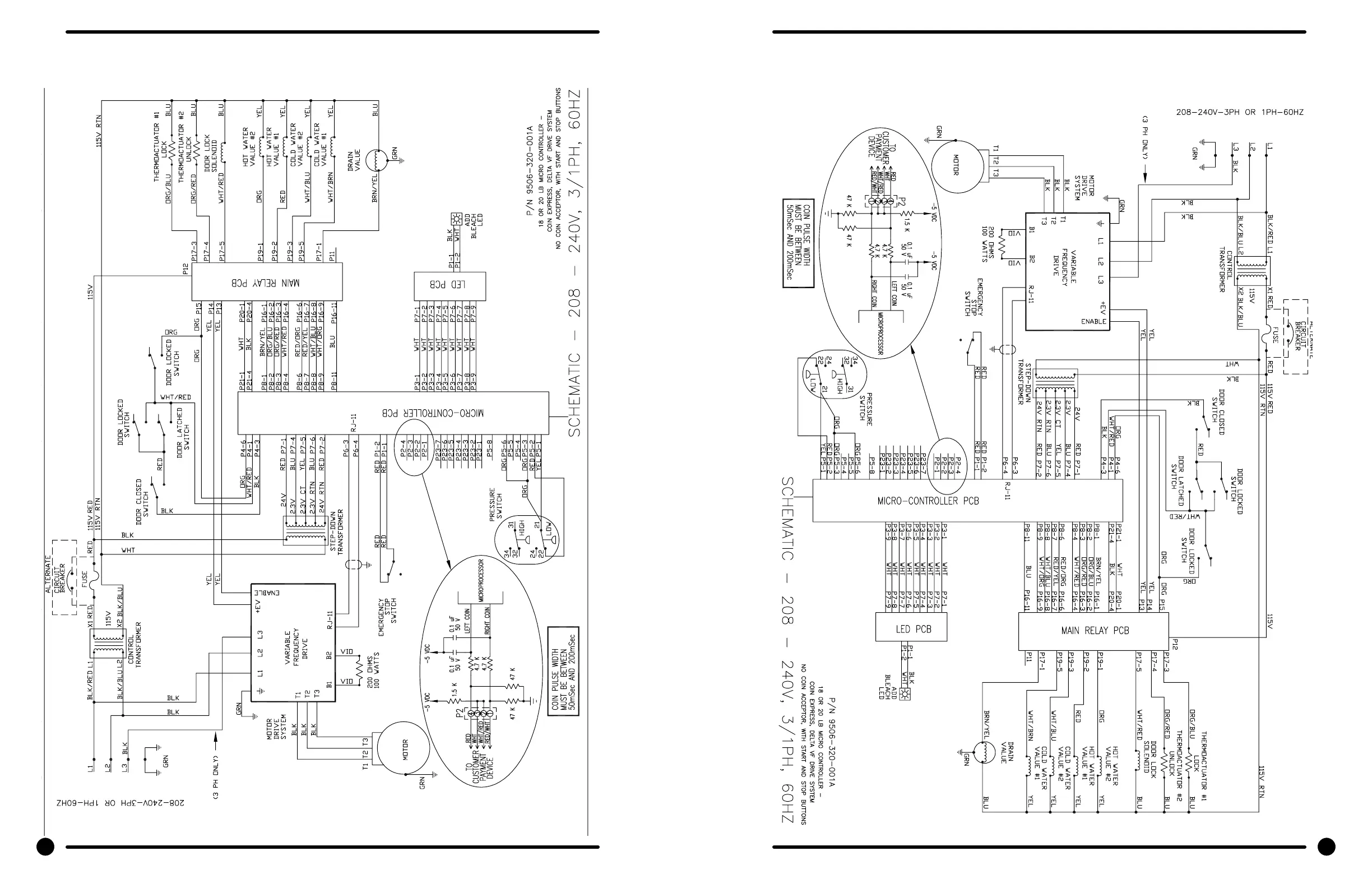

CN (No Coin Acceptor) 20Lb.
Non-Express: 208-240 Volt Wiring Diagram
CN (No Coin Acceptor) 20Lb. Express:
208-240 Wiring Schematic
72 73
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
