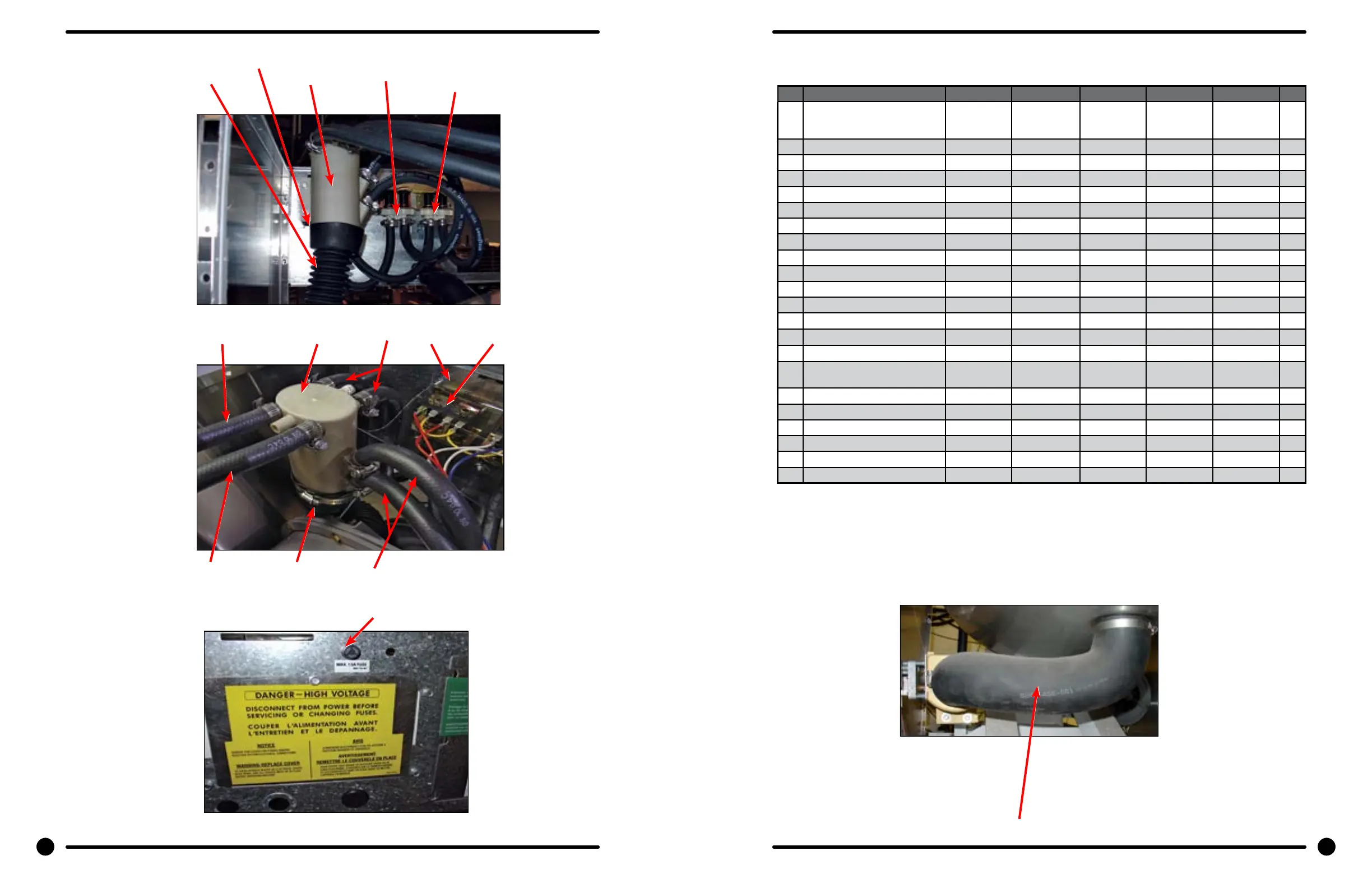

Dexter Laundry WCAD Series User Manual

Water Inlet Part # by Model
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
1 Valve, Water Inlet (dual outlet)
(see Water Inlet Valve Break-
down for individual parts)
9379-183-012 9379-183-012 9379-183-012 9379-183-012 9379-183-012 2
* Screw, Valve Mtg 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Nut, Spring 8640-399-009 8640-399-009 8640-399-009 8640-399-009 8640-399-009 4
* Screw, Valve M4x0.7x8mm 8
4 Vacuum Breaker 9610-001-001 9610-001-001 9610-001-001 9610-001-001 9610-001-001 1
* Bracket, Vacuum Breaker 9029-065-001 9029-065-001 9029-065-001 9029-077-001 9029-077-001 1
* Screw 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
3 Shield over Water Valves Plastic 9550-186-001 9550-186-001 9550-186-001 9550-186-001 9550-186-001 1
5 Hose, Vacuum Breaker to Tub 9242-458-001 9242-458-001 9242-458-002 9242-458-002 9242-458-002 1
* Clamp, Tub End 8654 -117-009 8654 -117-009 8654-117-009 8654-117-009 8654-117-0 09 1
8 Hose, Valve to Vac. Braker 9242-453-020 9242-453-020 9242-453-020 9242-453-020 9242-453-020 4
7 Hose, Cold, Vac. Brkr. dispenser 9242-453-015 9242-453-015 9242-453-016 9242-453-016 9242-453-009 1
6 Hose, Hot, Vac. Brkr. dispenser 9242-453-016 9242-453-016 9242-453-017 9242-453-017 9242-453-020 1
* Clamp, Hose-Worm 8654 -117-015 8654-117-015 8654-117-015 8654-117-015 8654-117-015 12
13 Hose, (valve to vac. Brkr) 23” 4
* Clamp, Hose-Spring (overow
from drain to tub back)
8654 -117-018 8654-117-018 8654-117-018 8654-117-018 8654-117-018 2
* Flow restrictor 9475-002-002 9475-002-002 9475-002-002 9475-002-002 9475-002-002 2
* Circuit Breaker (optional) 5198-211-004 5198-211-004 5198-211-004 5198-211-004 5198-211-004 1
14 Fuseholder 9200-001-002 9200-001-002 9200-001-002 9200-001-002 9200-001-002 1
15 Fuse 1.5 amp 8636-018-001 8636-018-001 8636-018-001 8636-018-001 8636-018-001 1
16 Hose Tub to Drain Valve 9242-468-001 9242-468-001 9242-456-001 9242-456-001 9242-456-001 1
17 Clamp, Vacuum Breaker End 8654-117-014 8654-117-014 8654 -117-014 8654-117- 014 8654-117- 014 1
