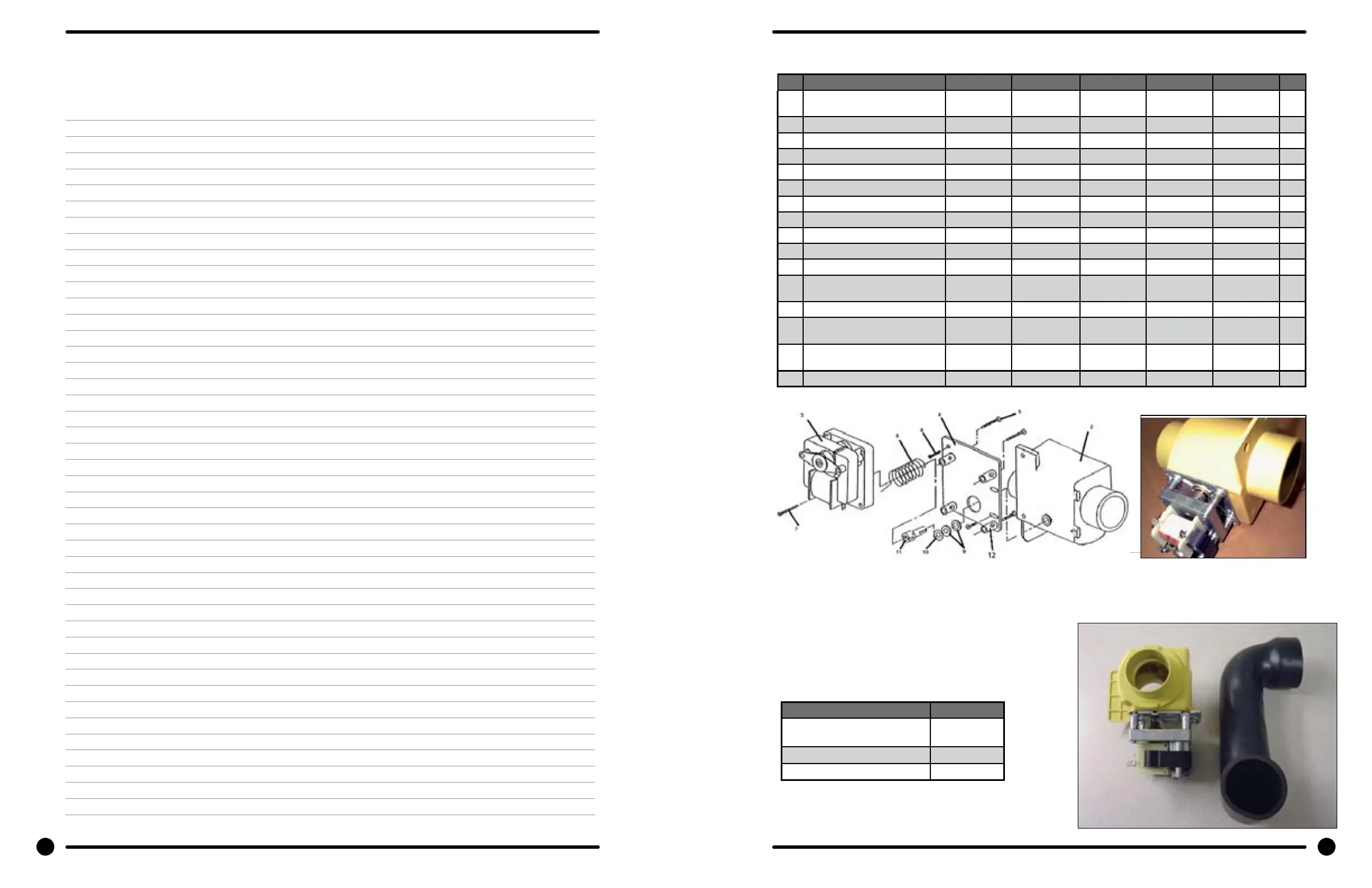

18lb Drain Valve Replacement Kit
#9732-273-001 Breakdown
#9732-273-001
18lb Drain Valve Replacement Kit T-300
Drain Valve, 2” ball 9379-177-009
Hose 9242-468-001
Clamp 9242-117-009
Drain Valve Group Part # by Model
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
1 Valve, Drain (includes #2 thru
#11)
9732-273-001 9732-273-001 9379-202-001 9379-202-001 9379-202-001 1
2 Body, Valve (w/ball) 9064-068-001 9064-068-001 9064-070-001 9064-070-001 9064-070-001 1
3 Motor & Gear Train (complete) 9914-137-012 9914-137-012 9914-137-011 9914-137-011 9914-137-011 1
4 Plate, Motor Mtg 9452-538-001 9452-538-001 9452-538-001 9452-538-001 9452-538-001 1
5 Screw 8639-994-001 8639-994-001 8639-994-001 8639-994-001 8639-994-001 3
6 Spring, Drive 9534-340-001 9534-340-001 9534-339-001 9534-339-001 9534-339-001 1
7 Screw 9545-054-001 9545-054-001 9545-054-001 9545-054-001 9545-054-001 2
8 Screw 9545-054-002 9545-054-002 9545-054-002 9545-054-002 9545-054-002 1
9 Seal, V Packer 9532-134-001 9532-134-001 9532-134-001 9532-134-001 9532-134-001 2
10 Washer 8641-584-001 8641-584-001 8641-584-001 8641-584-001 8641-584-001 1
11 Pin, Main Drive 9451-196-001 9451-196-001 9451-196-001 9451-196-001 9451-196-001 1
12 Plate (spacers needed for re-
placement motor mtg. plate)
9538-149-001 9538-149-001 9538-149-001 9538-149-0 01 9538-149- 001 4
13 Stator and Coil Assembly 9089-036-004 9089-036-004 9089-036-004 9089-036-004 9089-036-004 1
* Valve Drain before Serial #
482181
9379-177-006 9379-177- 006 9379-187-001 9379 -187-001 9379-187- 001 1*
* Motor Gear Train to Fit before
Serial # 482181
9914-137-012 9914-137-012 9914-137-011 9914-137-011 9914-137-011 1
* Replacement Seal Kti 9732-327-001 9732-327-001 9732-327-001 *
104 105
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
104 105
