Dexter Laundry WCAD Series User Manual

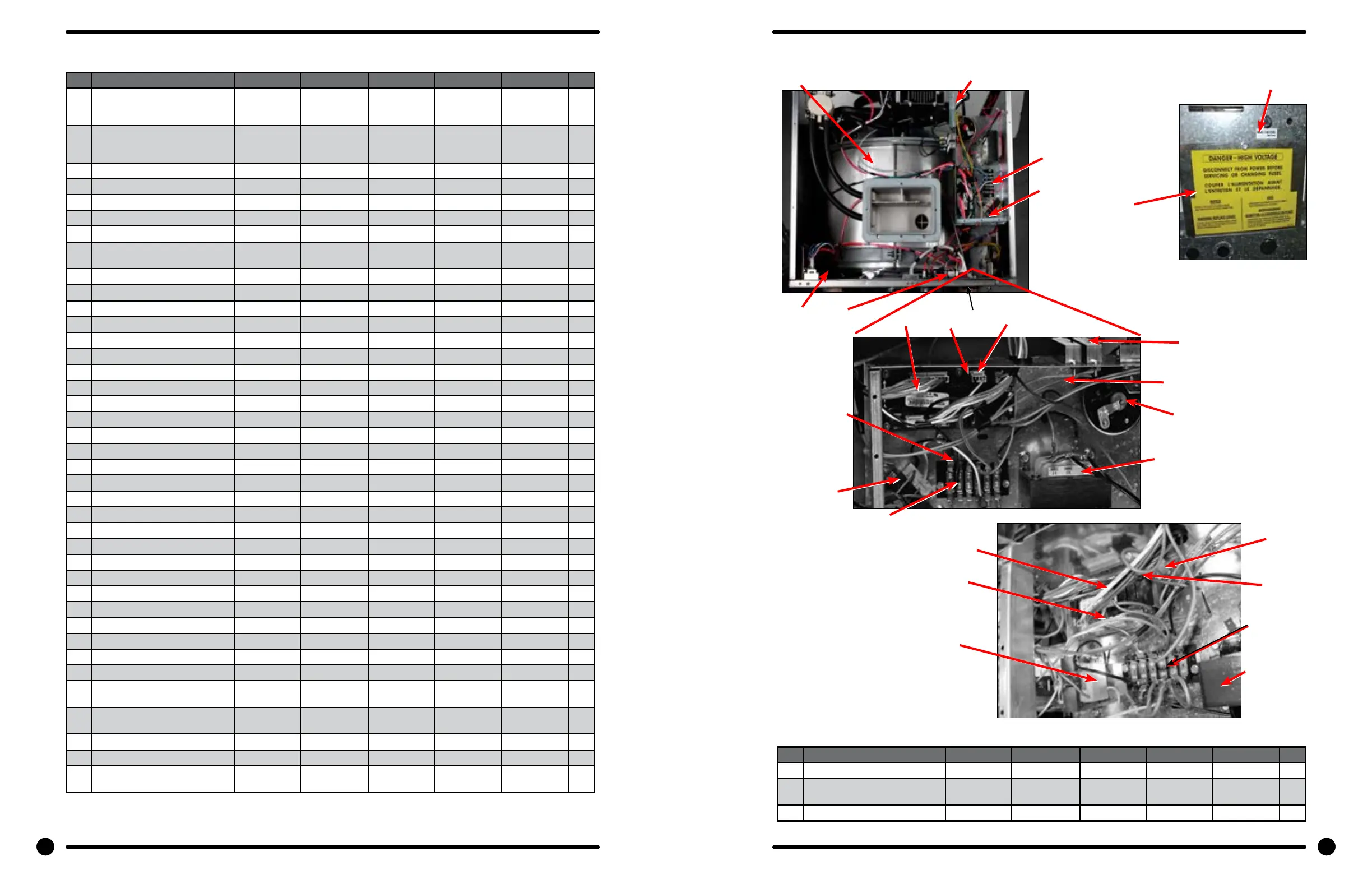

Electrical Components - Top Compartment
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
1 Trough Assy,Controls 120 Volt
(all parts below #2-#43 &
trough)
9857-149-001 1
1 Trough Assy,Controls 208-240
volt (all parts below #2-#43 &
trough)
9857-150-001 9857-157-003 9857-151-001 9857-151-003 9857-152-001 1
* Trough only 9839-015-001 9839-015-001 9839-015-001 9839-015-001 9839-015-001 1
* Screw, Trough Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Lockwasher #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 4
5 Angle Support Trough 9003-270-001 9003-295-001 9003-270-001 9003-298-001 9003-271-001 1
6 Screw, Trough Bracket 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 3
7 Transformer, Control (Secondary
Voltage to 115 volts)
8711-004-001 8711-004-001 8711-004-001 8711-004-001 8711-004-001 1
* Screw, Mtg #10Bx1/2” 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Lockwasher #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 4
* Screw GRN. #10-32x 1/2” 9545-008-027 9545-008-027 9545-008-027 9545-008-027 9545-008-027 1
* Lockwasher #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 1
* Lug, Grounding 8652-130-037 8652-130-037 8652-130-037 8652-130-037 8652-130-037 1
12 Hose, Overow Top Vent Rear 9942-449-002 9942-449-002 9942-449-002 9942-449-002 9942-449-002 1
15 PCB assembly Relay Main 9473-006-001 9473-006-001 9473-006-001 9473-006-001 9473-006-001 1
18 Harness Drain/Therm/Sol 9627-796-001 9627-796-001 9627-796-001 9627-796-001 9627-796-002 1
19 Harness P19/Water Valve 9627-795-003 9627-795-003 9627-795-003 9627-795-003 9627-795-004 1
20 Harness P8/P16 9627-794 -001 9627-794-001 9627-794- 001 9627-794- 001 9627-794 -001 1
21 Harness P20/P21 9627-793-001 9627-793-0 01 9627-793-0 01 9627-793-0 01 9627-793-001 1
* Bushing , Wire 7/8 9053-067-002 9053-067-002 9053-067-002 9053-067-002 9053-067-002 2
* Stando Twistlock 9527-002-002 9527-002-002 9527-002-002 9527-002-002 9527-002-002 3
* Stando Twistlock 9527-002-003 9527-002-003 9527-002-003 9527-002-003 9527-002-003 2
26 Dynamic Braking Resistor 9483-004-002 9483-004-002 9483-004-002 9483-004-002 9483-004-002 2
27 Screws #10-32x1/2” (pnhdcr) 9545-012-008 9545-012-008 9545-012-008 9545-012-008 9545-012-008 4
28 Nuts, #10-32 UNF 2B 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 4
30 Screw #6-32x5/16” 9545-044-006 9545-044-006 9545-044-006 9545-044-006 9545-044-006 4
31 Nuts Hex #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 4
32 Terminal Block Assy, POWER 9897-034-001 9897-034-001 9897-034-001 9897-034-001 9897-034-001 1
* Screw, Mtg 8Bx3/8” 9545-045-007 9545-045-007 9545-045-007 9545-045-007 9545-045-007 2
* Strip, Terminal Marker 9558-027-001 9558-027-001 9558-027-001 9558-027-001 9558-027-001 1
35 Switch, Pressure 9539-457-002 9539-491-001 9539-457-003 9539- 491-001 9539-457-003 1
* Electronic Pressure Switch Kit 9732-314-001 9732-314-001 9732-314-001 9732-314-001 9732-314-001 *
36 Screw, Mtg #8Bx1/4” 9545-045-001 9545-008-026 9545-045-001 9545-045-001 9545-045-001 2
37 Harness P5/Pressure 9627-800-001 9627-801-001 9627-801-001 9627-801-001 9627-802-001 1
38 Transformer, (Step Down)
120/2.3 VAC&24 VAC 50/60hz
8711-009-001 8711-009-001 8711-009-001 8711-009-001 8711-009-001 1
39 Screw, Transformer Mtg
#10Bx1/2”
9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001 2
40 Lockwasher #6 exttooth 8641-582-005 8641-582-005 8641-582-005 8641-582-005 8641-582-005 2
48 Label Fuse 1.5 amp Rear 8502-716- 001 8502-716-001 8502-716-0 01 8502-716-001 8502-716 -001 1
49 Cover Electrical (Rear Main Ter-
minal Block)
9074-267-001 9074-267-001 9074-267-001 9074-267-001 9074-267-001 1
Electrical Components - Top Compartment
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
* Screw 8B x 1/2 9545-045-002 9545-045-002 9545-031-010 2
* Wiring Harness Power Terminal
to VFD
9627-831-001 9627-831-001 9627-747-003 9627-747-003 9627-747-003 1
* Plastic Shield Over Water Valve 9550-186-001 9550-186-001 9550-186-001 9550-186-001 9550-186-001 1
108 109
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
108 109
48
15 PCB
38
7
32
20
21
1
7
19
38
15
18
16 & 17
26, 27 & 28
30 & 31
5, 6
32
18
19
49
5
32
35, 36
37
32
MAIN PCB
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
Coin
Handling
50Hz
Parts
Maintenance
Service Elec.
Compnents
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel
