Dexter Laundry WCAD Series User Manual

Key Description T-30 0 T-350 T-400 T-450 T-600
1 Door Hinge Assembly (mounts to tub
front)
9955-029-002 9955-029-002 9955-029-002 9955-029-002 9955-029-002
2 Loading Door Hinge Pin 9781-001-001 9781-001-001 9781-001-001 9781-001-001 9781-001-001
3 Loading Door Hinge Clamp (No Hinge
Switch Pin)
9079-122-003 9079-122-003 9079-122-003 9079-122-003 9079-122-003
4 Masking Ring Assembly (For Newer
Plunger Switch)
9487-272-001 9487-272-001 9487-273-001 9487-273-001 9487-273-001
5 Red Wire (Door Close Switch) 8220-063-025 8220-063-025 8220-063-025 8220-063-025 8220-063-025
9 Black Wire (Door Close Switch) 8220-063-026 8220-063-026 8220-063-026 8220-063-026 8220-063-026
10 Switch, Door Hinge Close (Plunger) 9539-492-001 9539-492-001 9539-492-001 9539-492-001 9539-492-001
11 Masking Ring 9487-272-001 9487-273-001 9487-273-001 9487-273-001 9487-273-001

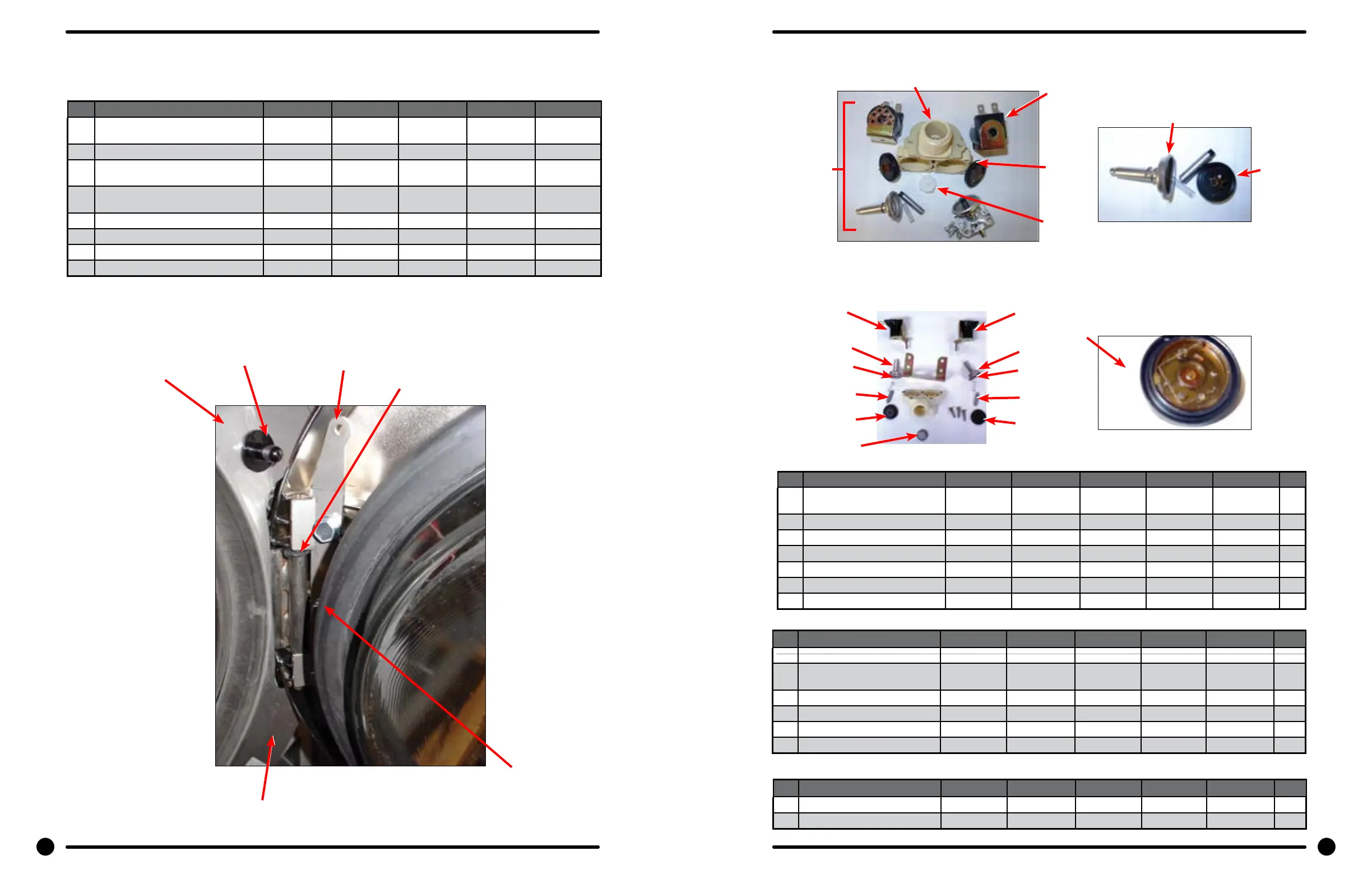

Loading Door Hinge (Newer Style Door Switch)
With No Pin On Clamp Or Leaf
Water Inlet Valve Breakdown Part # by Model
Mueller DiaphramMueller Valve
Mueller Diaphram
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
10 Dual Coil Water Valve Mueller 9379-192-001 9379-192-001 9379-192-001 9379-192-001 9379-192-001 2
11 Valve Water Body Complete (no
coil)
9379-192-002 9379-192-002 9379-192-002 9379-192-002 9379-192-002
12 Diaphragm Mueller 9118-054-001 9118-054-001 9118-054-001 9118-054-001 9118-054-001
13 Filter Mueller 9183-046-001 9183-046-001 9183-046-001 9183-046-001 9183-046-001
14 Coil Mueller 9089-051-001 9089-051-001 9089-051-001 9089-051-001 9089-051-001
16 Diaphragm Assembly Mueller 9785-001-001 9785-001-001 9785-001-001 9785-001-001 9785-001-001
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
* Valve, Water Inlet (includes 1
thru 6)
9379-183-012 9379-183-012 9379-183-012 9379-183-012 9379-183-012 2
1 Screen, Inlet end of valve 9555-056-001 9555-056-001 9555-056-001 9555-056-001 9555-056-001 2
2 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 9089-017-001 9089-017-001 9089-017-001 2
3 Diaphragm Invensys (EPDM NSF) 9118-049-003 9118-049-003 9118-049-003 9118-049-003 9118-049-003 2
4 Guide, Solenoid Invensys 9211-021-002 9211-021-002 9211-021-002 9211-021-002 9211-021-002 2
5 Armature Invensys 9015-008-001 9015-008-001 9015-008-001 9015-008-001 9015-008-001 2
6 Spring, Armature Invensys 9534-298-001 9534-298-001 9534-298-001 9534-298-001 9534-298-001 2
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
* Dual Coil Water Valve Elbie 9379-191-001 9379-191- 001 9379-191-001 9371-192-001 9379-191-001 2
* Kit, Elbie water Valve w/bracket 9732-195- 001 9732-195-001 9732-195-001 9732-195-0 01 9732-195-001 2
