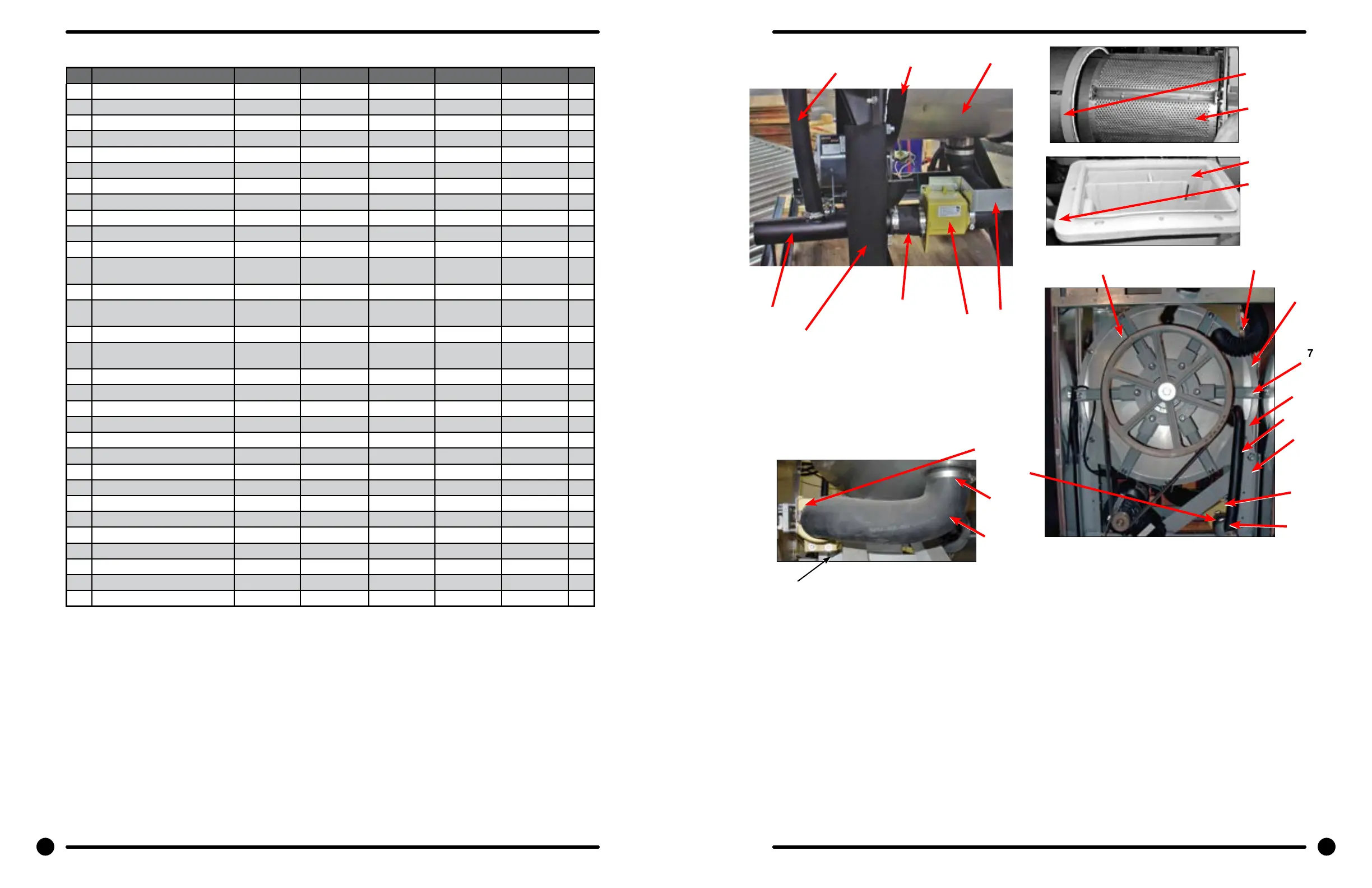

Chassis and Drain Part # by Model
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
1 Base Assy,Frame 9945-093-002 9945-119-0 02 9945-087-002 9945-116-002 9945-097-002 1
2 Outer Tub Assy 9930-135-001 9930-143-001 9930-142-001 9930-142-001 9930-146-001 1
* Tub & Cylinder Assy 9869-006-001 9869-013-002 9869-021-001 9869-014-001 9869-017-001 1
* Ring Assy, Tub Mtg-Front 9950-045-002 9950-046-002 9950-051-004 9950-051-004 9950-051-004 1
7 Ring Assy.Clamp Tub Mtg.- Rear 9950-046-002 9950-058-002 9950-041-004 9950-056-002 9950-056-003 1
8 Bolt, 1/2” x 1 1/4 Rings to Base 9545-017-009 4
* Washer 8641-581-018 8641-581-018 8641-581-018 8641-581-018 8641-581-018 1
25 Hose, Tub to Drain Valve 9242-468-001 9242-468-001 9242-456-001 9242-456-001 9242-456-001 1
26 Clamp, Hose (Tub to Drain Valve) 8654-117-014 8654 -117-014 8654 -117-014 8654-117- 014 8654-117- 014 2
9 Valve, Drain 9379-177-010 9379-177-010 9379-202-001 9379-202-001 9379-202-001 1
19 Hose, Drain Valve to Tube 9242-451-002 9242-451-002 9242-457-001 9242-457-001 9242-457-001 1
19A Clamp, Hose (Drain Valve to
Tube)
8654 -117-014 8654-117- 014 8654-117-014 8654-117- 014 8654-117- 014 2
10 Bracket, Drain Valve 9029-005-001 9029-005-001 9029-056-001 1
* Screw, Valve to Bracket
12ABx1/2
9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
11 Tube Assy, Drain 9915-116- 004 9915-125-002 9915-119-002 9915-119-002 9915-118- 002 1
* Screw Tube (Bracket to Base
1/4Bx3/4
9545-030-002 9545-030-002 9545-030-002 9545-030-002 9545-030-002 2
12 Hose, Overow to drain 9942-449-002 9942-449-002 9942-449-002 9942-449-002 9942-449-002 1
8 Lockwasher 8641-582-018 8641-582-018 4
8 Nut, Hex 5/8-11 8640-425-001 8640-425-001 8640-425-001 4
* Shim, Support Assembly (thin) 9552-038-003 9552-038-003 9552-038-003 9552-038-001 9552-038-001 AR
18 Fill Hose, Vacuum Brkr. to Tub 9242-458-002 9242-458-002 9242-458-002 9242-458-002 9242-458-002 1
13 Dispenser Soap 9122-005-004 9122-005-004 9122-005-004 9122-005-004 9122-005-004 1
15 Gasket, Dispenser 9206-416-001 9206-416-001 9206-416-001 9206-416-001 9206-416-001 1
* Nut Spring SS 8640-399-007 8640-399-007 8640-399-007 8640-399-007 8640-399-007 4
* Hose, Dispenser to Tub 9242-450-002 9242-450-002 9242-450-002 9242-450-002 9242-450-001 1
* Clamp, Dispenser Hose 8654-117-008 8654-117-0 08 8654-117-008 8654 -117-008 8654-117- 008 2
14 Back Ass’y, Tub 9732-137-001 9732-137-002 9732-137-003 9732-137-003 1
16 Bolt, 7/16” x 2” Tub Back to Tub 9545-029-003 9545-029-003 9545-029-003 12
17 Nut, Flange Lock 8640-415-004 8640-415-004 8640-416-005 8640-416-005 8640-416-005 12
Hose, Pressure Switch 9242-175-000 9242-175-000 9242-175- 007 9242-175- 007 9242-175-001 1
Clamp, Pressure Switch Hose 8654 -117-015 8654-117-015 8654-117-015 8654-117-015 8654-117-015 1
106 107
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
106 107
9
1
10
2
9
11
19 & 19A
11
11
26
25
19
1
12
8
9
18
7
16&17
7 & 14
7
Cylinder
13
15
7
12
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
To Next Page
