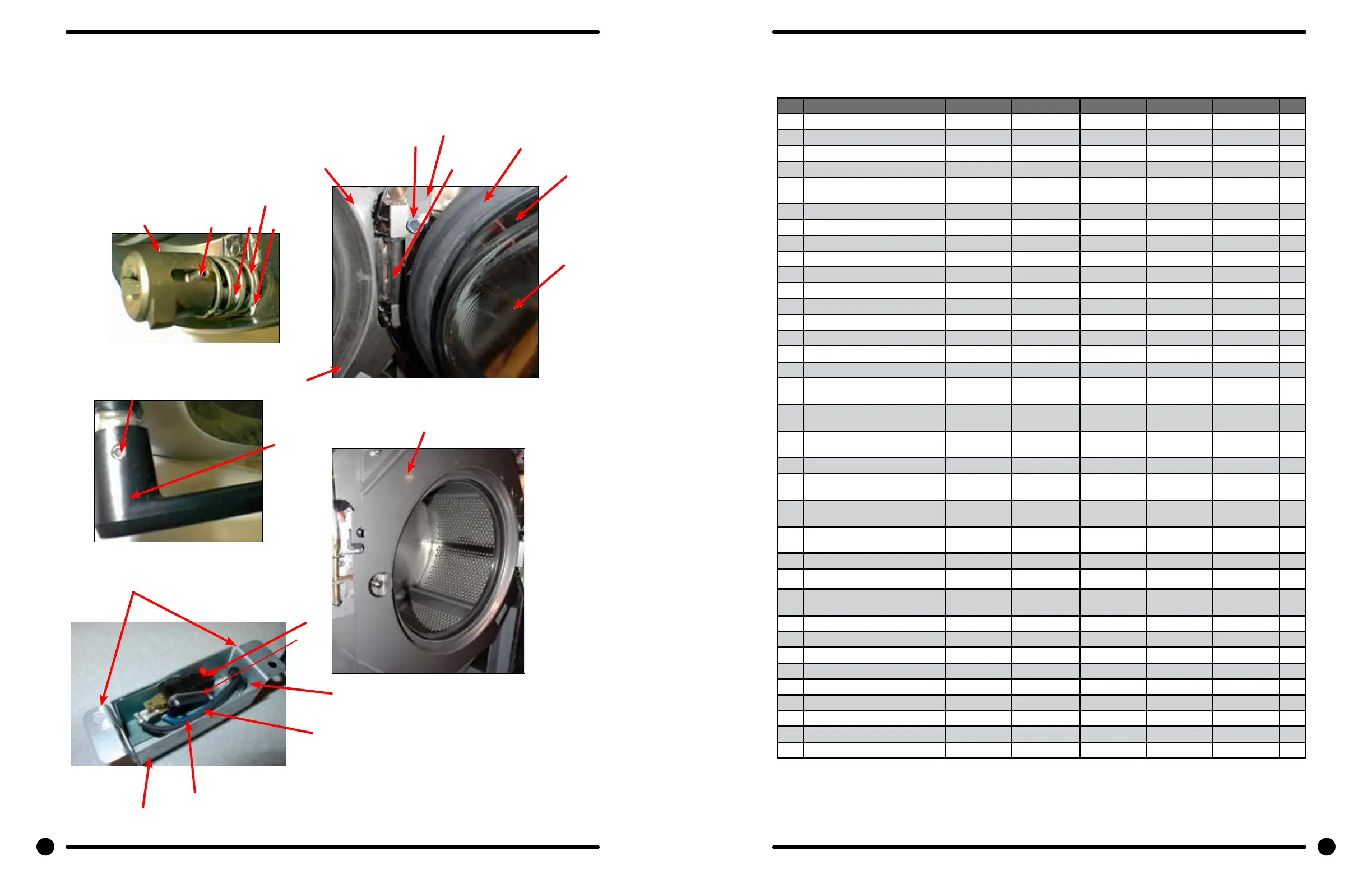

Loading Door Part # by Model (Original Style Door Switch)
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
* Loading Door, Complete #1-10 9960-273-001 9960-273-00 9960-274-002 9960-274-002 9960-274-002 1
1 Loading Door, Ring 9487-264-001 9487-264-001 9487-265-001 9487-265-001 9487-265-001 1
2 Gasket, Loading Door 9206-411-002 9206-411-001 9206-419-001 9206-419-001 9206-419-001 1
3 Window, Loading Door 9635-018-001 9635-018-001 9635-016-001 9635-016-001 9635-016-001 1
* Shaft Assy, Locking (includes 4
thru 7)
9913-134-003 9913-134-003 9913-134-003 9913-134-003 9913-134-003 1
4 Shaft, Door Locking 9537-195-002 9537-195-002 9537-195-002 9537-195-002 9537-195-002 1
5 Cam, Locking 9095-040-002 9095-040-002 9095-040-002 9095-040-002 9095-040-002 1
6 Pin, Groove (1 1/4) 9451-181-005 9451-181-005 9451-181-005 9451-181-005 9451-181-005 1
7 Pin, Groove (3/4) 9451-181-004 9451-181-004 9451-181-004 9451-181-004 9451-181-004 1
Retaining Ring (c-clip) 8649-031-002 8649-031-002 8649-031-002 8649-031-002 8649-031-002 1
8 Spring, Lock Cam 9534-360-002 9534-360-002 9534-360-002 9534-360-002 9534-360-002 1
9 Handle, Door 9244-080-003 9244-080-003 9244-080-003 9244-080-003 9244-080-003 1
11 Pin, Door Handle (groove) 9451-181-006 9451-181-006 9451-181-006 9451-181-006 9451-181-006 1
* Screw, Hinge Mtg 5/16” x 3/4” 9545-014-009 9545-014-009 9545-014-009 9545-014-009 9545-014-009 3
* Lockwasher 5/16” Ext tooth 8641-582-009 8641-582-009 8641-582-009 8641-582-009 8641-582-009 3
* Shim, Loading Door Hinge, Thin 9552-036-001 9552-036-001 9552-036-001 9552-036-001 9552-036-001 AR
10 Door Hinge Assembly Mounts to
Tub Front
9955-029-002 9955-029-002 9955-029-002 9955-029-002 9955-029-002 1
13 Screw, Loading Door Mtg (5/16”
TF)
9545-056-001 9545-056-001 9545-056-001 9545-056-001 9545-056-001 3
* Rubber Edge (mounts to Front
Panel)
9059-063-004 9059-063-004 9059-063-002 9059-063-002 9059-063-002 1
* Nut, Keps 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 4
* Wiring Harness doorlock safety
switch assembly
9627-791-0 03 9627-791- 003 9627-791-0 03 9627-791- 003 9627-791-004 1
12 Loading Door Hinge Clamp w/
pin
9938-040-002 9938-040-002 9938-040-002 9938-040-002 9938-040-002 1
* Loading Door Hinge Clamp (No
Hinge Switch Pin) (NEW Style)
9079-122-003 9079-122-003 9079-122-003 9079-122-003 9079-122-003 1
14 Masking-Ring 9950-059-001 9950-059-001 9950-060-001 9950-060-001 9950-060-001 1
* Nut, Keps #10-32 UNF 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 4
15 Switch Assembly Complete Door
Close
9801-089-001 9801-089-001 9801-089-001 9801-089-001 9801-089-001 1
16 Switch Box 9041-087-001 9041-087-001 9041-087-001 9041-087-001 9041-087-001 1
17 Black Wire Door Close Switch 8220-063-026 8220-063-026 8220-063-026 8220-063-026 8220-063-026 1
18 Blue Wire Door Close Switch 8220-063-025 8220-063-025 8220-063-025 8220-063-025 8220-063-025 1
19 Bushing Insulating 9053-067-003 9053-067-003 9053-067-003 9053-067-003 9053-067-003 1
20 Nut Special Twin #4-40 8640-401-001 8640-401-001 8640-401-001 8640-401-001 8640-401-001 1
* Screw 4-40 x 5/8 9545-020-001 9545-020-001 9545-020-001 9545-020-001 9545-020-001 2
* Nut, Keps #10-32 UNF 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 2
* Door Switch Actuator 9008-004-001 9008-004-001 9008-004-001 9008-004-001 9008-004-001 1
21 Switch,Door Hinge Close 9539-461-007 9539-461-007 9539-461-007 9539-461-007 9539-461-007 1
98 99
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
98 99
14
3
2
6
4
7
8
11
9
14
11
13
12
1
Plunger Switch
5
18
20
15
21
17
16
19
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
