Key Description T-300 T-350 T-400 T-450 T-600 QTY
* Actuator Assembly (Includes 1-10,
Rod NOT included)
9892-015-001 9892-015-001 9892-015-001 9892-015-001 9892-015-001 1
11 Screw - hxwshdsl, 10-24 - 1.25f, ctd 9545-046-007 9545-046-007 9545-046-007 9545-046-007 9545-046-007 4
10 Cross Recessed PAn Hd Tapping
screw
9545-031-011 9545-031-011 9545-031-011 9545-031-011 9545-031-011 4
9 Screw -Hxwshrhdslsems, 6-32 x 3/16 9545-044-003 9545-044-003 9545-044-003 9545-044-003 9545-044-003 6
8 Motor & Gear Assembly 120v 9914-137-011 9914-137-011 9914-137-011 9914-137-011 9914-137-011 1
7 Spring - Extension 9534-350-001 9534-350-001 9534-350-001 9534-350-001 9534-350-001 1
6 Thermoactuator - Door Lock Relay
120v
9586-001-001 9586-001-001 9586-001-001 9586-001-001 9586-001-001 2
5 Arm - Door Lock 9001-063-001 9001-063-001 9001-063-001 9001-063-001 9001-063-001 1
4 Spacer, Plastic 9538-157-021 9538-157-021 9538-157-021 9538-157-021 9538-157-021 4
3 Bracket Slide Lock 9029-204-001 9029-204-001 9029-204-001 9029-204-001 9029-204-001 1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 9985-189-001 9985-189-001 9985-189-001 1
1 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 9985-190-001 9985-190-001 9985-190-001 1
* Rod, Door Lock 9497-225-011 9497-225-011 9497-225-012 9497-225-012 9497-225-010 1

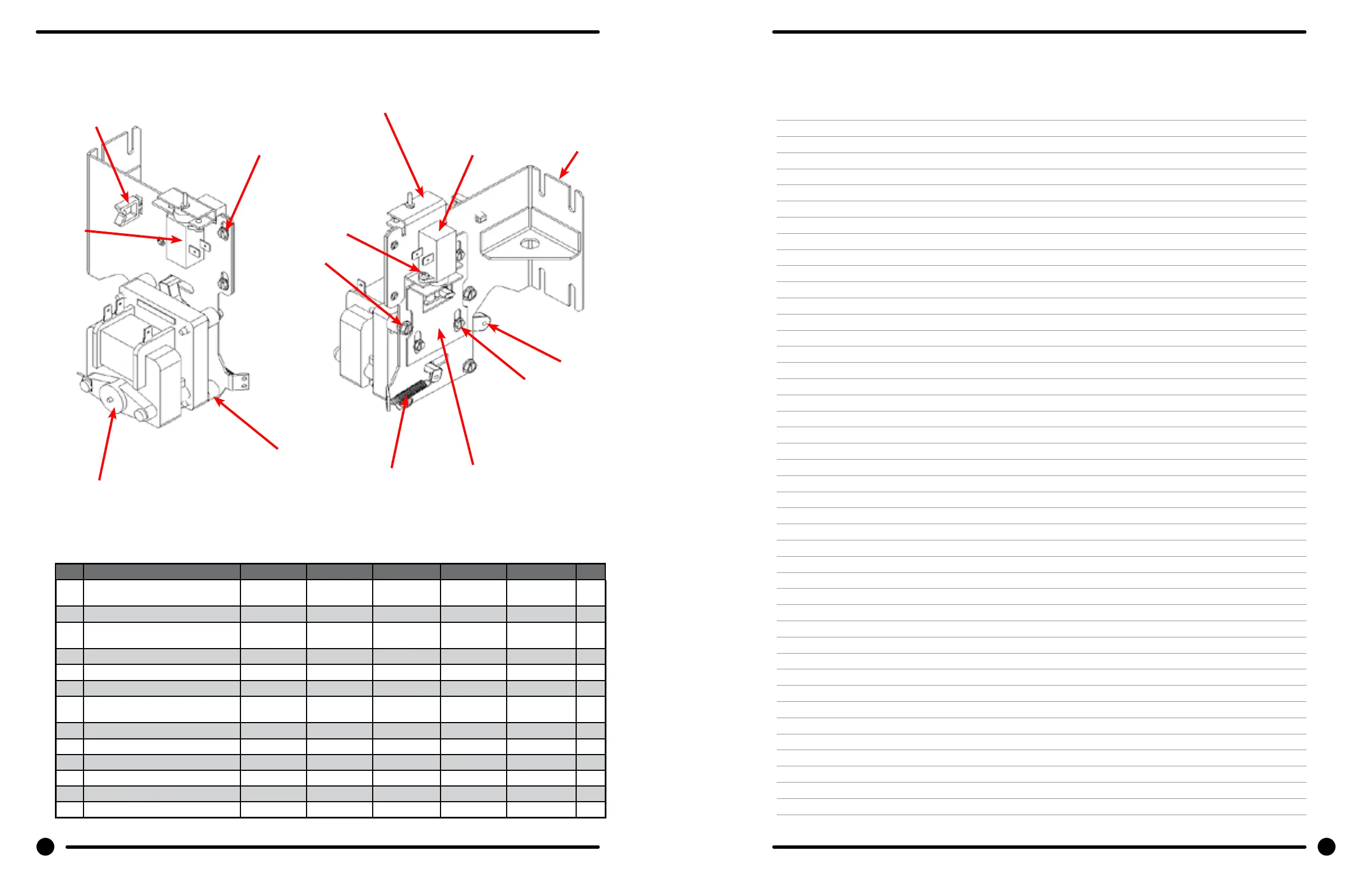

Gear Motor Door Lock Assembly
1
2
3
4
8
5
6
6
7
9
9
10
11
12
96 97
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
96 97
Notes
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
Coin
Handling
50Hz
Parts
Maintenance
Service Elec.
Compnents
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel

Table of Contents
