Dexter Laundry WCAD Series User Manual

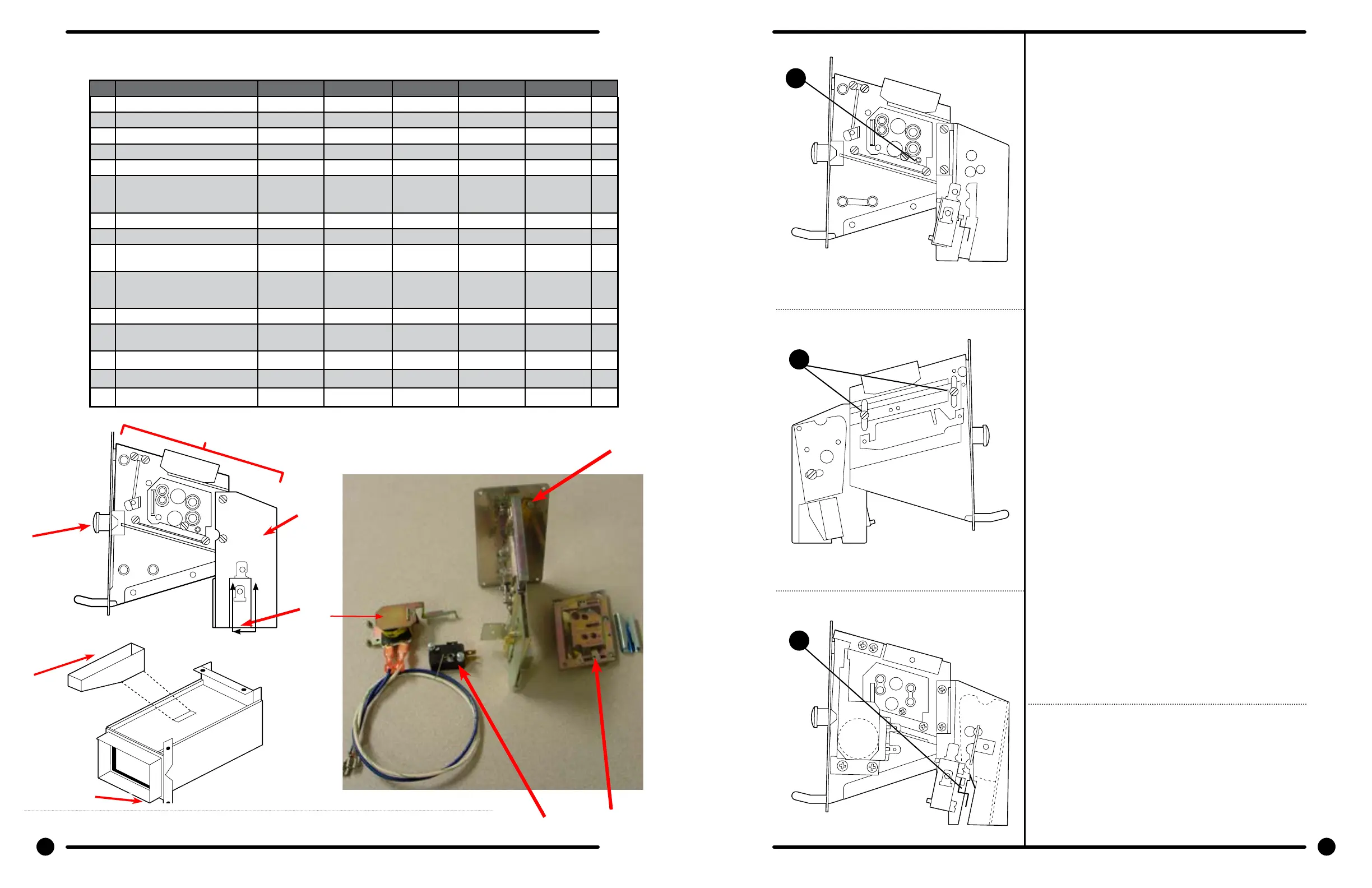

Coin Handling Group Part # Micro Switch
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
1 Vault, Assy Grey 9942-033-001 9942-033-001 9942-033-002 9942-033-002 9942-033-003 1
1 Vault, Assy. Black 9942-033-008 9942-033-008 9942-033-009 9942-033-009 9942-033-010
* Screw, 10Bx 1/2” Vault Mtg 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
2 Coin Chute Assy. 9119-031-001 9119-031-001 9119-031-001 9119-031-001 9119-031-001 1
* Screw, Chute Mtg 9545-008-001 9545-008-001 9545-008-001 9545-008-001 9545-008-001 1
3 Coin Acceptor chute without
penny rejector for mechcanical
drop (standard)
9119-025-002 9119-025-002 9119-025-002 9119-025-002 9119-025-002 1
* Screw, Acceptor Mtg 9545-020-004 9545-020-004 9545-020-004 9545-020-004 9545-020-004 4
* Nut 8640-424-002 8640-424-002 8640-424-002 8640-424-002 8640-424-002 4
4 Switch, Coin (ts single coin
mechanical drop)
9732-126-001 9732-126-001 9732-126-001 9732-126-001 9732-126-001 1
5 Coin Acceptor chute with penny
rejector for mechcanical drop
(optional)
9119-025-001 9119-025-001 9119-025-001 9119-025-001 9119-025-001
6 Button Coin Return Retainer 9486-133- 001 9486-133-001 94 86-133- 001 9486-133-001 9486-133-001 1
7 Coin Acceptor Mechcanical
Complete
9021-001-010 9021-001-010 9021-001-010 9021-001-010 9021-001-010 1
8 Solinoid, Coin Blocking (V-Series) 1
* Screw, Highth Bar, 3mm 9545-039-002 9545-039-002 9545-039-002 9545-039-002 9545-039-002 2
* Harness, Coin Switch V& A Series 9627-792- 001 9627-792-001 9627-792-001 9627-792-001 9627-792-001 1
4
4
Mechanical Acceptor
Standard Coin Drop Acceptor
The drop style coin acceptor contains a coin switch
that is actuated by each good coin that is accepted.
Removal
The coin acceptor is removed by loosening the two
Torx T-10 machine screws on the right side and by
removing completely the two Torx T-10 machine
screws on the left side (#T-10 Torx driver, Dexter
Pt. No. 8545-051-003). There are locking nuts on
the back side that will have to be held. Needle-nose
pliers work well for this. Sliding the acceptor to the
left will remove it from the slots in the front panel.
This gives access to the coin switch and acceptor for
adjustments.
Coin Thickness Adjustment (see
diagram)
On the right side of the acceptor there is a coin
thickness adjusting screw “A” with a locking nut. To
allow for dierent thickness coins the screw can be
turned in to accept thicker coins and turned out to
reject thicker coins. Start with a quarter of a turn on
this screw and be sure to retighten the lock nut after
adjustment.
Coin Height Adjustment (see diagram)
On the left side of the acceptor is a coin height
adjusting bar “B”. This bar is adjusted by loosening the
two mounting screws and moving both ends of the bar
up or down equal amounts. The bar should be raised
as high as possible while still accepting the correct
coins. If it is raised up too high, the good coins will be
rejected.
Coin Switch Adjustment (see diagram)
The normally open coin switch “C” should click (close)
soon after the coin hits the operator wire. However,
there must be enough travel to allow the switch to
reset (open) once the coin has passed. Adjustment
should be made by bending the wire very close to its
attachment point.
Left View Coin Drop Acceptor
Right View Coin Drop Acceptor
114 115
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
1
2
7
6
3 or
5
7
8
9
A
B
C
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
Coin
Handling
50Hz
Parts
Maintenance
Service Elec.
Compnents
