Dexter Laundry WCAD Series User Manual

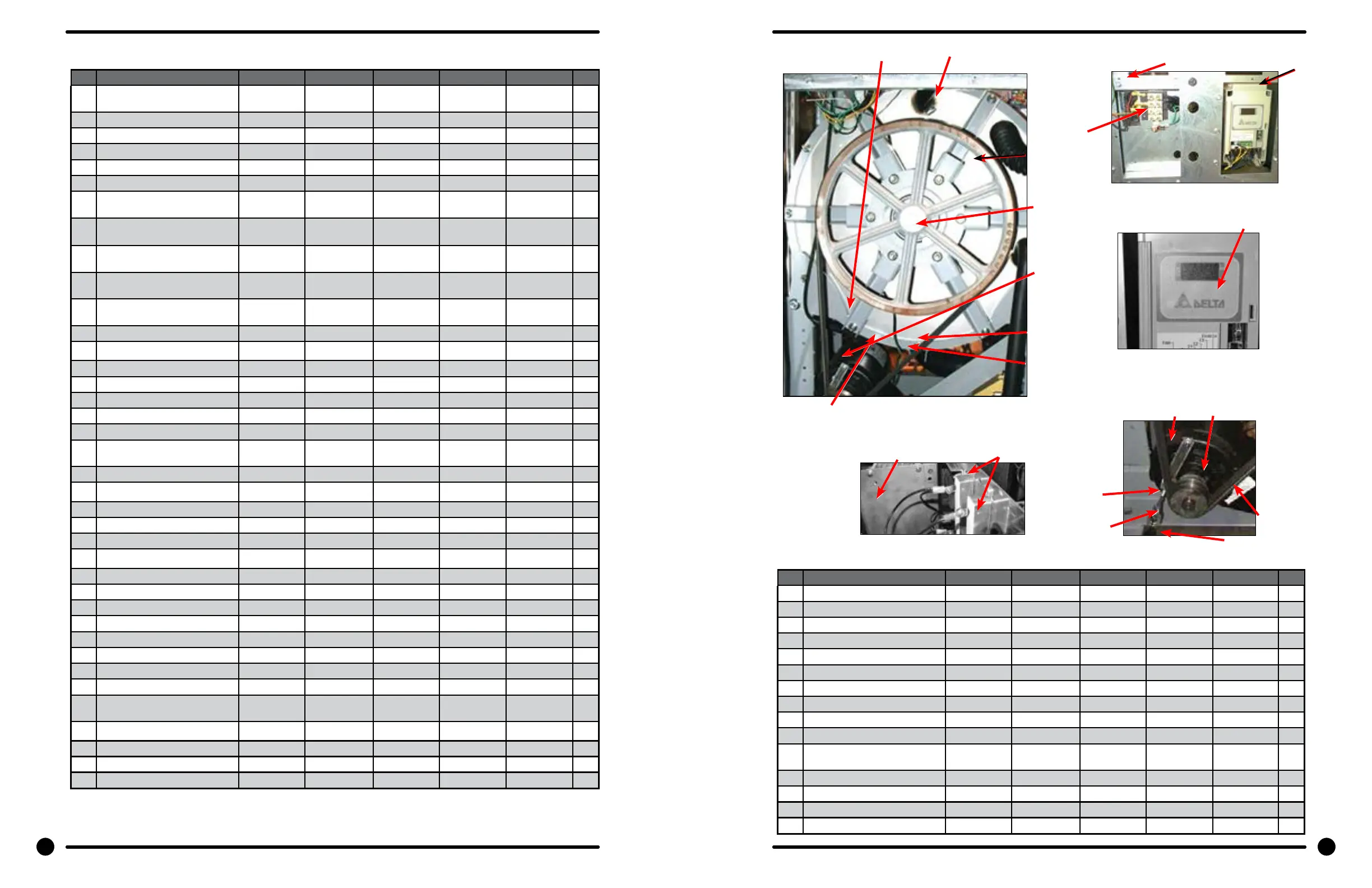

Rear View Access Part # by Model
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
1 Drive Motor, 3 Phase (Inverter
duty)
9732-127-011 9732-127-001 9732-127-012 9732-127-014 9732-127-012 1
Drive Motor After Serial #483620 9732-225-001
4 Pulley, Motor 9453-169-012 9453-180-001 9453-170-003 9 453-181-001 9453-170-003 1
* Set Screw,Sq.Hd(motor pulley) 9545-028-015 9545-028-015 9545-028-015 9545-028-015 9545-028-015 2
2 Rod, Motor Mtg 9497-222-002 9497-222-002 9497-222-002 9497-222-002 9497-222-004 1
* Screw (end of motor rod) 9545-029-005 9545-029-005 9545-029-005 9545-029-005 9545-029-005 1
* Lockwasher (end of motor rod) 8641-582-014 8641-582-014 8641-582-014 8641-582-014 8641-582-014 1
3 Collar, Shaft (w/set screws)
removed starting #530726
9076-052-002 9076-052-002 9076-052-002 9076-052-002 9076-052-002 2
* Motor Bushing (plastic)Before
Serial # 530726
9053-074-002 9053-074-002 9053-074-002 9053-074-002 9053-074-002 2
* Motor Bushing (Rubber) after Se-
rial # 530726
9053-082-001 9053-082-001 9053-082-001 9053-082-001 9053-082-001 2
* Clamp-Worm, 316SS, 1.5" (for
Rubber bushing) Start #530726
8654 -117-019 8654-117-019 8654-117-019 8654-117-019 8654-117-019 2
18 Strap Bracket, Motor Tension 9029-206-002 9029-206-001 9029-206-002 9029-206-002 9029-206-002 1
19 Nut, Strap to Motor 10/32 UNF 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 1
19 Washer #10 8641-581-006 8641-581-006 8641-581-006 8641-581-006 8641-581-006 1
20 Spring, Belt Tension 9534-319-002 9534-319-002 9534-319-002 9534-319-002 9534-319-002 1
5 Pulley, Driven 9908-041-002 9453-168-005 9453-168-004 9453-168-006 9453-168-003 1
* Tolerance Ring driven pulley 9487-234-002 9487-234-001 9487-234-001 9487-234-003 9487-234-003 1
6 Screw 1/2-13x1 1/4” 9545-017-009 9545-017-009 9545-017-009 1
6 Screw 5/8-11x1/1/2” Driven
pulley
9545-060-001 9545-060-001 1
6 Lockwasher 1/2” 8641-582-016 8641-582-016 8641-582-016 1
6 Lockwasher 5/8” 8641-582-018 8641-582-018 1
7 Washer, Flat 1/2” 8641-581-026 8641-581-026 8641-581-026 1
7 Washer, Flat 5/8x2 1/4” 8641-581-032 8641-581-032 1
8 Drive Belt 9040-076-004 9040-079-004 9040-079-005 1
8 Drive Belt 9040-076-005 9040-076-005 2
9 Channel, Rear 9081-132-001 9081-132-001 9081-135- 001 9081-135-001 9081-134-001 1
* Screw Mtg rear channel 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Nut, Spring Rear Channel MTG 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 4
23 VFD Delta “S” drive 120 volt 9732-345-015 1
23 VFD Delta “S” drive 208-240 volt 9375-016-003 9375-015-010 9732-345-001 9375-015-012 9732-345-002 1
24 Braking resistors (200 ohm) 9483-004-002 1
24 Braking resistors (200 ohm) 9483-004-002 9483-004-002 9483-004-002 9483-004-002 2
24 Braking resistors (160 ohm) 2
25 Bracket assembly (drive mount-
ing)
9985-157-001 9 029-157- 001 9985-157-001 9985-157-001 9985-157-001 1
31 Terminal Block Channel Mount 9897-033-002 9897-033-002 9897-033-002 1
Screw to Mtg Brake Resistor 9545-012-008 9545-012-008 9545-012-008 9545-012-008 9545-012-008 4
Nut 10-32 Mtg Brake Resistor 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 4
Drive Cover Plate 9074-267-001 9074-278-001
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
12 Hose, Overow Vent Top 9242-463-001 9242-463-002 9242-463-002 9242-463-003 9242-463-003
12 Clamp, Hose Vent 8654-117-0 08 8654-117-008 8654-117-008 8654-117- 008 8654 -117-008 2
11 Hose, Overow to drain 9242-449-002 9242-449-002 9242-449-002 9242-449-002 9242-449-002 1
11 Clamp, Hose overow to drain 8654-117- 018 8654-117-018 8654-117-018 8654-117-018 8654 -117-018 2
15 Hose, Pressure Switch 9242-175-000 9242-175-000 9242-175-007 9242-175-007 9242-175-001 1
* Clamp, Pressure Switch Hose 8654 -117-015 8654-117-015 8654-117-015 8654-117-015 8654-117-015 1
Vaccuum Breaker Mtg Bracket 9029-065-001 9029-065-001 9029-065-001 9029-077-001 9029-077-001 1
13 Vaccum Breaker ALL 9610-001-001 9610-001-001 9610-001-001 9610-001-001 9610-001-001 1
* Clamp, Hose to Vacuum Breaker 8654-117-014 8654-117-008 8654 -117-008 8654-117- 014 8654-117- 014 1
16 Hose, Vacuum Breaker to tub 9242-458-001 9242-458-001 9242-458-002 9242-458-002 9242-458-002 1
14 Plastic Plug 7/8” Electrical Con-
nection
9456-041-006 9456-041-006 9456-041-006 9456-041-006 9456-041-006 2
* Panel Assy., Back 9454-632-001 9989-632-001 9989-446-002 9989-446-002 9989-446-001 1
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 10
* Nut, Spring 8640-399-007 8640-399-007 8640-399-007 8640-399-007 8640-399-007 6
* Screw, To Base-1/4x3/4 9545-030-002 9545-030-002 9545-030-002 9545-030-002 9545-030-002 1
90 91
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
90 91
1
24
25
31
15
4
23
12
6 & 7
18 &
19
2
3
5
8
22
20
1
15
21
23
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
Coin
Handling
50Hz
Parts
Maintenance
Service Elec.
Compnents
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel
