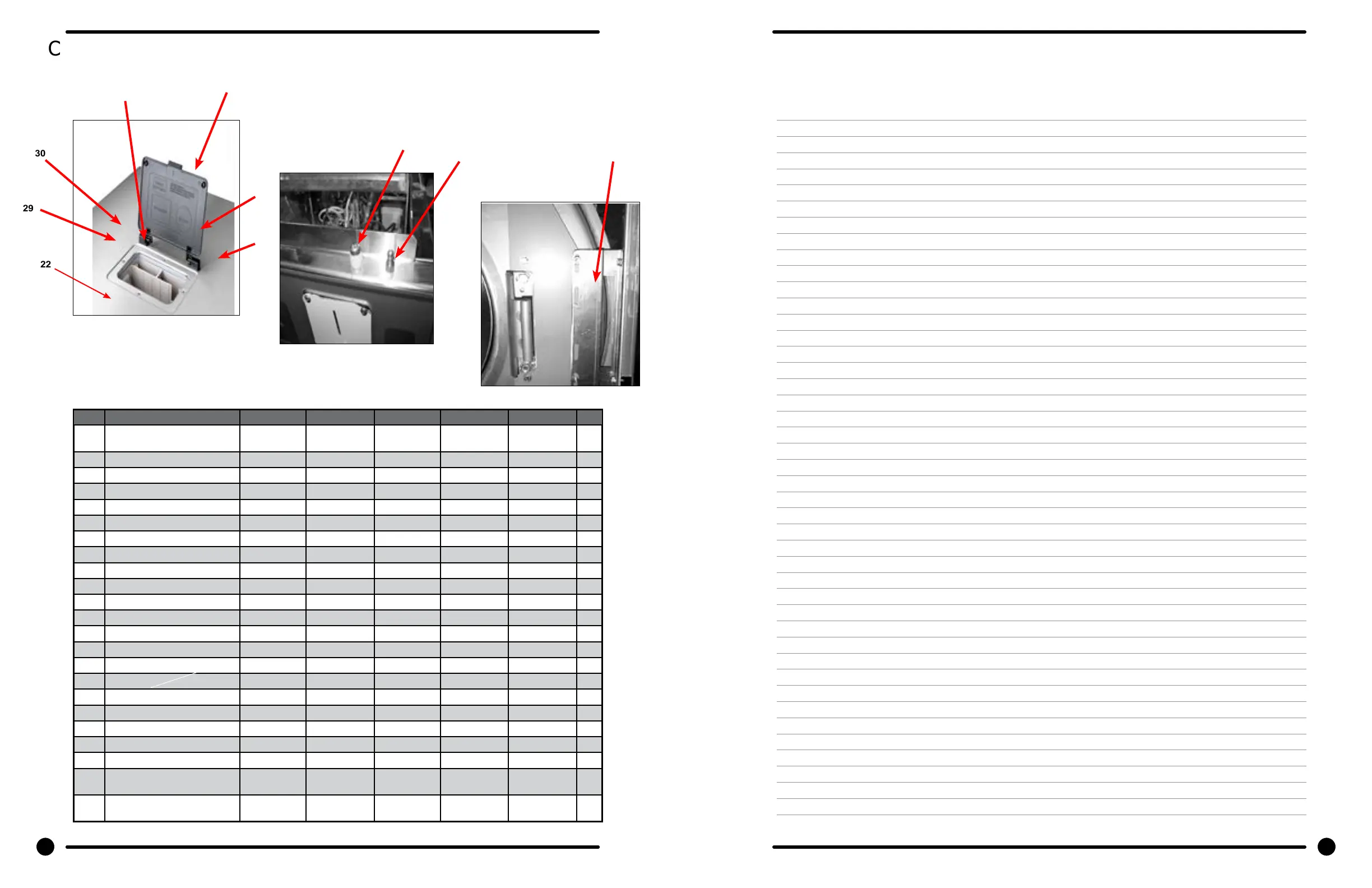

Cabinet and Front Panel Group Part # by Model Continued
Key Description T-30 0 T-350 T-40 0 T-450 T- 600 QTY
21 Panel Top, Assembly (includes
catch)
9989-498-001 9989-498-002 9989-498-003 9989-498-004 9989-498-005 1
* Catch, Top Panel 9086-017-001 9086-017-001 9086-017-001 9086-017-001 9086-017-001 2
* Rivit-Catch, Top Panel 8638-190-009 8638-190-009 8638-190-009 8638-190-009 8638-190-009 4
22 Lock, Top (w/Key) 8650-012-003 8650-012-003 8650-012-003 8650-012-003 8650-012-003 1
* Key, Top- # 6324 6292-006-007 6292-006-007 6292-006-007 6292-006-007 6292-006-007 1
* Cam, Lock-Top 9095-038-001 9095-038-001 9095-038-001 9095-038-001 9095-038-001 1
* Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 8640-426-001 8640-426-001 8640-426-001 1
* Washer Flat 5/16 8641-581-008 8641-581-008 8641-581-008 8641-581-008 8641-581-008 1
23 Screw, Locator 9545-008-023 9545-008-023 9545-008-023 9545-008-023 9545-008-023 2
24 Plastic Sleeve, Locator 9355-001-001 9355-001-001 9355-001-001 9355-001-001 9355-001-001 2
25 Locator Post 9467-024-001 9467-024-001 9467-024-001 9467-024-001 9467-024-001 2
* Nut, Locator Post 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
26 Door, Dispenser 9108-095-005 9108-095-005 9108-095-005 9108-095-005 9108-095-005 1
27 Post, Door Mounting 9467-025-001 9467-025-001 9467-025-001 9467-025-001 9467-025-001 2
* Pin, Plain-SS 9451-191-001 9451-191-001 9451-191-001 9451-191-001 9451-191-001 2
* Screw, Disp.Post Mtg 9545-045-002 9545-045-002 9545-045-002 9545-045-002 9545-045-002 4
28 Dispenser, Soap 9122-005-004 9122-005-004 9122-005-004 9122-005-004 9122-005-004 1
29 Gasket, Dispenser 9206-416-001 9206-416-001 9206-416-001 9206-416-001 9206-416-001 1
* Nut,Spring-SS 8640-399-007 8640-399-007 8640-399-007 8640-399-007 8640-399-007 4
30 Screw, Disp. Mtg 9545-008-012 9545-008-012 9545-008-012 9545-008-012 9545-008-012 4
* Flow Restrictor 9475-002-002 9475-002-002 9475-002-002 9475-002-002 9475-002-002 2
* Plastic Plug 1 1/2”-(inside
cylinder)
9456-041-007 9456-041-007 9456-041-007 9456-041-007 9456-041-007 1
31 Bracket, Side Panel under front
panel
9029-066-001 9029-066-001 9029-165-001 9029-165-001 9029-165-001 1
