Dexter Laundry WCAD Series User Manual

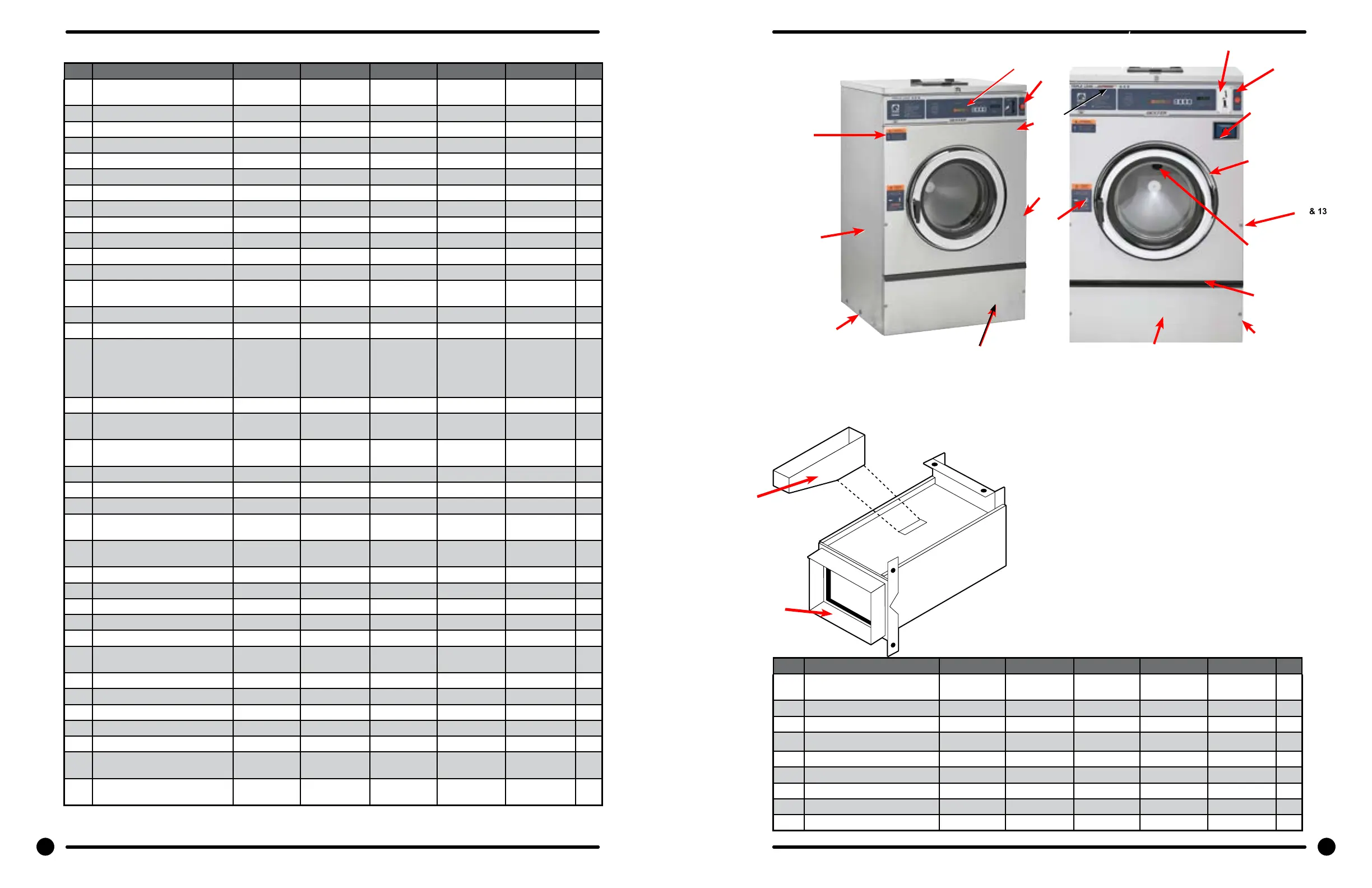

Cabinet and Front Panel Group Part # by Model
Key Description T-300 T-350 T-40 0 T-450 T-60 0 QTY
1 Panel, Side (Left or Right) -
stainless
9732-359-006 9732-359-007 9732-359-008 2
1 Panel, Right Side-stainless 9989-639-001 9989-640-001 1
1 Panel, Left Side - stainless 9989-639-002 9989-640-002 1
2 Screw, (Side Panel to Base) 9545-018-018 9545-018-018 9545-018-013 9545-018-013 6
2 Screw, (Side Panel to Base) 9545-018-013 8
2 Nut, Hex 1/4-20 UNC 8640-414-006 8640-414-006 8640-414-006 8640-414-006 6
2 Nut, Hex 1/4-20 UNC 8640-414-006 8
* Pad-Foam, Side Panel 0904-904-001 0904-904-001 0904-904-001 0904-904-001 0904-904-001 2
3 Vault Assembly, Coin 9942-033-008 9942-033-008 9942-033-009 9942-033-009 9942-033-009 1
* Screw, #10B x 1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
4 Chute-Coin 9119-031-001 9119-031-001 9119-031-001 9119-031-001 9119-031-001 1
* Screw, 10B x 1/4 9545-008-001 9545-008-001 9545-008-001 9545-008-001 9545-008-001 1
* Bracket, Side Panel under front
panel
9029-066-001 9029-066-001 9029-165-001 9029-165-001 9029-165-001 1
* Nut, Hex (to tub front) 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 2
* Screw, #10B x 1/2 9545-008-031 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
5 Panel, Control (Mounts Name-
plate) If Replacing before Serial
# 530002 Will require 2 of
Coin Mech Retaining Brackets #
9486-149-001
9989-522-001 9989-522-001 9989-523-001 9989-523-001 9989-524-001 1
* Screw, Control Panel to Sides 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
6 Nameplate Decal, Control Panel
(Blue)
9412-135-001 9412-156-001 9412-137-001 9412-159-001 9412-139- 001 1
6 Nameplate Decal, Control Panel
(Black)
9412-168-001 9412-169-001 9412-170-001 9412-166-001 9412-171- 001 1
7 Label-Nameplate, RH (Blue) 8502-744-002 8502-744-002 1
7 Label-Nameplate, RH (Black) 8502-744 -001 8502-74 4-0 01 1
* Stop Button Mounting Plate 9452-725-001 9452-725-001 9452-725-001 9452-725-001 9452-725-001 1
8 Kit-Stop button with harness &
Switch
9732-223-001 9732-223-001 9732-223-001 9732-223-001 9732-223-001 1
9 Accecptor, Coin-Optical switch
w/harness
9021-092-002 9021-092-002 9021-092-002 9021-092-002 9021-092-002 1
* Retainer-Dual coin Accecptor 9486-149-001 9486-149-001 9486-149-001 9486-149-001 9486-149-001 2
* Screws, Coin Accecptor 9545-053-002 9545-053-002 9545-053-002 9545-053-002 9545-053-002 4
10 Panel Assy, Front 9454-781- 001 9454-781-001 9454-659-001 9454-659-001 9454-669-001 1
11 Band, Edge Protector 9059-063-004 9059-063-004 9059-063-002 9059-063-002 9059-063-002 1
* Screw, Hex- To Control Panel 9545-008-031 9545-008-031 9545-008-031 9545-008-031 9545-008-031 2
* Nut, Spring- To Control Panel
10/32
8640-442-001 8640-442-001 8640-442-001 8640-442-001 8640-442-001 4
12 Screw, Flat Head- Front to Sides 9545-008-014 9545-008-014 9545-008-014 9545-008-014 9545-008-014 2
13 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 8641-585-001 8641-585-001 2
* Nut, Spring-To Front Panel 8640-442-001 8640-442-001 8640-442-001 8640-442-001 8640-442-001 2
14 Label, Door Opening-Blue 8502-723-001 8502-723-001 8502-723-001 8502-723-001 8502-723-001 1
14 Label, Door Opening-Black 8502-742-001 8502-742-001 8502-742-001 8502-742-001 8502-742-001
15 Label, Warning Risk of Injury-
Blue
8502-722-002 8502-722-002 8502-722-002 8502-722-002 8502-722-002 1
Label, Warning Risk of Injury-
Black
8502-741-001 8502-741-001 8502-741-001 8502-741-001 8502-741-0 01 1
Key Description T-30 0 T-350 T-40 0 T-450 T- 600 QTY
16 Door, Lower Service (includes
handle & Rivits)
9960-286-001 9960-286-001 9960-286-002 9960-286-002 9960-286-002 1
17 Handle (bumper guard) 9244-086-001 9244-086-001 9244-086-002 9244-086-002 9244-086-002 1
* Rivet 9491-009-003 9491-009-003 9491-009-003 9491-009-003 9491-009-003 4
18 Screw Mtg., Flat Head 9545-008-014 9545-008-014 9545-008-014 9545-008-014 9545-008-014 2
19 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 8641-585-001 8641-585-001 2
* Nut, Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 2
20 Coin Box Assy, Blue Small 9807-099-001 9807-099-001 9807-099-001 9807-099-001 9807-099-001 1
Coin Box Assy, Black Small 9807-099-003 9807-099-003 9807-099-003 9807-099-003 9807-099-003 1
4
3
86 87
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
86 87
5
8
10
14
2
16
15
7
6
11
16
17
1
16
9
12 & 13
12 & 13
18 & 19
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
Coin
Handling
50Hz
Parts
Maintenance
Service Elec.
Compnents
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel
