Dexter Laundry WCAD Series User Manual

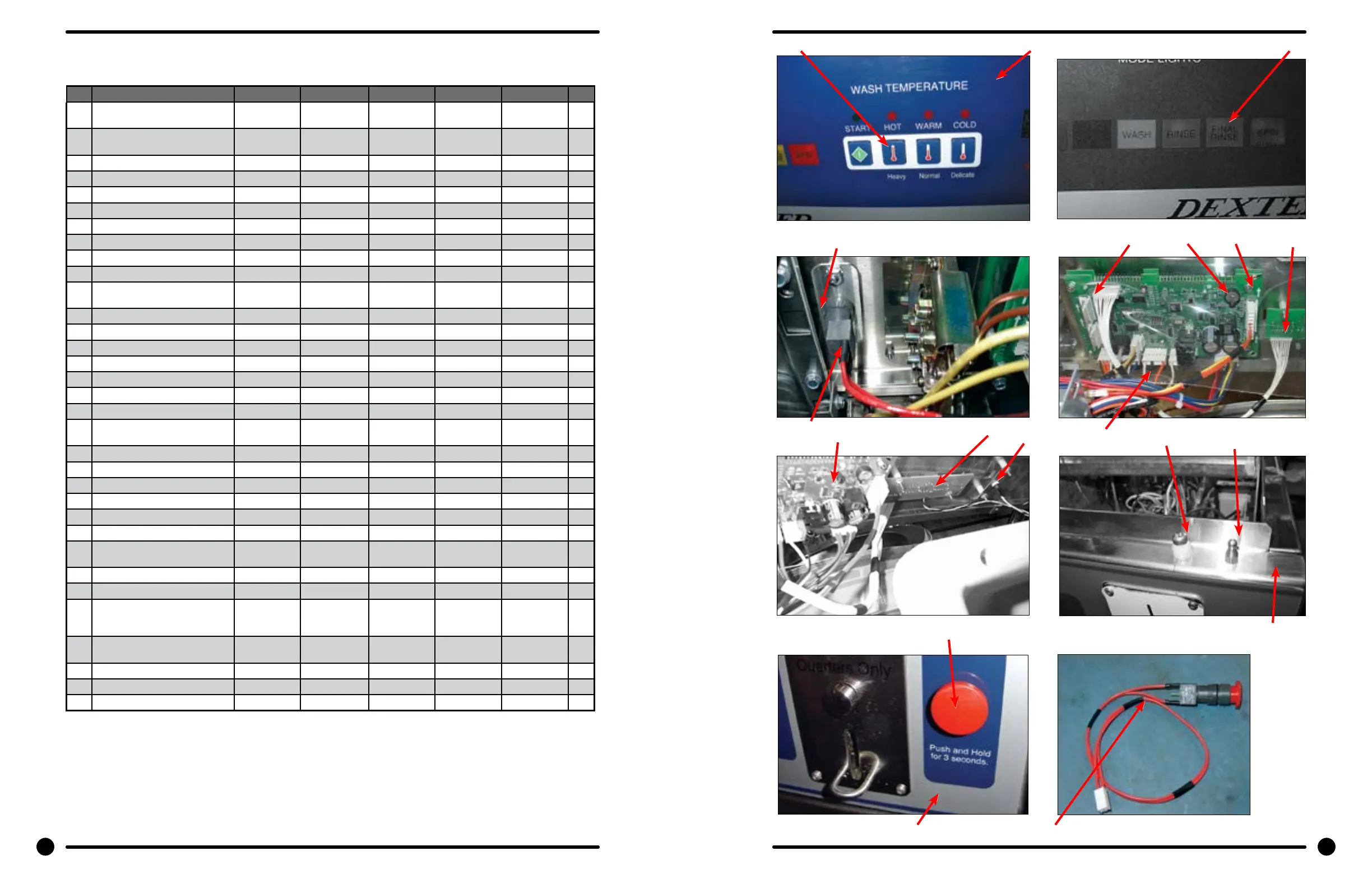

Control Panel Part # by Model
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
1 Panel Control Assembly(panel
only)
9989-522-001 9989-522-001 9989-523-001 9989-523-001 9989-524-001 1
* Screw, Hxwshrhdundct #10Bx
1/2”
9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
2 Post Locator Top 9467-024-001 9467-024-001 9467-024-001 9467-024-001 9467-024-001 2
* Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
3 Locator Panel 9355-001-001 9355-001-001 9355-001-001 9355-001-001 9355-001-001 2
* Screw FillHDCR 10Bx1/2” Guide 9545-008-023 9545-008-023 9545-008-023 9545-008-023 9545-008-023 2
* Spacer Pushbutton (Micro) 9538-178-001 9538-178-001 9538-178-001 9538-178-001 9538-178-001 1
* Retainer Pushbutton (Micro) 9486-150-001 9486-150-001 9486-150-001 9486-150-001 9486-150-001 1
* Nut Hexelasticstop #4-40 8640-424-002 8640-424-002 8640-424-002 8640-424-002 8640-424-002 2
10 Pushbutton Control (coin) 9035-062-001 9035-062-001 9035-062-001 9035-062-001 9035-062-001 1
7 PCB assembly Control /Display
STOP
9473-009-002 9473-009-002 9473-009-002 9473-009-002 9473-009-002 1
11 Spacer Plastic #6x9/16 9538-157-018 9538-157-018 9538-157-018 9538-157- 018 9538-157-018 5
11 Nut Elasticstop #6-32 8640-411-002 8640-411-002 8640-411-002 8640-411-002 8640-411-002 5
12 Harness LEDPCB 9627-797-001 9627-797-001 9627-797-001 9627-797-001 9627-797-001 1
8 Harness Doorlock, Switches 9627-791-003 9627-791-003 9627-791-003 9627-791-003 9627-791-004 1
16 PCB assembly Mode lights 9473-005-001 9473-005-001 9473-005-001 9473-005-001 9473-005-001 1
* Spacer Plastic #6x9/16 9538-157- 018 9538-157-018 9538-157-018 9538-157-018 9538-157-018 2
* Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
19 Light, LED,ADD BLEACH As-
sembly
9794-001-001 9794-001-001 9794-001-001 9794-001-001 9794-001-001 1
* Spacer Plastic #6x9/16 9538-157- 018 9538-157-018 9538-157-018 9538-157-018 9538-157-018 2
* Nut Hexeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
9 Nameplate,Control Panel (Blue) 9412-135-0 01 9412-156-001 9412-137-001 9412-159-001 9412-139-001 1
9 Nameplate,Control Panel (Black) 9412-168-001 9412-169-001 9412-170-001 9412-166-001 9412-171-0 01 1
9 Label Name Plate RH (Blue) 8502-744-002 8502-744-002 N.A. N.A. N.A. 1
Label Name Plate RH (Black) 8502-74 4-0 01 8502-744-0 01 N.A. N.A. N.A. 1
22 Switch Assembly Emergency
Stop (includes wire harness)
9732-223-001 9732-223-001 9732-223-001 9732-223-001 9732-223-001 1
* Spacer Plastic #8x5/16 E-Stop 9538-157-020 9538-157-020 9538-157-020 9538-157-020 9538-157-020 2
* Nut HexKep #8-32 E-Stop 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 2
* Solenoid Ass’y, Door Locking
(see Door Lock Group for parts
breakdown)
9922-011-001 9922-011-001 9922-011-001 9892-014-001 9922-011-001 1
* Hex Nuts (mounting solenoid
assy. to control panel)
8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 3
26 Battery 8612-001-001 8612-001-001 8612-001-001 8612-001-001 8612-001-001 1
* Plastic Shield over main PCB 9550-184-001 9550-184-001 9550-184-001 9550-184-001 9550-184-001 1
27 Plate to mount e-stop button 9452-725-001 9452-725-001 9452-725-001 9452-725-001 9452-725-001 1
110 111
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
110 111
22
22
16
19
22
8
3 2
1
9
7
10 16
12 26
11
9
16
27
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
Coin
Handling
50Hz
Parts
Maintenance
Service Elec.
Compnents
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel
