Dexter Laundry WCAD Series User Manual

1
33
21
18
9
12
15
8 6
22
5
12
11
17
19
7
14
13
11
4
3
10
16
20

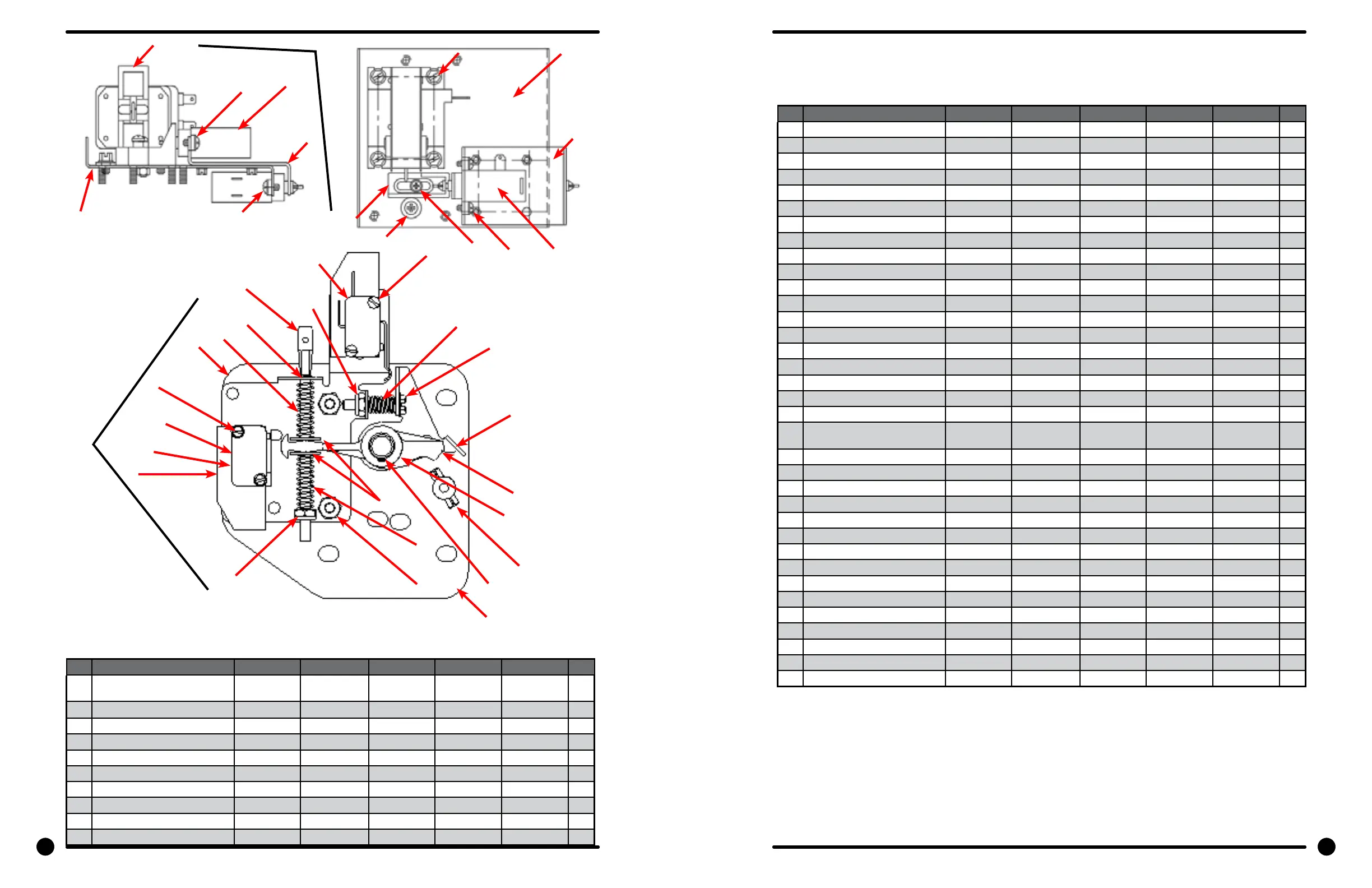

Door Latching Assembly Part # by Model
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
33 Latching Assy, Complete (#1-22)
(includes #1 thru #22)
9885-024-001 9885-024-001 9885-024-001 9885-024-001 9885-024-001 1
1 Plate Assy, Door Lock 9982-346-001 9982-346-001 9982-346-001 9982-346-001 9982-346-001 1
2 Washer, Flat 8641-581-030 8641-581-030 8641-581-030 8641-581-030 8641-581-030 1
3 Actuator, Latching Switch 9008-005-001 9008-005-001 9008-005-001 9008-005-001 9008-005-001 1
4 Pawl, Locking 9732-346-002 9732-346-002 9732-346-002 9732-346-002 9732-346-002 1
5 Washer, Spring 8641-569-003 8641-569-003 8641-569-003 8641-569-003 8641-569-003 1
6 Ring, Retaining 9487-200-004 9487-200-004 9487-200-004 9487-200-004 9487-200-004 1
7 Bracket Switch 9029-163-001 9029 -163-001 9029-163-001 9029 -163-001 9029-163-001 1
8 Nut, Hex 10-32 UNF 8640-413-002 8640-413-002 8640-413-002 8640-413-002 8640-413-002 2
9 Spring, Actuating 9534-364-002 9534-364-002 9534-364-002 9534-364-002 9534-364-002 1
34
26
23
24
29
30
28
27
31
24
23
30
29
30
25
Original Solenoid Style Door Lock Part # by Model
(continued)
Key Description T-30 0 T-350 T-40 0 T-450 T-600 QTY
10 Screw, Hx. 10-32 x 1” 9545-012-020 9545-012-020 9545-012-020 9545-012-020 9545-012-020 1
11 Nut, Elastic Stop 10-32 8640-413-004 8640-413-004 8640-413-004 8640-413-004 8640-413-004 2
12 Spring, Return 9534-364-001 9534-364-001 9534-364-001 9534-364-001 9534-364-001 2
13 Pin, Guide 9451-193-001 9451-193-001 9451-193-001 9451-193-001 9451-193-001 1
14 Ring, Retaining 9487-200-005 9487-200-005 9487-200-005 9487-200-005 9487-200-005 1
15 Washer 8641-581-031 8641-581-031 8641-581-031 8641-581-031 8641-581-031 1
16 Switch, Latching Sensing 9539-461-008 9539-461-008 9539-461-008 9539-461-008 9539-461-008 1
17 Shield, Switch 9550-169-003 9550-169-003 9550-169-003 9550-169-003 9550-169-003 3
18 Screw 4-40 x 5/8” 9545-020-001 9545-020-001 9545-020-001 9545-020-001 9545-020-001 2
18 Nut, Twin 4-40 8640-401-001 8640-401-001 8640-401-001 8640-401-001 8640-401-001 1
19 Switch, Locking Sensing 9539-461-007 9539-461-007 9539-461-007 9539-461-007 9539-461-007 2
20 Actuator, Switch Locking 9008-006-003 9008-006-003 9008-006-003 9008-006-003 9008-006-003 1
21 Screw 4-40 x 1 1/8” 9545-020-003 9545-020-003 9545-020-003 9545-020-003 9545-020-003 2
21 Nut, Twin 4-40 8640-401-001 8640-401-001 8640-401-001 8640-401-001 8640-401-001 1
22 Pin, Dowel 9451-181-004 9451-181-004 9451-181-004 9451-181-004 9451-181-004 1
* Spacer Sensor 9538-182- 001 9538-182-0 01 9538-182-001 9538-182-001 9538-182-001 *
* Shim, Door Lock, Thin 9552-037-001 9552-037-001 9552-037-001 9552-037-001 9552-037-001 AR
* Screw, Lock mtg 1/4”-20 x 3/4” 9545-018-004 9545-018-004 9545-018-004 9545-018-004 9545-018-004 3
* Lockwasher 1/4” Ext tooth 8641-582-007 8641-582-007 8641-582-007 8641-582-007 8641-582-007 3
34 Solenoid Ass’y, Door Locking
(includes 23 thru 32)
9922-011-001 9922-011-001 9922-011-001 9922-011-001 9922-011-001 1
23 Bracket, (Door Locking Solenoid) 9029-073-001 9029-073-001 9029-073-001 9029-073-001 9029-073-001 1
24 Bracket Ass’y, Solenoid Slide 9985-169-001 9985-169-001 9985-169-001 9985-169-001 9985-169-001 1
25 Solenoid 120V 60 hz 9536-074-001 9536-074-001 9536-074-001 9536-074-001 9536-074-001 1
26 Screw, Solenoid Mtg 9545-008-001 9545-008-001 9545-008-001 9545-008-001 9545-008-001 4
27 Stop, Door Lock Solenoid 9540-036-002 9540-036-002 9540-036-002 9540-036-002 9540-036-002 1
28 Screw, Shoulder 9545-061-001 9545-061-001 9545-061-001 9545-061-001 9545-061-001 1
28 Nut, Keps #6 8640-411-002 8640-411-002 8640-411-002 8640-411-002 8640-411-002 1
29 Thermoactuator 120 V 9586-001-001 9586-001-001 9586-001-001 9586-001-001 9586-001-001 2
30 Screw #6 x 5/16” 9545-031-011 9545-031-011 9545-031-011 9545-031-011 9545-031-011 4
31 Spacer, Plastic 9538-157-004 9538-157- 004 9538-157-004 9538-157-004 9538-157-004 1
31 Spacer, Met al 9538-166-00 4 9538-166- 004 9538-166-004 9538-166 -004 9538-166- 004 1
31 Screw, Cross Recessed 9545-010-001 9545-010-001 9545-010-001 9545-010-001 9545-010-001 1
31 Nut, Keps #8 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 1
* Nut, Sol. Brkt. to Control Panel 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 3
* Rod, Pull 9497-225-004 9497-225-004 9497-225-006 9497-225-006 9497-225-003 1
94 95
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
94 95
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
Coin
Handling
50Hz
Parts
Maintenance
Service Elec.
Compnents
Accessories
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel
