Dexter Laundry WCAD Series - Wiring Diagrams and Schematics

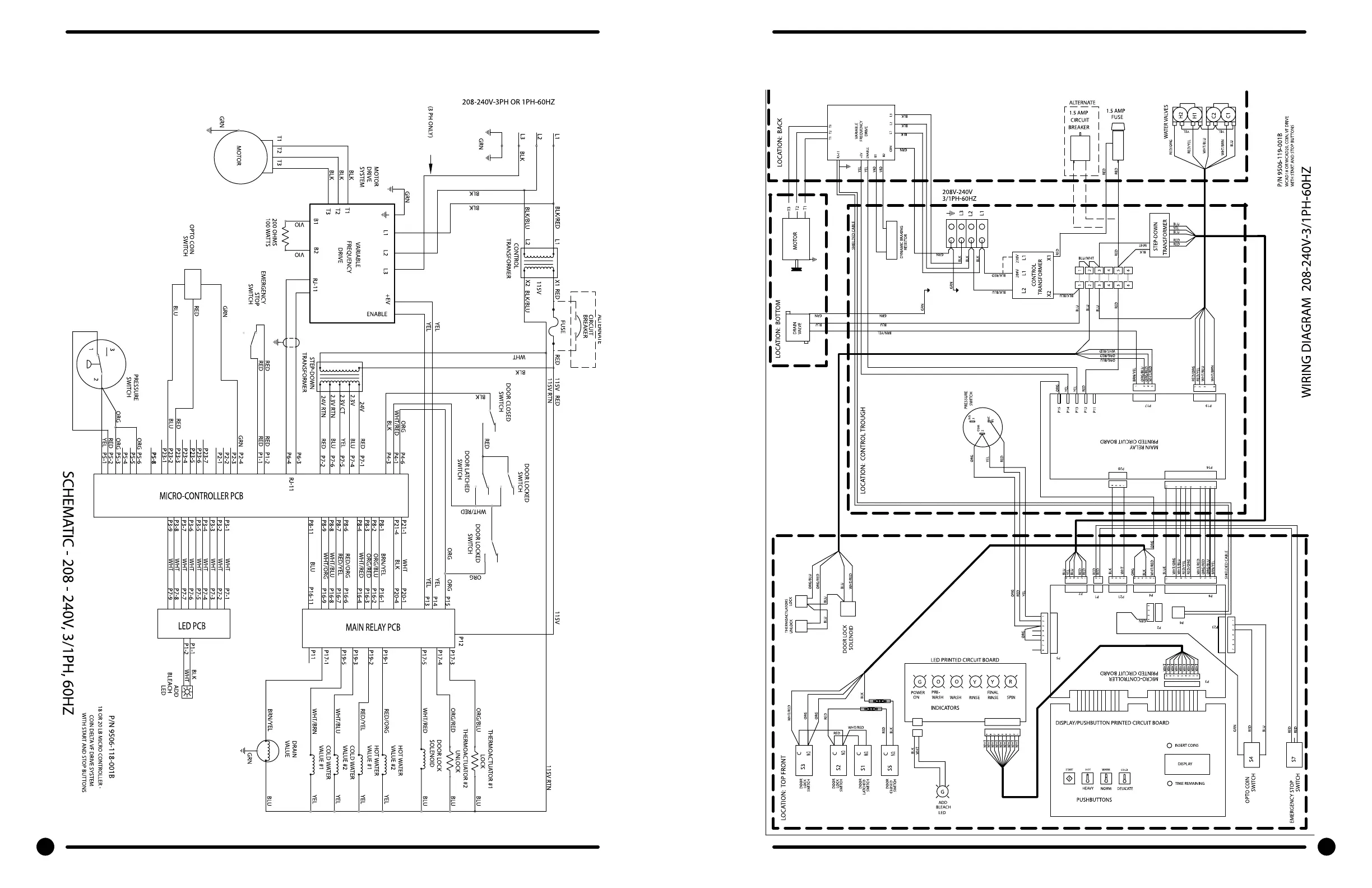

20lb. Non-Express: U.S Optical Acceptor Schematic 208-240V
20lb. Non-Express: U.S Optical Acceptor Diagram 208-240V
