Dexter Laundry WCAD Series - Page 78

30Lb. Express: Non-Express:

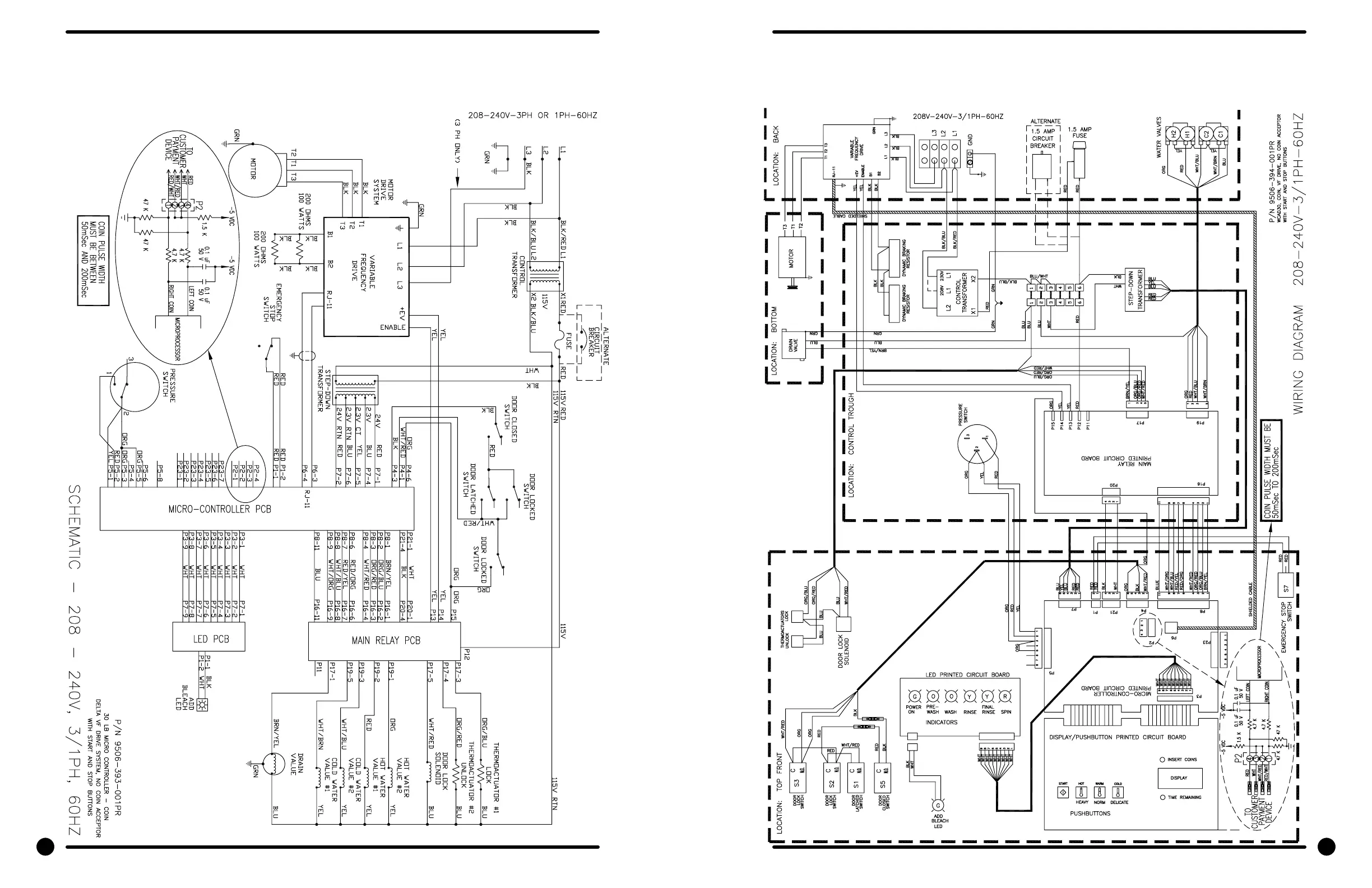

CN (No Coin Acceptor) Schematic 208-240 Volt Wiring
30Lb. Express: Non-Express:
CN (No Coin Acceptor) Schematic 208-240 Volt Wiring
154 155
Part # 8533-072-001 3/22 Part # 8533-072-001 3/22
