MCQ-PRO RFID Reader — Installation and Tuning Manual Version 1.00
Page 20 of 89
3. In the “Single Block Operations” box, select the block you want to write and enter its
data as hexadecimal bytes. You can pad bytes with whitespaces if you wish, but this is
not mandatory.

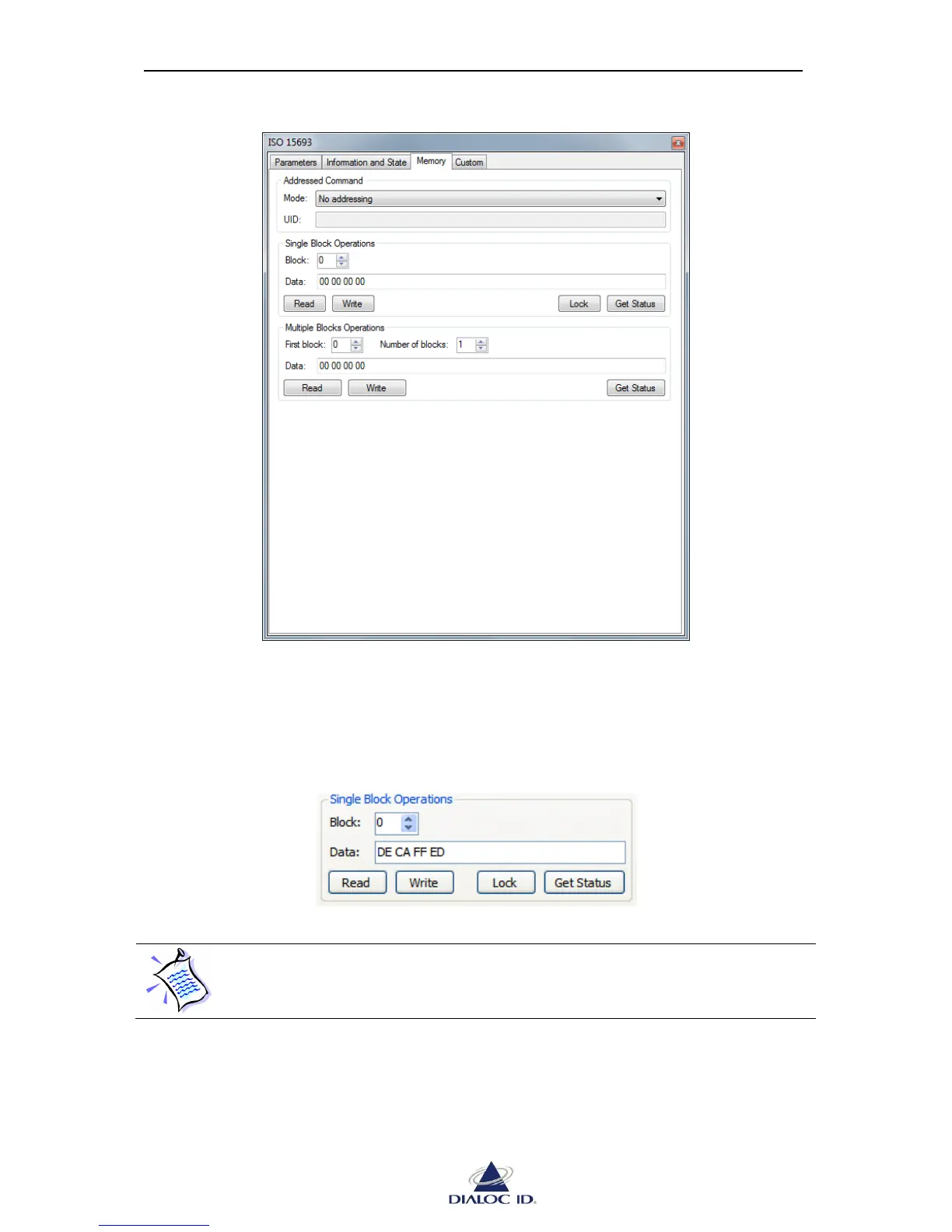

Figure 12: Single Block Operations
The length (in bytes) of a single block depends on the manufacturer, but most
ISO 15693 tags use four bytes blocks.
4. Place a single ISO 15693 tag in the radio field of channel #1 antenna.
