Operating instructions, SM-110/-111
Design and function
16
5
5.2 Design of knife grinding and honing machine
SM-110 and SM-111
5
1
4
7
2
10
(only SM-111)
8911
1
6
12
3
14
13
(only SM-111)

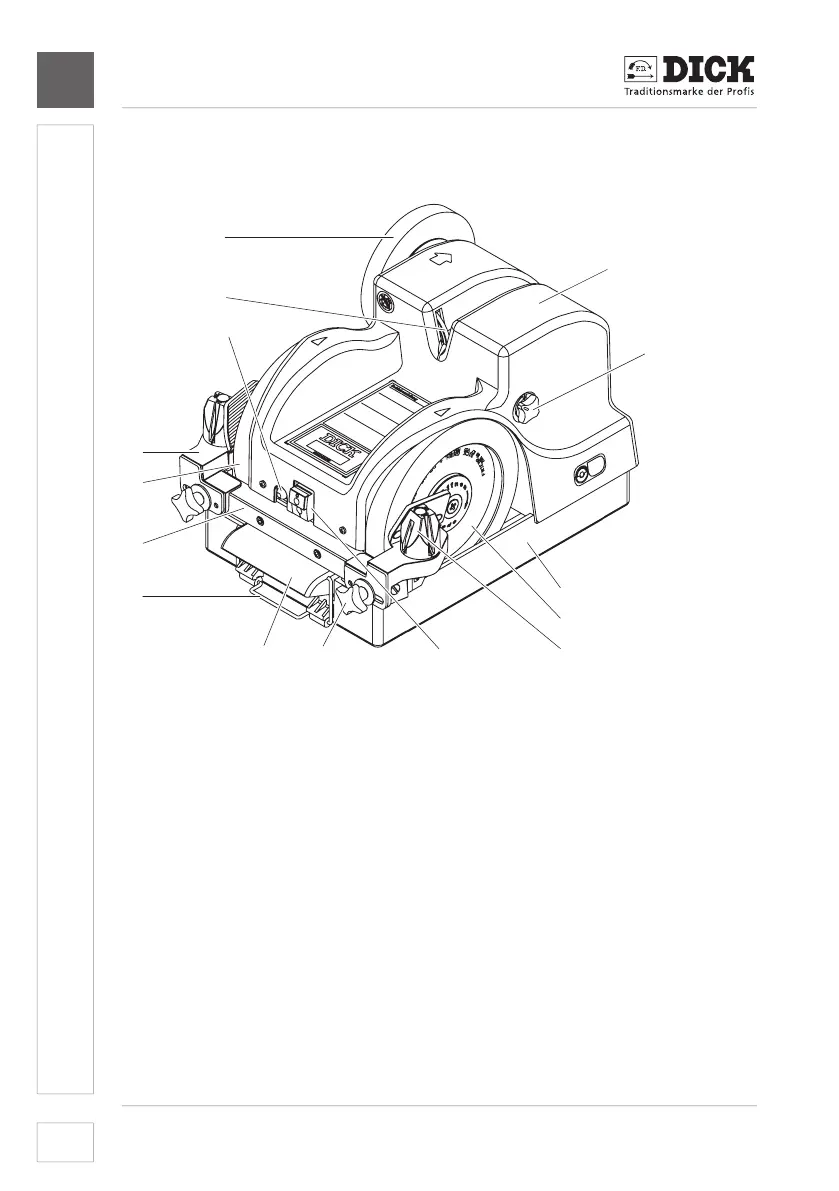

Image 2 – Design of the machine
[2-1] Grinding wheels
[2-2] Honing wheels
[2-3] Polishing wheel (only for SM-111)
[2-4] Guidance
[2-5] Knife guide
[2-6] Water tank
[2-7] Clamp
[2-8] Handles for lifting the machine
[2-9] Main switch
[2-10] Safety switch
[2-11] Angle pyramid
[2-12] Star handle screws
[2-13] Star handle to set the honing angle (only for SM-111)
[2-14] Housing
