Operating instructions, SM-110/-111
Putting the machine into operation
22
6
6.4 Adjusting the machine
CAUTION
RISK OF INJURY FROM ROTATING MACHINE PARTS
If the machine is accidentally switched on during adjustment
work, there is a risk of injury due to rotating machine parts.
➾ Disconnect the mains plug before carrying out any adjust-
ment work.
6.4.1 Adjusting the knife guides (grinding angle)
The grinding angle (overall grinding angle A) can be set to 4 different angles:
approx. 24°, 28°, 32° and 36°. Ex works, the grinding angle is set to 32°.
A
24°-36°
1
2
4
3

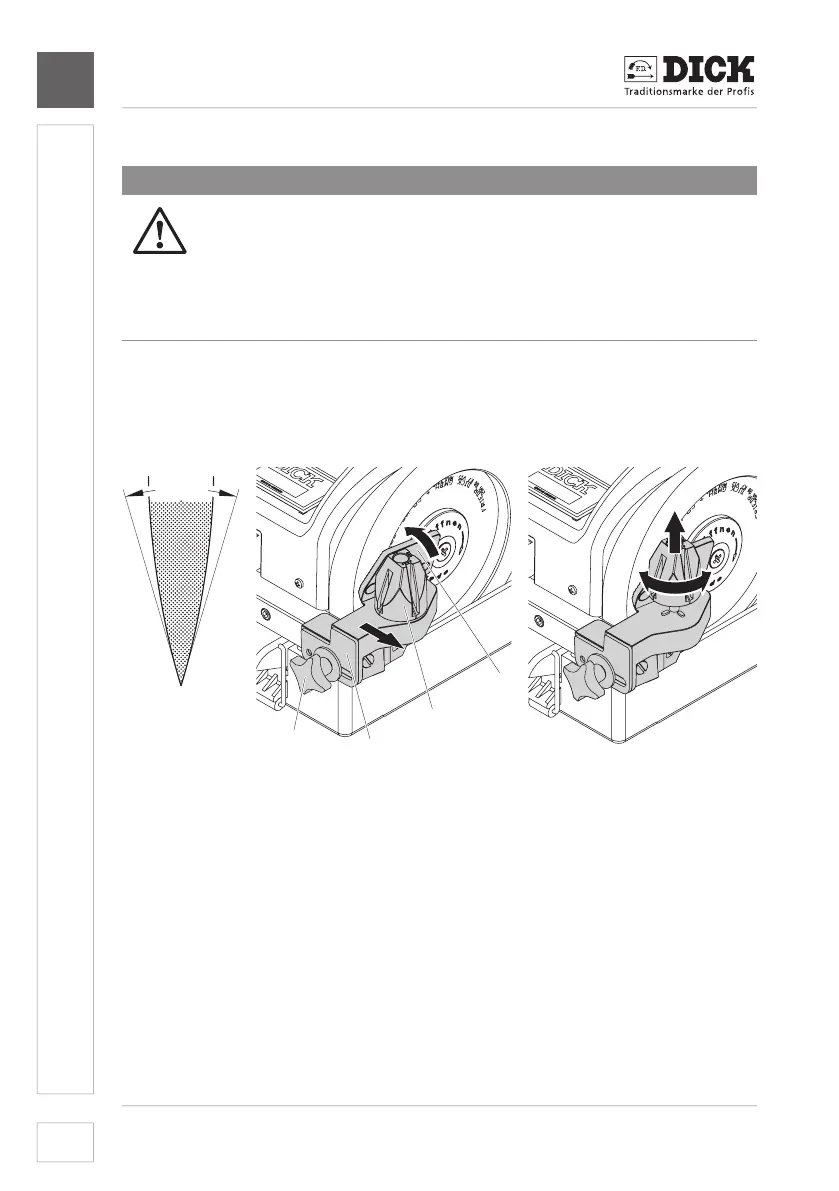

Image 5 – Adjusting the grinding angle
[5-1] Star handle screw
[5-2] Knife guide
[5-3] Contact surface
[5-4] Angle pyramid
[5-A] Overall grinding angle
1. Undo star handle screw [5-1], push knife guide [5-2] outwards until the
stop.
2. Open the contact surface [5-3] in the direction of the grinding wheel until
the spring is outside the groove of the angle pyramid [5-4].
3. Lift the angle pyramid upwards by hand and turn it to the desired grinding
