Operating instructions, SM-110/-111
Servicing and maintenance
44
8
4. Install the polishing wheel in reverse order.
5. Insert the mains plug.
6. Switch on the machine and test run it for one minute. In case of unusual
behaviour, switch off the machine immediately and check all individual
parts for proper condition and assembly.
8.8 Check and replace drive belt
If the respective wheel(s) stop during the honing or polishing process, check
the belt and replace if necessary.
8.8.1 Dismantling the housing
CAUTION
RISK OF INJURY FROM ROTATING MACHINE PARTS
If the machine is accidentally switched on during maintenance
work, there is a risk of injury due to rotating machine parts.
➾ Always pull the mains plug before carrying out any mainte-
nance work.
1. Pull the mains plug
2. SM-110: Continue with step 5
1
2
3
4
4
4
4
5
Only for SM-111
[24-1] Countersunk screws
[24-2]Flangeincl.ttingscrew
[24-3] Star handle
SM-110 and SM-111
[24-4] Screws on the end faces of
the housing
[24-5] Housing

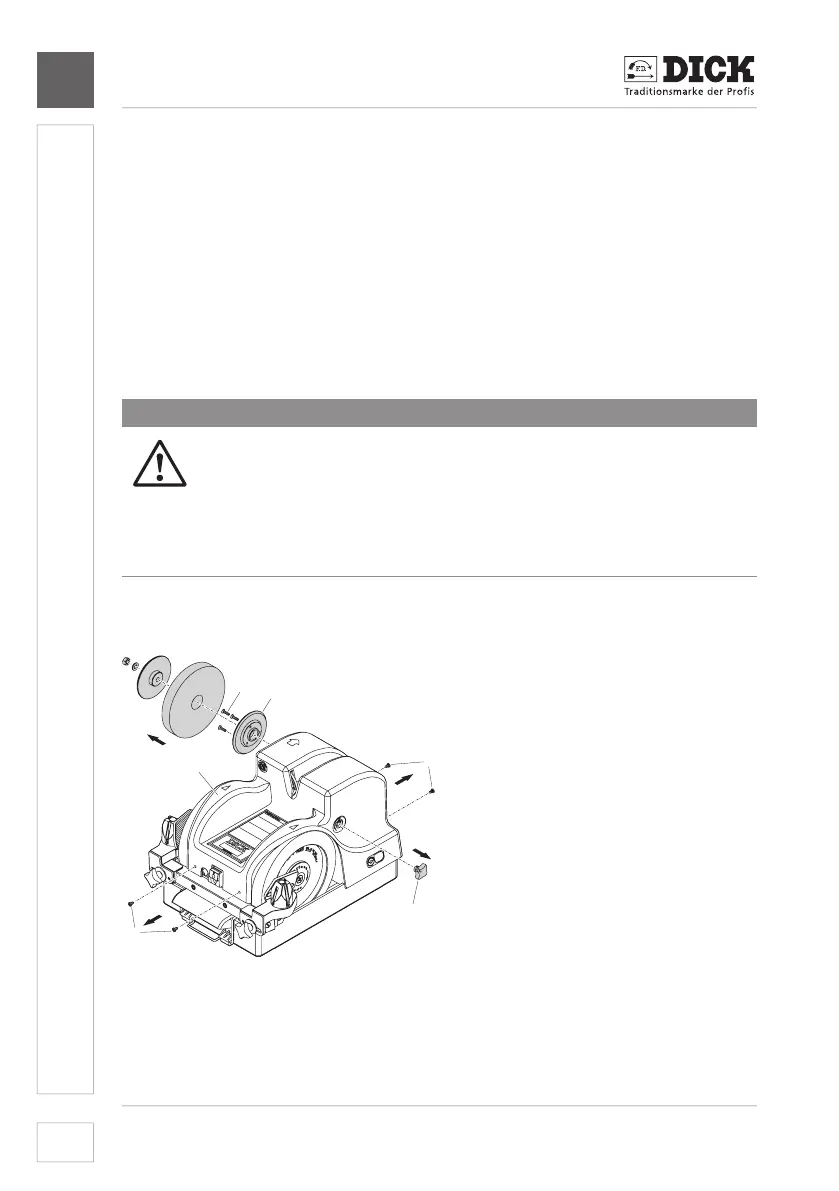

Image 24 – Dismantling the housing
Only for SM-111:
3. Remove polishing wheel (see 8.7 Replacing the polishing wheel (only for
SM-111)).
