Operating instructions, SM-110/-111
Putting the machine into operation
24
6
Using the star handle [7-1] on the right machine side, you can set the honing
angle. Turning the star handle changes the centre distance of the two honing
wheels [7-2] and thus the honing angle:
• Turn the star handle to the left = greater centre distance / smaller honing
angle
• Turn the star handle to the right = smaller centre distance / larger honing
angle
The honing angle must be greater than the grinding angle (see 6.4.1 Adjust-
ing the knife guides (grinding angle)). We recommend to hone in the normal
position of approx. 40°. At this angle, the outer diameter of the left honing
wheel touches the marking circle [8-A] of the right honing wheel.
A
[8-A] Marking circle of the right-hand
honing wheel

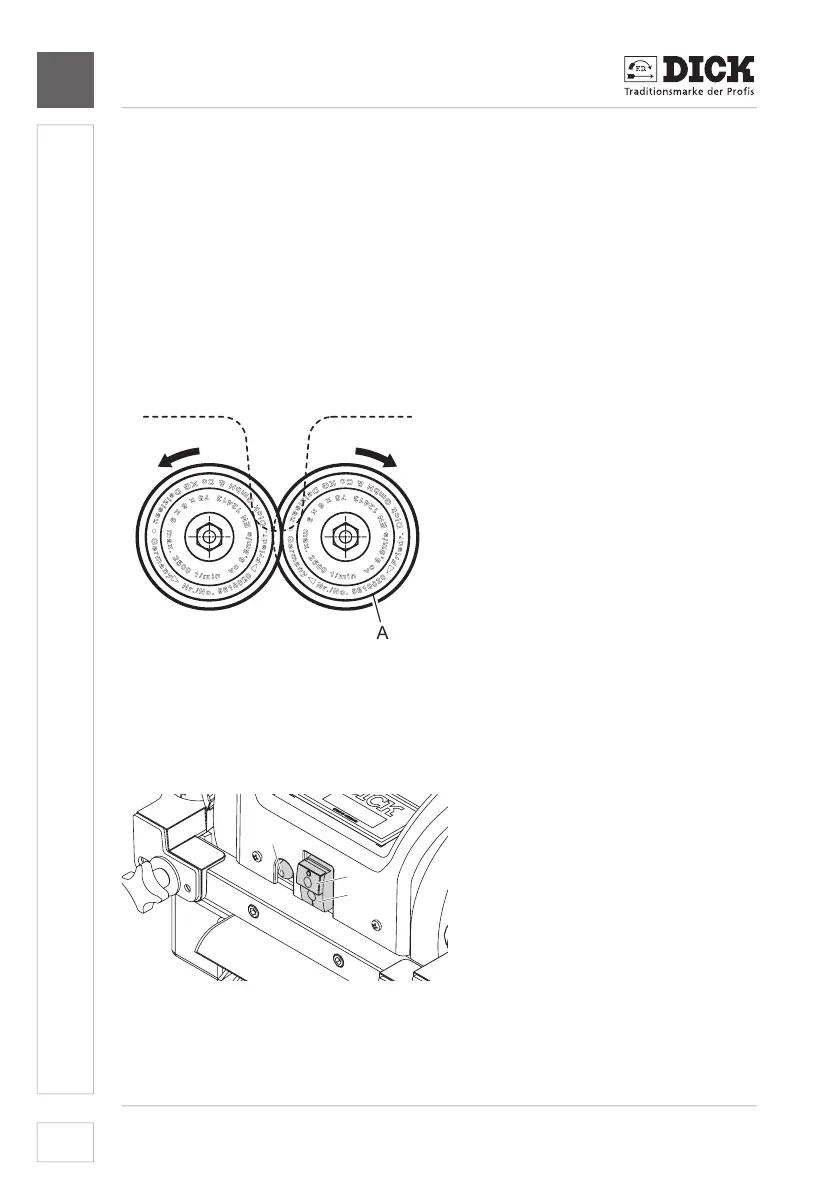

Image 8 – Honing wheel in normal position
The star handle [7-1] can be pulled off to protect against unintentional
adjustment.
6.5 Control elements on the machine
3
1
2
[9-1] Main switch off (0)
[9-2] Main switch on (I)
[9-3] Safety switch, overload
protection
Image 9 – Main switch
