Dick SM-110 - Replacing the Polishing Wheel (Only for SM-111)

Operating instructions, SM-110/-111
Servicing and maintenance
43
8
behaviour, switch off the machine immediately and check all individual
parts for proper condition and assembly.
8.7 Replacing the polishing wheel (only for SM-111)
A worn or damaged polishing wheel (e.g. breakage, nicks, severe imbalance,
severe radial runout) must be replaced.
CAUTION
RISK OF INJURY FROM ROTATING MACHINE PARTS
If the machine is accidentally switched on during maintenance
work, there is a risk of injury due to rotating machine parts.
➾ Always pull the mains plug before carrying out any mainte-
nance work.
1
2
5
2
1
3
4

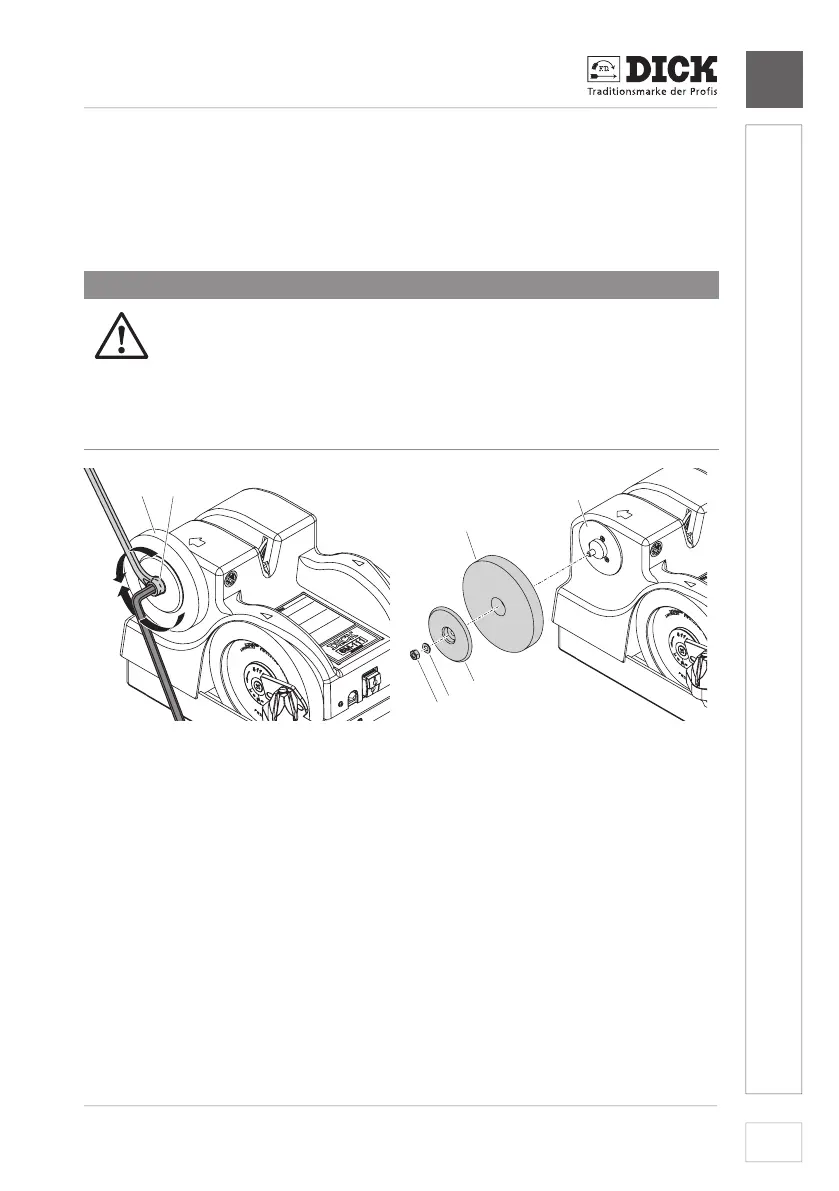

Image 23 – Changing the polishing wheel
[23-1] Nut
[23-2] Polishing wheel
[23-3] Washer
[23-4] Flange disc
[23-5] Flange
1. Remove the nut [23-1] on the polishing wheel shaft with enclosed ring
spanner size 13 in direction of rotation of the polishing wheel [23-2]. Hold
the shaft with the enclosed Allen key to prevent it from rotating.
2. Pull the washer [23-3] from the shaft and the polishing wheel [23-2] from
theange[23-5].
3. Removetheange[23-4] from the polishing wheel and press it into the
new polishing wheel.
