Dickey-John PM200 - Introduction; System Overview; Features; Performance

OPERATOR’S MANUAL
PM200, 200E and 250 Planter Monitors
11001-1444-200702
INTRODUCTION / 3
INTRODUCTION
SYSTEM OVERVIEW
The DICKEY-john PM200, PM200E, and PM250 Planter Monitors offer
features to monitor up to 12 seed or fertilizer rows and one frequency input
(shaft speed).
The monitors are compatible with DICKEY-john seed, flow, hopper level,
and speed sensors. Configuration data is stored in nonvolatile memory,
retaining information even when disconnected from power.
Several planting parameters can be monitored on the Operate Screen and
viewed in a large, easy-to-read format. Row monitoring readouts provide
constant feedback and can be viewed in a bar graph or symbol format.

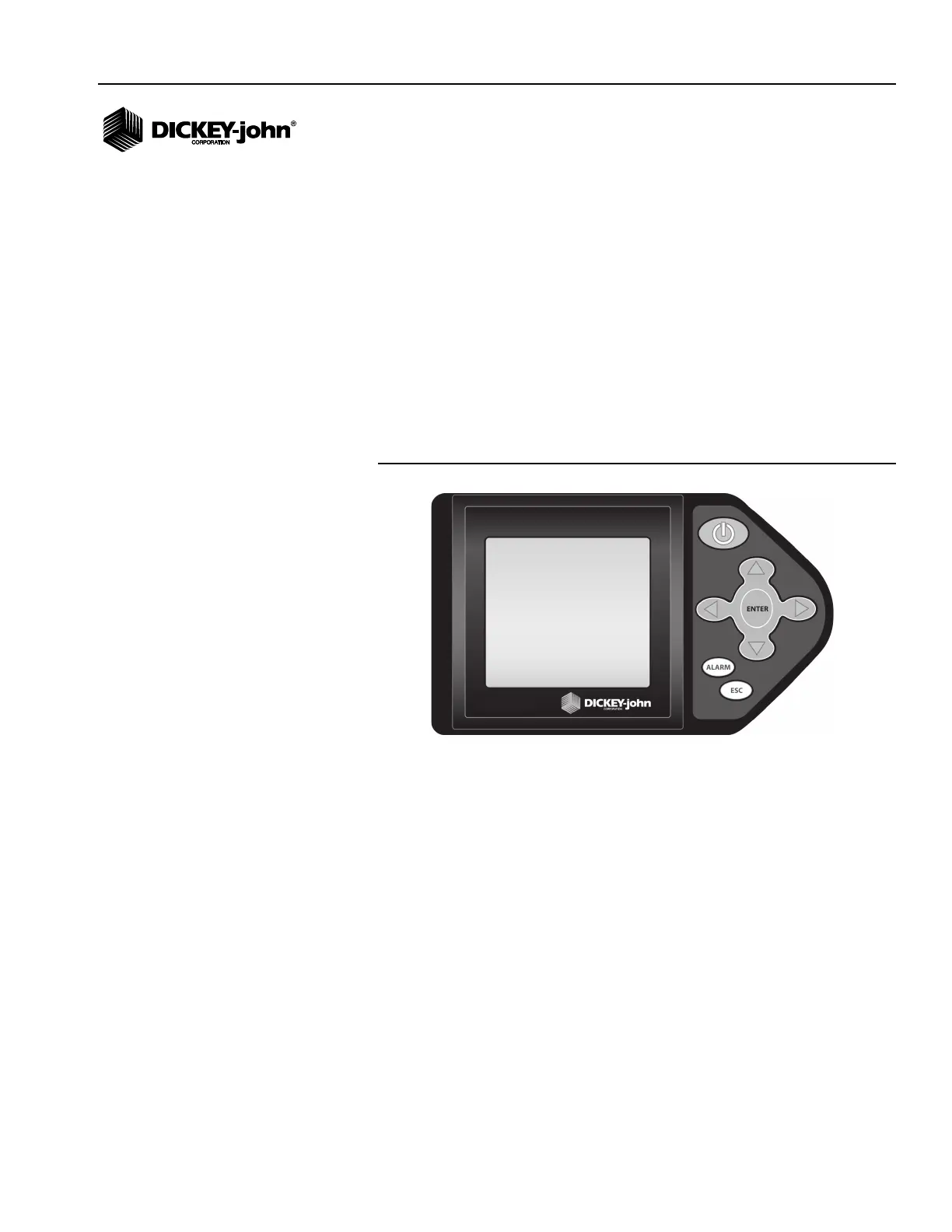

Figure 1
PM200, PM200E, and PM250 Planter Monitors
FEATURES
PERFORMANCE
• Planter monitoring of 12 rows
• Monitoring of ground speed and one shaft speed sensor
• Easy and flexible configuration
• Up and down arrow keys cycle through monitor functions:
– Population
– Field Area 1
– Field Area 2
– Total Area
– Ground Speed
–Menu
• Row status information:
–Bar Graph
– Symbols (Failure mode)
– Symbols flashing relative to seeding rates
