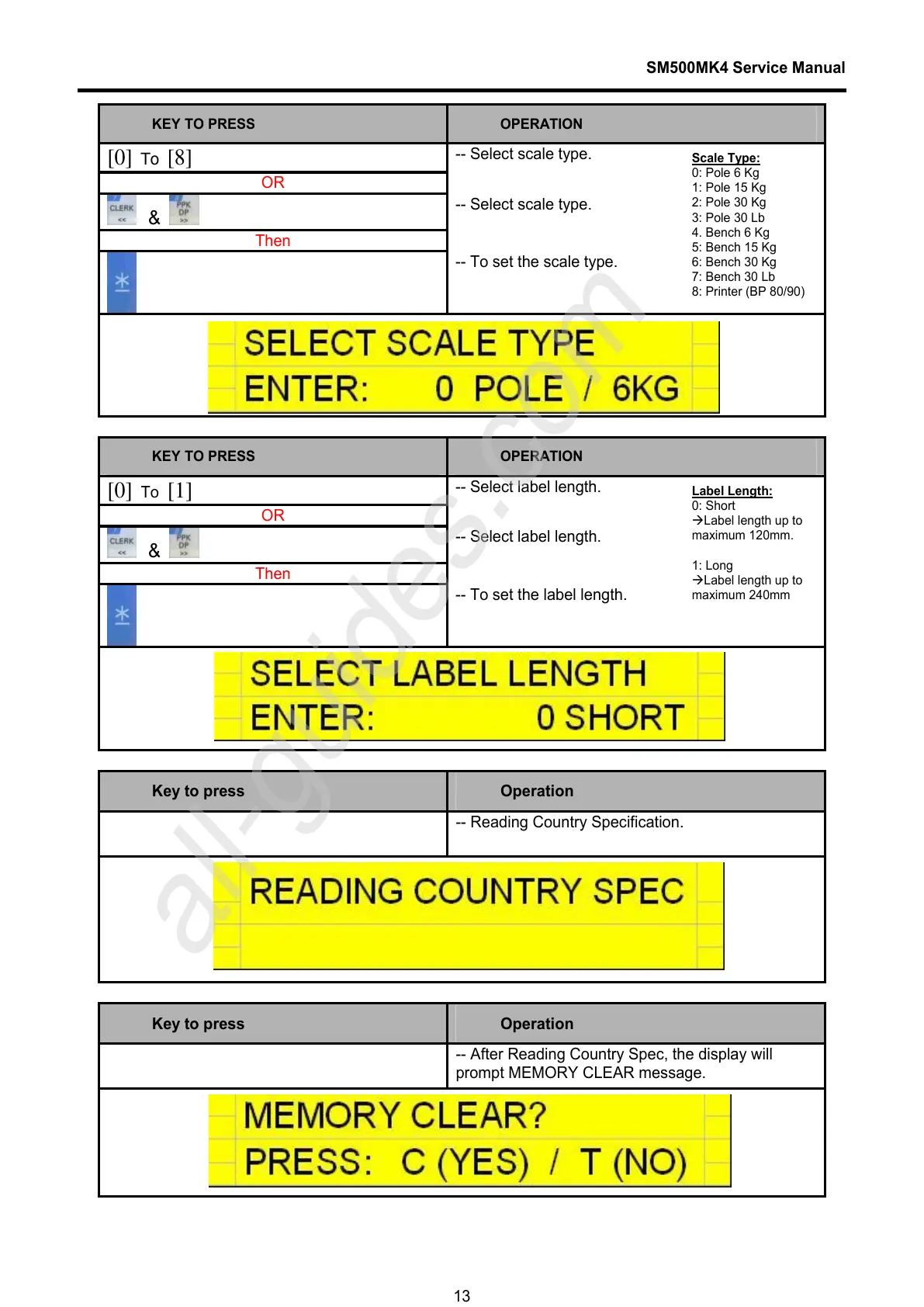

SM500MK4 Service Manual
13
KEY TO PRESS OPERATION
[0] To [8]
-- Select scale type.
OR
&
-- Select scale type.
Then
-- To set the scale type.
KEY TO PRESS OPERATION
[0] To [1]
-- Select label length.
OR
&
-- Select label length.
Then
-- To set the label length.
Key to press Operation
-- Reading Country Specification.
Key to press Operation
-- After Reading Country Spec, the display will
prompt MEMORY CLEAR message.
Scale Type:
0: Pole 6 Kg
1: Pole 15 Kg
2: Pole 30 Kg
3: Pole 30 Lb
4. Bench 6 Kg
5: Bench 15 Kg
6: Bench 30 Kg
7: Bench 30 Lb
8: Printer
(
BP 80/90
)
Label Length:
0: Short
ÆLabel length up to
maximum 120mm.
1: Long
ÆLabel length up to
maximum 240mm
