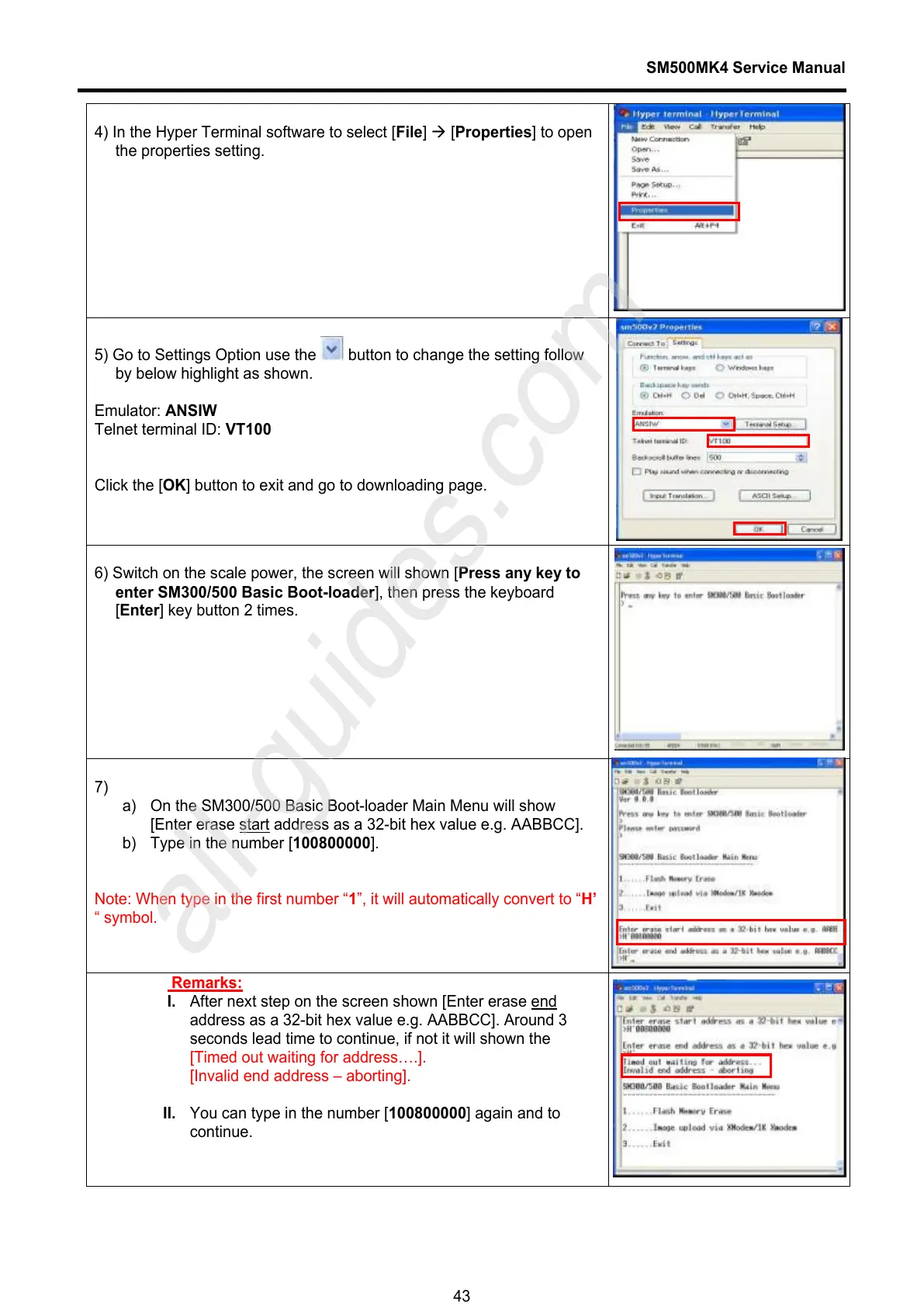

SM500MK4 Service Manual
43
4) In the Hyper Terminal software to select [File] Æ [Properties] to open
the properties setting.
5) Go to Settings Option use the
button to change the setting follow
by below highlight as shown.
Emulator: ANSIW
Telnet terminal ID: VT100
Click the [OK] button to exit and go to downloading page.
6) Switch on the scale power, the screen will shown [Press any key to
enter SM300/500 Basic Boot-loader], then press the keyboard
[Enter] key button 2 times.
7)
a) On the SM300/500 Basic Boot-loader Main Menu will show
[Enter erase start
address as a 32-bit hex value e.g. AABBCC].
b) Type in the number [100800000].
Note: When type in the first number “1”, it will automatically convert to “H’
“ symbol.
Remarks:
I. After next step on the screen shown [Enter erase end
address as a 32-bit hex value e.g. AABBCC]. Around 3
seconds lead time to continue, if not it will shown the
[Timed out waiting for address….].
[Invalid end address – aborting].
II. You can type in the number [100800000] again and to
continue.
