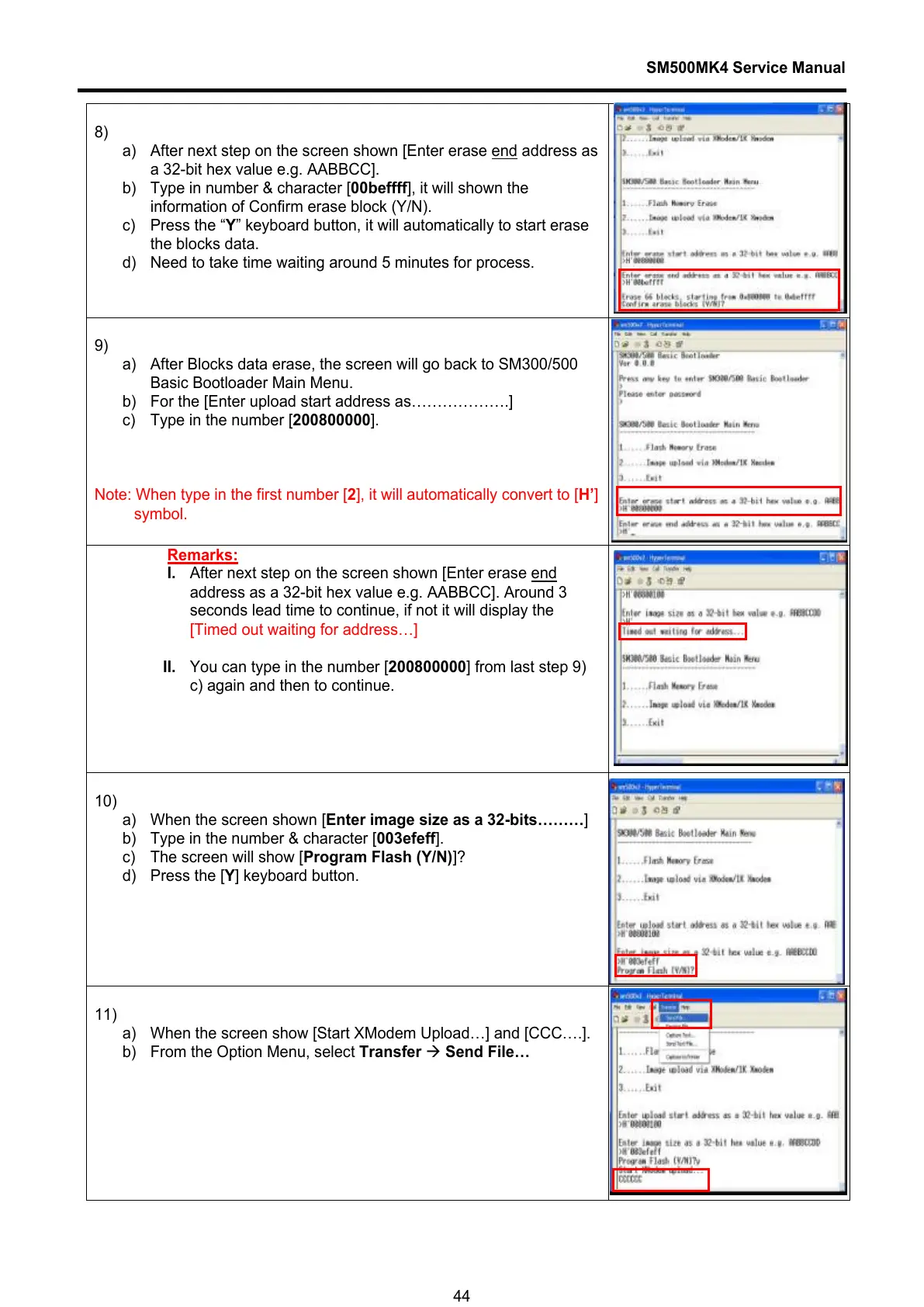

SM500MK4 Service Manual
44
8)
a) After next step on the screen shown [Enter erase end
address as
a 32-bit hex value e.g. AABBCC].
b) Type in number & character [00beffff], it will shown the
information of Confirm erase block (Y/N).
c) Press the “Y” keyboard button, it will automatically to start erase
the blocks data.
d) Need to take time waiting around 5 minutes for process.
9)
a) After Blocks data erase, the screen will go back to SM300/500
Basic Bootloader Main Menu.
b) For the [Enter upload start address as……………….]
c) Type in the number [200800000].
Note: When type in the first number [2], it will automatically convert to [H’]
symbol.
Remarks:
I. After next step on the screen shown [Enter erase end
address as a 32-bit hex value e.g. AABBCC]. Around 3
seconds lead time to continue, if not it will display the
[Timed out waiting for address…]
II. You can type in the number [200800000] from last step 9)
c) again and then to continue.
10)
a) When the screen shown [Enter image size as a 32-bits………]
b) Type in the number & character [003efeff].
c) The screen will show [Program Flash (Y/N)]?
d) Press the [Y] keyboard button.
11)
a) When the screen show [Start XModem Upload…] and [CCC….].
b) From the Option Menu, select Transfer Æ Send File…
To Next Page
